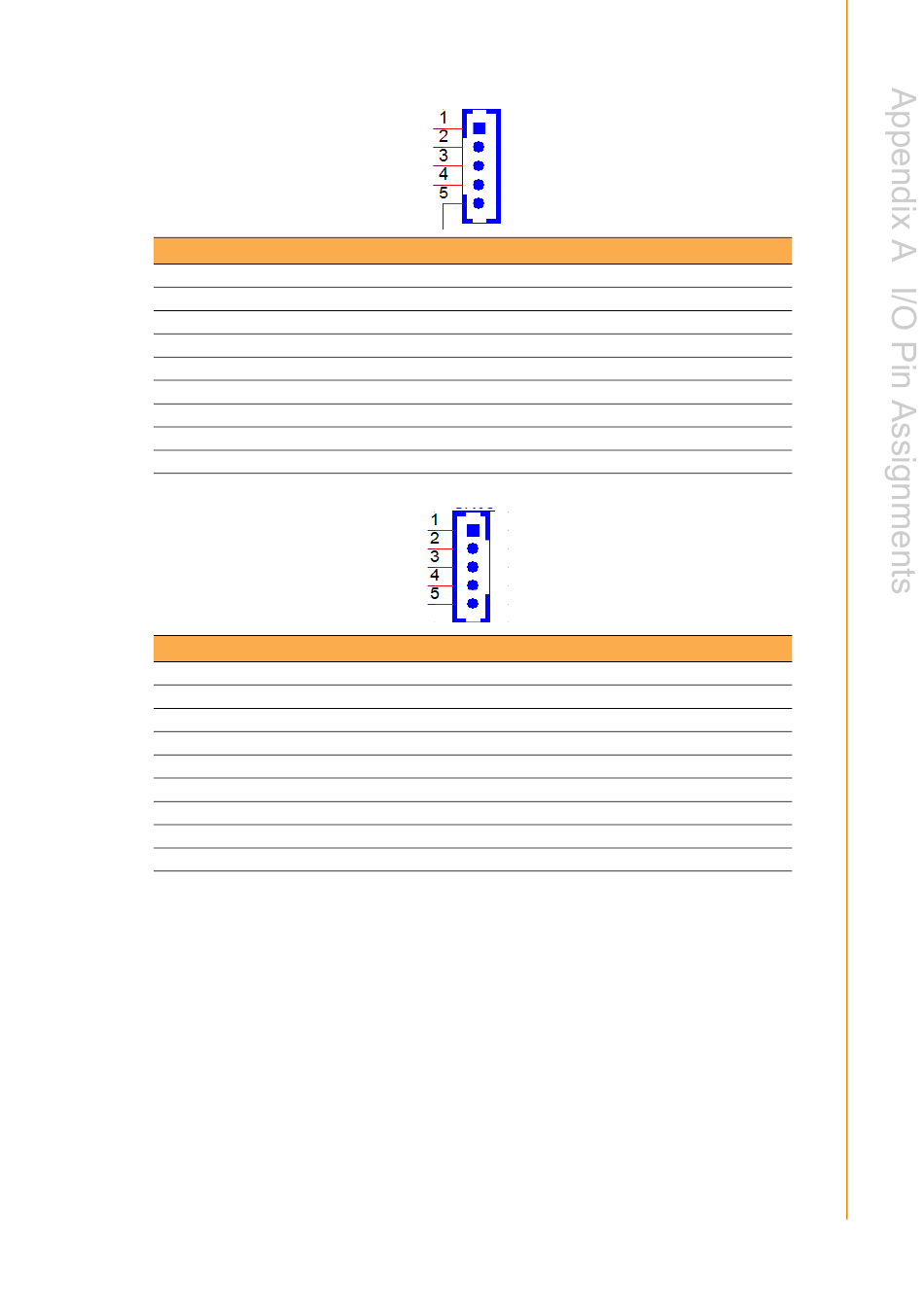

Table A.3: CN3(D):Internal USB
Part Number
1655000453
Footprint
WHL5V-2M-24W1140
Description
WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin
Pin name
1
+5V
2
D-
3
D+
4
GND
5
GND
Table A.4: CN38(H),CN39(H):Internal USB
Part Number
1655305020
Footprint
WHL5V-2M
Description
WAFER BOX 2.0mm 5P 180D(M) DIP A2001WV2-5P
Pin
Pin name
1
+5V
2
D-
3
D+
4
GND
5
GND
35
