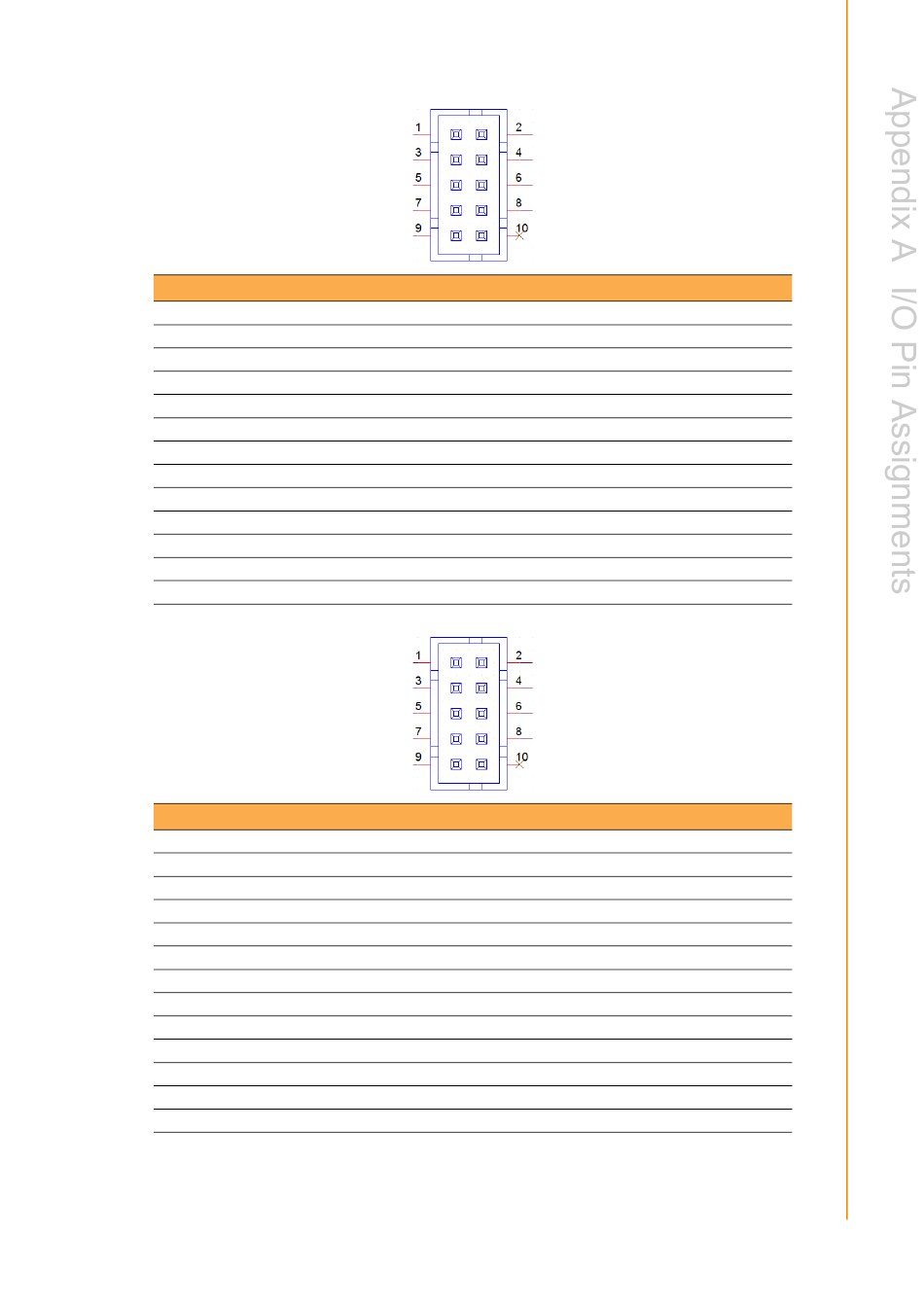

Table A.31: CN11(E): CSAFE
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 LINE_IN1_L
2 LINIE_IN1_R
3 COM3_ RX+
4 COM3_TX
5 V_CSAFE
6 COM3_CTS#
7 GND
8 GND
9
Table A.32: CN16(D),CN13(E),CN14(F),CN11(G),CN44(HI): COM2
Part Number 1655000197
Footprint WF_5x2P_79_BOX_D_P1R
Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal
Pin Pin name
1 422/485 TX-
2 422/485 TX+
3 422 RX+
4 422 RX-
5 GND
6 DSR#
7 RTS#
8 CTS#
9 RI#
