Table A.55: CN26(D): External USB
7 GND
8 TX_D-
9 TX_D+
10 +5VSB
11 D1-
12 D1+
13 GND

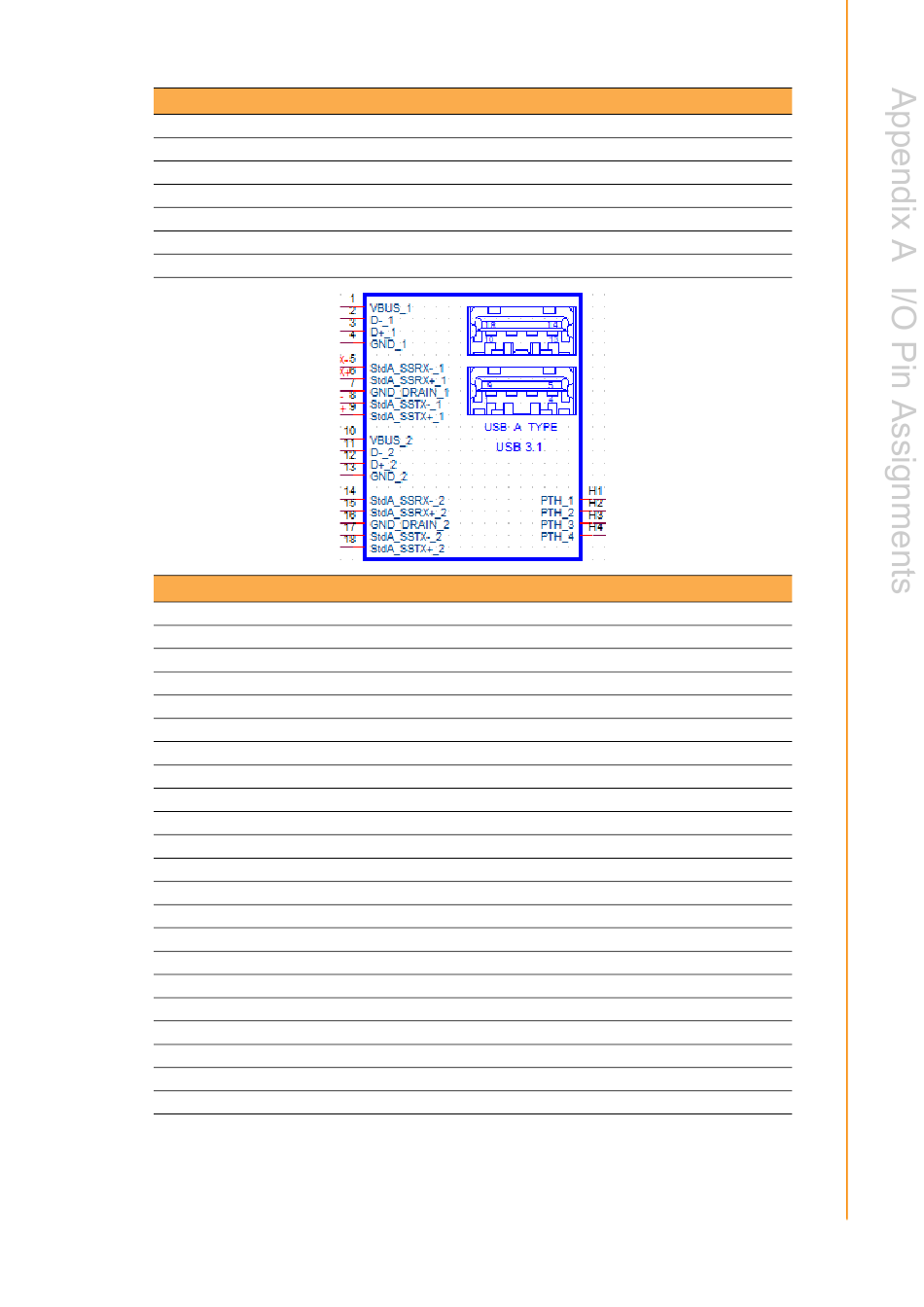

Table A.56: CN170(HI),CN169(HI),CN43(H): External USB
Part Number 1654013480-01
Footprint USB_9x2P_USB5-18F5-BNR0-10
Description USB 3.1 2x9P/2.0mm/PA66/(F)/RA/G30u/D/BU/H15.69
Pin Pin name
1 +5V
2 D5-
3 D5+
4 GND
5 RX-
6 RX+
7 GND
8 TX-
9 TX+
10 +5V
11 D6-
12 D6+
13 GND
14 RX-
15 RX+
16 GND
17 TX-
18 TX+
