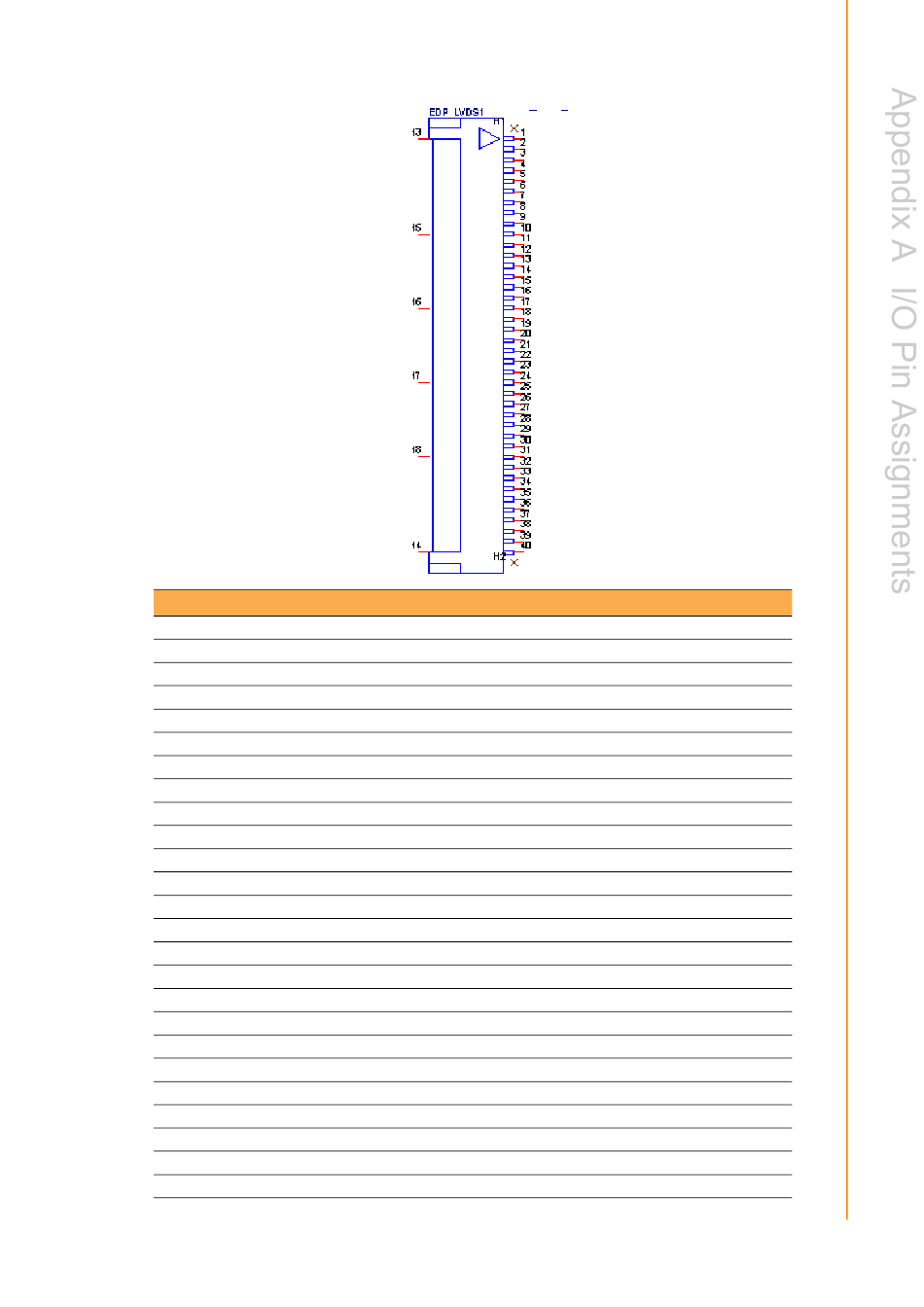

Table A.12: EDP-LVDS1(K):EDP_LVDS
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1655005099-01
LVDS_40P_50203-04001-001
LVDS Conn. 40P 0.5mm 90D(F) SMD 50203-04001-001
Pin name
LVDS0_z_D3+
LVDS0_z_D3-
LVDS0_z_D2+ eDP_TX0P (eDP bypass mode: eDP_TX0P)
LVDS0_z_D2- eDP_TX0N (eDP bypass mode: eDP_TX0N)
LVDS0_z_D1+ eDP_TX1P (eDP bypass mode: eDP_TX1P)
LVDS0_z_D1- eDP_TX1N (eDP bypass mode: eDP_TX1N)
LVDS0_z_D0+ (eDP Bypass Mode: eDP_HPD)
LVDS0_z_D0-
LVDS1_z_D3+
LVDS1_z_D3-
LVDS1_z_D2+
LVDS1_z_D2-
LVDS1_z_D1+
LVDS1_z_D1-
LVDS1_z_D0+
LVDS1_z_D0-
(EDID GND)
+VDD_LCD
+VDD_LCD
+VDD_LCD
VDD5V_PWR_SEL
