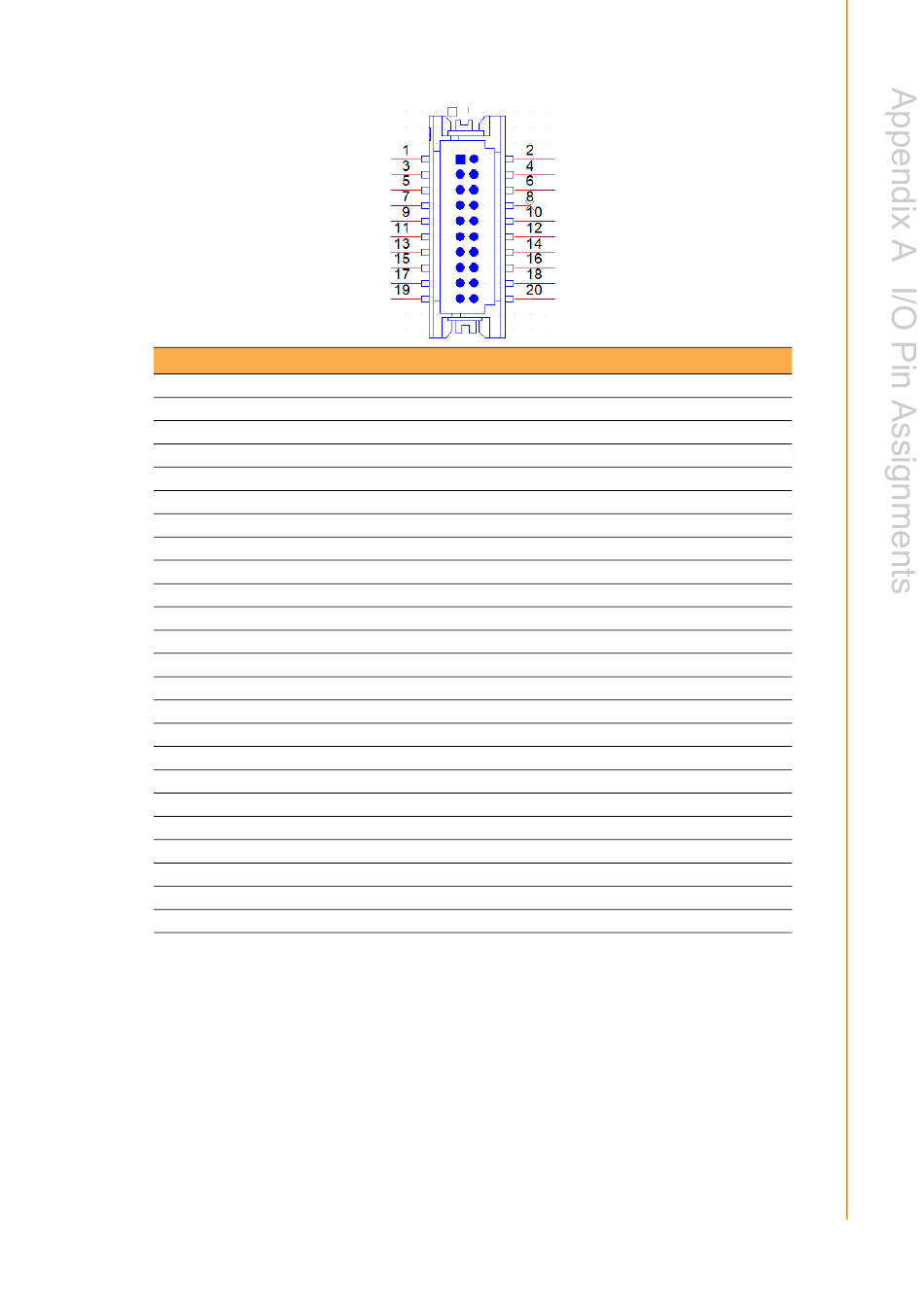

Table A.13: CN3(G) eDP
Part Number
1653006914-01
Footprint
WB10x2P-S1.25
Description
WTB 2x10P 1.25mm 180D(M) SMD W/P DF13E-20DP-1.25
Pin
Pin name
1
+5V_LCD
2
+5V_LCD
3
TXN0
4
GND
5
TXP0
6
TXN3
7
GND
8
TXP3
9
TXN1
10
GND
11
TXP1
12
AUX-
13
GND
14
AUX+
15
TXN2
16
GND
17
TXP2
18
HPD
19
+V3.3_LCD
20
+V3.3_LCD
47
UTC-320 User Manual
