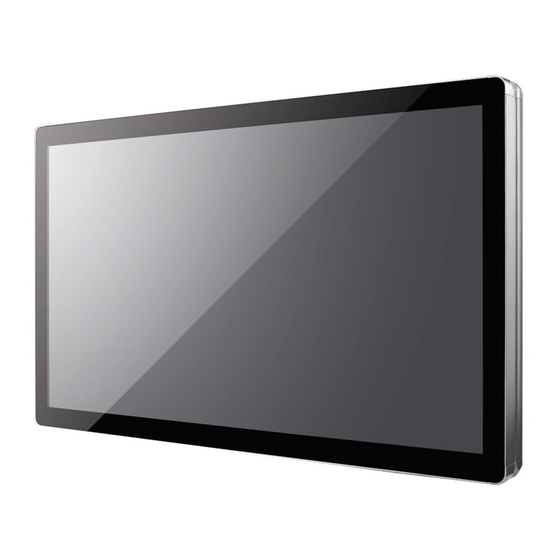

10.1”/15.6”/21.5”/32”/42.5” ubiquitous touch computer
Hide thumbs Also See for UTC-510:

Advertisement

Quick Links

User Manual
UTC-510/515/520/532/542
10.1"/15.6"/21.5"/32"/42.5"
Ubiquitous Touch Computer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC-510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech UTC-510

  • Page 1 User Manual UTC-510/515/520/532/542 10.1”/15.6”/21.5”/32”/42.5” Ubiquitous Touch Computer...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: – Product name and serial number –...
  • Page 4 Contact information Manufacturer Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei, Taiwan 114, R.O.C. TEL: (02) 2792-7818 EU Distributor Advantech Europe GmbH Kolberger Straß e 7 D-40599 Düsseldorf, Germany Tel: 49-211-97477350 Fax: 49-211-97477300 UTC-510/515/520/532/542 User Manual...
  • Page 5 In accordance with the IEC 704-1:1982 specifications, the sound pressure level at the operator position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. UTC-510/515/520/532/542 User Manual...
  • Page 6 The computer is equipped with a battery-powered real-time clock circuit. There is a danger of explosion if the battery is incorrectly replaced. Replace only with same or equivalent type as recommended by the manufacturer. Discard used batteries according to the manufac- turer’s instructions. UTC-510/515/520/532/542 User Manual...
  • Page 7: Table Of Contents

    Contents Chapter General Information ......1 Introduction ....................2 Specifications.................... 2 1.2.1 UTC-510 ..................2 1.2.2 UTC-510 (PoE) ................4 1.2.3 UTC-515D/F.................. 5 1.2.4 UTC-515G..................6 1.2.5 UTC-515H..................8 1.2.6 UTC-515I/J..................9 1.2.7 UTC-520D/F................11 1.2.8 UTC-520G................... 12 1.2.9 UTC-520H................... 14 1.2.10 UTC-520I/J..................
  • Page 8 Installing an SSD Module for UTC-510........... 43 3.9.1 UTC-510 ..................43 3.9.2 UTC-510 (PoE) ................43 3.10 Installing an mSATA SSD Module for UTC-510 ........44 3.10.1 UTC-510 ..................44 3.10.2 UTC-510 (PoE)................44 3.11 Installing a Wi-Fi Module for UTC-510........... 45 3.11.1 UTC-510 ..................
  • Page 9 UTC-510P-B.................... 60 B.9.1 Packing List................. 61 B.9.2 Ordering Information..............61 B.10 UTC-510P-M01E..................61 B.10.1 Packing List................. 61 B.10.2 Ordering Information..............62 Appendix C Touchscreen Options......63 Touchscreen Options ................64 UTC-510/515/520/532/542 User Manual...
  • Page 10 UTC-510/515/520/532/542 User Manual...
  • Page 11: Chapter 1 General Information

    Chapter General Information...
  • Page 12: Introduction

    Introduction Advantech’s UTC-500 series products are 10.1”, 15.6”, 21.5”, 32”, and 42.5” fanless, low-power, all-in-one touch panel computers suitable for use as control room comput- ing devices, production line industrial digital signage, showroom interactive signage, self-service kiosks, and public service terminals that support diverse digital retail, hospitality, healthcare, education, entertainment, and information processing applica- tions.
  • Page 13 Max. Color 16.7M LCD Panel Pixel Pitch 169.5 x 169.5 um Brightness 350 cd/m ViewingAngle 170°/170° Camera 5 megapixel (optional) Type Glass panel with projected capacitive touch Touch- Light 80% ± 5%/90% screen Transmission (PE/GE) Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 14: Utc-510 (Poe)

    1.2.2 UTC-510 (PoE) ® ® ® ® Intel Celeron N2807 Intel Celeron J1900 (UTC-510D) (UTC-510D) Base 2 GHz (quad-core) 1.58 GHz (dual-core) Frequency Cache L2 cache 1 MB L2 cache 2 MB 1 x SODIMM DDR3L 1333 MHz, 1 x SODIMM DDR3L 1333...
  • Page 15: Utc-515D/F

    389.81 x 240.12 x 45.20 mm (15.34 x 9.45 x 1.77 in) (W x H x D) System Weight 4.85 kg (10.67 Ib) Windows 10 IoT Enterprise Windows 10 IoT Enterprise Linux Ubuntu 14.04, OS Support Linux Ubuntu 20.04 Android 6 UTC-510/515/520/532/542 User Manual...
  • Page 16: Utc-515G

    2 x USB 2.0 / 2 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA 1 x HDMI 1 x AudioLine-Out 1 x Mic-In Stereo Speaker 2 x 1W 1 x Full-size MiniPCIe/mSATA Bus Expansion 1 x M.2 E-key 2230 UTC-510/515/520/532/542 User Manual...
  • Page 17 252 x 252 um LCD Panel Brightness 400 cd/m Viewing Angle 170°/160° Camera 5 megapixel (optional) Glass panel with projected capacitive/5-wire analog resistive Type touch Touchscreen Light 90% ± 2%/80% ± 5%/90% (PE/RE/GE) Transmission Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 18: Utc-515H

    Size/Type 15.6" TFT LCD with LED backlight Max. Resolution 1366 x 768 (FHD 1920 x 1080 Optional) Max. Color 16.7M LCD Display Pixel Pitch (um) 252 (H) x 252 (V) Brightness 400 nits (cd/m Viewing Angle 178°/178° UTC-510/515/520/532/542 User Manual...
  • Page 19: Utc-515I/J

    Weight 4.85 kg (10.67 Ib) Watchdog Timer 65536 intervals, 0 ~ 65535 sec Programmable 1 ~ 255 sec/min Board Features TPM2.0 (SLB9670XQ2.0) TPM2.0 Operating Windows 10 IoT Enterprise, Win 10 IoT/Win 11 IoT Systems Linux Ubuntu 20.04 UTC-510/515/520/532/542 User Manual...
  • Page 20 LCD Display Pixel Pitch (H x V) 248.25 x 248.25 Brightness 400 nits Viewing Angle 170°/160° Type Projected capacitive, Single point Analog Resistive 5-wirestouch Light Touchscreen 88% ± 2%, 80% ± 3% Transmission (PE/RE/GE) Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 21: Utc-520D/F

    CE (No RED certification) (EN 61000-6-2: 2005/AC: 2005), FCC, EMC/Safety CB, UL, CCC, BSMI Front Panel IP65/NEMA4 compliant Protection Input Rating 12 V/7A (84W ITE adapter) 12 V/7A (84W ITE adapter) Power Supply Power Typical 45W Max. 65W Typical 45W Max. 65W Consumption UTC-510/515/520/532/542 User Manual...
  • Page 22: Utc-520G

    VESA 100 x 100 mm Dimensions 517.64 x 313.51 x 43.50 mm (20.37 x 12.34 x 1.71 in) (W x H x D) Weight 8 kg (17.6 lb) Win 10 IoT Enterprise OS Support Android 10 Linux Ubuntu 20.04 UTC-510/515/520/532/542 User Manual...
  • Page 23 16.7M LCD Panel Pixel Pitch 248.25 (H) x 248.25 (V) Brightness 250 cd/m (400 cd/m optional) Viewing Angle 178°/178° Type Projected Capacitive. Analog Resistive5-wires Light Touchscreen 88% ± 2%, 80% ± 3% Transmission (PE/RE/GE) Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 24: Utc-520H

    60068-2-27 CE (RED Compliance), EN 61000-6-2: 2005 /AC: 2005, FCC, Certification UL, CB, CCC, BSMI Front Panel IP65 rated/NEMA4 compliant Protection Input Rating 12~24V, 7 A (84W ITE adapter) Power Supply Power Typical 40W Consumption Max. 50W UTC-510/515/520/532/542 User Manual...
  • Page 25: Utc-520I/J

    1x M-Key support SATA M.2 Gen.4 for PCIe SSD), optional 2242 module SATA Mount Options VESA 100 x 100 mm Dimensions 517.6 x 313.51 x 43.5 mm Mechanical (W x H x D) Weight 8 kg (17.6 lb) UTC-510/515/520/532/542 User Manual...
  • Page 26 248.25 x 248.25 (H x V) Brightness 250 nits (400 nits optional) Viewing Angle 178°/178° Type Projected capacitive, Single point Analog Resistive 5-wires touch Light Touchscreen 88% ± 2%, 80% ± 3% Transmission (PE/RE) Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 27: Utc-532A/C

    Shock HDD; 2Grms @with SSD, follow IEC 60069-2-64 CE, FCC, UL, CB, CCC, BSMI Front Panel IP65/NEMA4 compliant Protection 100 ~ 240 V 50/60 Hz 2.5 A Input Rating Power Supply Power Typical 95W Consumption Max. 105W UTC-510/515/520/532/542 User Manual...
  • Page 28: Utc-532E/F/G

    Stereo Speaker 3 W x 2 1 x Full-size mini 1 x Full-size mini PCIe/mSATA Expansion PCIe/M.2 Dimensions 764.5 x 459 x 62.5 mm (30 x 18 x 2.46 in) (W x H x D) Weight 18 kg (39.6 lb) UTC-510/515/520/532/542 User Manual...
  • Page 29 16.7 M LCD Panel Pixel Pitch 0.36375 x 0.36375 mm Brightness 300 cd/m Viewing Angle 178°/178° Glass panel with projected capacitive touch/glass panel with no Type touch function Touchscreen (PE/ Light 90% ± 2%/90% Transmission Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 30: Utc-542D/F/G

    Windows Embedded OS Support Windows Embedded Android 6.0** 8.1 Industry Pro 64 bit 8.1 Industry Pro 64bit Linux Ubuntu 17.04 Windows 10 IoT Enter- Windows 10 IoT Enter- prise prise Linux Ubuntu 16.04 Linux Ubuntu 16.04 Android 4.4.2** UTC-510/515/520/532/542 User Manual...
  • Page 31 Light Touchscreen Transmissio >90% (pure glass); >25% (mirror coated) (PE/GE) Controller USB interface * Mirrored PCAP touchscreen available upon request. ** Only UTC-542D and UTC-542G models support Android OS. UTC-510/515/520/532/542 User Manual...
  • Page 32 2 x Gigabit Ethernet (RJ-45) (M12 waterproof connector) Stere 2 x 10W Spea 1 x Full-size mini PCIe/mSATA Expansi Dimensio 540 x 336 x 70 mm ns (W x H x D) Weight 10.5kg Windows 10 IoT Enter- prise OS Support UTC-510/515/520/532/542 User Manual...
  • Page 33 Brightness 250 cd/m Viewing 178°/178° Angle Glass panel with projected capacitive touch/mirrored glass panel with Type no touch function/mirrored glass panel with projected capacitive touch* Light Touchscreen Transmissio >90% (pure glass); >25% (mirror coated) (PE/GE) Controller USB interface UTC-510/515/520/532/542 User Manual...
  • Page 34: Dimensions

    260.44 5.40 27.30 RUBBERRing VESA Screw hole VESA Screw hole M4x6mm Depth M4x6mm Depth Unit:mm 252.0 252.0 40.1 40.1 265.4 260.4 27.3 Cut out 75.0 75.0 75x75 VESAM4 screw hole 75x75 VESAM4 screwhole 7mm depth 7mm depth UTC-510/515/520/532/542 User Manual...
  • Page 35: Utc-515 D/F/G/H

    1.3.2 UTC-515 D/F/G/H Dimensions: 390 x 240 x 45 mm (15.35 x 9.44 x 1.77 in) VESAHole 139.91 M4 depth=5mm 389.81 VESA Mount: 100 x 100 mm (3.93 x 3.93in) VESA Hole 139.91 M4 depth=5mm UTC-510/515/520/532/542 User Manual...
  • Page 36: Utc-515I/J

    1.3.3 UTC-515I/J Unit: mm 389.81 VESA Hole 139.91 M4 depth=5mm 1.3.4 UTC-520 D/F/G/H Unit:mm 308.82 208.82 517.64 132.17 VESAHole M4 Depth=5mm 43.50 517.64 1.3.5 UTC-520I/J Unit: mm VESA Hole M4 depth=5mm 457.02 308.82 208.82 517.64 60.62 43.50 UTC-510/515/520/532/542 User Manual...
  • Page 37: Utc-532

    785.64 62.50 VESA Mounting: 200 x 200 mm (7.87 x 7.87 in) 292.82 VESAHole M6 depth=10mm Dimensions: 765 x 459 x 63 mm (30.11 x 18.07 x 2.48 in) Applies to the following models: UTC-532GP-ATB0E UTC-532FP-ATB0E UTC-532EP-ATB0E UTC-510/515/520/532/542 User Manual...
  • Page 38: Utc-542

    1.3.7 UTC-542 Unit:mm Mirror Pcap 60.50 1016.86 60.20 990.58 34.30 898.22 59.33 898.22 46.19 508.43 495.29 100 100 100 100 UTC-510/515/520/532/542 User Manual...
  • Page 39: Utc-520F/G/I/J

    1.3.6 UTC-520 F/G/I/J Dimensions: 540 x 336 x 70 mm Applies to the following models: UTC-520 F/G/I/JT-ATB0E UTC-510/515/520/532/542 User Manual...
  • Page 40: System Setup

    Chapter System Setup...
  • Page 41: Quick Tour

    ® Gorilla Glass panel with projected capacitive touch control. See Appendix C for additional details. Resistive touch control is not available for the UTC-510/532/542 devices. 2.1.2 Rear View Note! Use only VESA-compatible floor, stand, and wall mount kits. See Appendix A for additional details. Refer to Section 2.2 for information regarding the system I/O, according to the specific UTC model.
  • Page 42: Side View

    2.1.3 Side View Side grooves Note! The UTC-500 series devices (excluding the UTC-510/542 models) fea- ture unique side grooves for easy integration of peripherals using two screws. Refer to Section 3.6 for installation information. 2.2 I/O Ports 2.2.1 UTC-510 A. DC power jack F.
  • Page 43 E. USB 3.0 (DC version only) K. Power switch F. HDMI With the standard UTC-510 PoE model, users are recommended to avoid using the USB 2.0 (A) and USB 3.0 (E) ports. To change the configuration, the total power input must be under 25.5 W.
  • Page 44: Utc-515I

    J. 2 x LAN D. COM3 (UTC-520A/B only) K. CFast (UTC-520A/B only) E. COM2 L. DC input F. COM1 M. Power switch G. 4 x USB 2.0 (1 x USB 3.0 for UTC-520D; 2 x USB 3.0 for UTC-520C/E) UTC-510/515/520/532/542 User Manual...
  • Page 45: Utc-520I

    B. 4 x USB 2.0 G. Line-Out (1 x USB 3.0 for UTC-532D; H. Mic-In 2 x USB 3.0 for UTC-532C/E) I. COM3 (UTC-532A only) J. COM2 C. HDMI K.COM1 D. VGA L. AC input E. 2 x LAN UTC-510/515/520/532/542 User Manual...
  • Page 46: Utc-542

    H. 1 x USB 3.0, 3 x USB 2.0 (UTC-542D) C. 2 x COM USB 3.0 x 2, USB 2.0 x 2 (UTC-542F) D. Mic-In/Line-Out I. AC power E. 2 x LAN J. Antenna connector F. VGA 2.2.11 UTC-520 F/G/I/J UTC-510/515/520/532/542 User Manual...
  • Page 47: Setup Procedures

    Setup Procedures System Power On For the UTC-510 model, connect the system to a power adaptor with 12V/3A input voltage. For the UTC-515 and UTC-520A/B/C/D/E models, a 12V/5A power adaptor. For the UTC-520C/E models, a 12V/7A power adaptor. For the UTC-532/542 models, connect the system to an AC power cable.
  • Page 48: Chapter 3 Upgrades And Installation

    Chapter Upgrades and Installation...
  • Page 49: Introduction

    Introduction Advantech’s UTC series systems are PC-based computers housed in an aluminum enclosure. To perform system maintenance or hardware upgrades, such as installing an HDD, DRAM, or CompactFlash (A/B models only), simply remove the unit’s rear cover. Warning! Do not remove the rear cover until you have verified that power is not flowing within the device.
  • Page 50: Utc-515.520D/F/G/H, Utc-532.542

    3.2.1 UTC-515.520D/F/G/H, UTC-532.542 3.2.2 UTC-515.520I/J UTC-510/515/520/532/542 User Manual...
  • Page 51: Installing A Cfast Card (A/B Models Only)

    Connect SATA HDD cable and power cable from 2.5" storage to MB. Replace HDD cover and tighten up screws. 3.3 Installing a CFAST Card (A/B Models Only) The image below illustrates the process for installing a CFAST card. (Note the direc- tion of the CFAST card during assembly). UTC-510/515/520/532/542 User Manual...
  • Page 52: Installing A Memory Module

    If the motherboard is removed from the chassis and the cables detached and reattached, Pin 1 of the header can be located by aligning the red side of the ribbon cable to the edge indicated by a small triangle marking on the PCB. UTC-510/515/520/532/542 User Manual...
  • Page 53: Installing Peripherals (Optional)

    Installing Peripherals (Optional) 3.6.1 UTC-510/510 (PoE) Installing Optional Modules Attach the peripheral module to the bottom of the UTC system. Affix the module in place using the screws removed from the frame. Connect a cable to the peripheral module and to an I/O port (USB).
  • Page 54: Utc-515/520/532

    Place the cable clamp in a secure location and attach the cable to it for simple cable routing. 3.7 Panel Mount Installation for UTC-510 3 ; 5)/6 6FUHZ 0 3 [4/ 4 ; & O D P S H U...
  • Page 55: Installing A Dram Module For Utc-510

    3.8 Installing a DRAM Module for UTC-510 3.8.1 UTC-510 7 ; 6/6 6FUHZ 03*5/ 3 ; 5 ) / 6 6FUHZ 0 3[4 / 4 ; 5 ) / 6 6FUHZ 03*4/ ' 5 $ 0 3.8.2 UTC-510 (PoE) DRAM...
  • Page 56: Installing An Ssd Module For Utc-510

    3.9 Installing an SSD Module for UTC-510 3.9.1 UTC-510 7 ; 6/ 6 6FUHZ 03 *5/ 3 ; 5 ) / 6 6FUHZ 0 3 [4 / ()RU 6 6 ' %.7) 4 ; 5)/ 6 6FUHZ03*4/ 6 6 ' ()RU 6 6 ' ) 3.9.2 UTC-510 (PoE)
  • Page 57: Installing An Msata Ssd Module For Utc-510

    3.10 Installing an mSATA SSD Module for UTC-510 3.10.1 UTC-510 7 ; 6/6 6FUHZ 03*5/ 3 ; 5 ) / 6 6FUHZ 03 [4/ P 6 $ 7$ 6 6 ' 3.10.2 UTC-510 (PoE) MSATA SSD UTC-510/515/520/532/542 User Manual...
  • Page 58: Installing A Wi-Fi Module For Utc-510

    3.11 Installing a Wi-Fi Module for UTC-510 3.11.1 UTC-510 7 ; 6/ 6 6FUHZ 0 3 * 5 / 3 ; 5) / 6 6FUHZ 0 3 [ 4 / :L)L 0RGXOH 3.11.2 UTC-510(PoE) UTC-510/515/520/532/542 User Manual...
  • Page 59 UTC-510/515/520/532/542 User Manual...
  • Page 60: Appendix A Installation Accessories

    Appendix Installation Accessories...
  • Page 61: Introduction

    Introduction The floor stand and wall mount accessories provided for Advantech’s UTC series systems combine simplicity with style, making them easy to install without additional cost or space requirements. Additionally, because the UTC series are aimed at sup- porting applications in diverse usage scenarios, such as self-service kiosks in hospi- tality reception areas, the units are slim and compact, and feature an attractive elegant appearance that ensures integration in a variety of environments.
  • Page 62: Floor Stand

    100 75 1200  Organized cable management  VESA 75/100 mm  Height: 120 cm (47.2 in)  Easy tilt for optimum viewing comfort  Dimensions: Ø 660 mm (25.98 in)  Weight: 10 kg (22.04 lb) UTC-510/515/520/532/542 User Manual...
  • Page 63 Organized cable management  VESA 75/100 mm  Height: 120 cm (47.2 in)  Easy tilt for optimum viewing comfort  Dimensions: Ø 660 mm (25.98 in)  Weight: 10 kg (22.04 lb)  Acrylic signboard not included UTC-510/515/520/532/542 User Manual...
  • Page 64 Appendix UTC Peripherals...
  • Page 65: Utc-P01 (Camera Module)

    130 x 35 x 40 mm/5.11 x 1.37 x 1.57 in OperatingTemperature 0 ~ 40° C/32 ~ 104° F B.1.2 Packing List Description Quantity Cable clamp Camera module B.1.3 Ordering Information Part Number Description UTC-P01-A1E 5 megapixel camera module for UTC-500 series UTC-510/515/520/532/542 User Manual...
  • Page 66: Packing List

    130 x 35 x 40 mm/5.11 x 1.37 x 1.57 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature B.2.2 Packing List Description Quantity Cable clamp Magnetic strip reader module B.2.3 Ordering Information Part Number Description UTC-P02-A0E Magnetic strip reader for UTC-500 series UTC-510/515/520/532/542 User Manual...
  • Page 67 Reading Range OS Support Windows XP/7 Dimensions 130 x 35 x 40 mm/5.11 x 1.37 x 1.57 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature B.3.2 Packing List Description Quantity Cable clamp RFID reader module UTC-510/515/520/532/542 User Manual...
  • Page 68 130 x 35 x 40 mm/5.11 x 1.37 x 1.57 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature B.4.2 Packing List Description Quantity Cable clamp Smart card reader module B.4.3 Ordering Information Part Number Description UTC-P06-A0E Smart card reader for UTC-500 series UTC-510/515/520/532/542 User Manual...
  • Page 69 DataBar expanded stacked, GS1 DataBar stacked, GS1 DataBar Stacked omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E composites OS Support Windows 7/8 Dimensions 130 x 52 x 40 mm/5.11 x 2.04 x 1.57 in Operating 0 ~ 40° C/32 ~ 104° F Temperature UTC-510/515/520/532/542 User Manual...
  • Page 70 Magnetic head life: 1,000,000 times (ISO test standard) OS Support Windows XP/7 Dimensions 300 x 35 x 40 mm/11.81 x 1.37 x 1.57 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature B.6.2 Packing List Description Quantity Cable clamp 4-in-1 module UTC-510/515/520/532/542 User Manual...
  • Page 71 2 cm ± 1 cm Reading Range OS Support Windows XP/7/8/Windows 10 IoT Enterprise, Android, Linux Dimensions 90 x 35 x 38 mm/3.57 x 1.37 x 1.49 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature UTC-510/515/520/532/542 User Manual...
  • Page 72 94 x 38 x 22 mm/3.7 x 1.49 x 0.86 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature B.8.1 Packing List Description Quantity Smart card reader module B.8.2 Ordering Information Part Number Description UTC-510P-S01 Smart card reader for UTC-510 series (USB connection) UTC-510/515/520/532/542 User Manual...
  • Page 73 Industrial 2 of 5, Standard 2 of 5, Stacked Linear Plessey, MSI-Plessey, etc. OS Support Windows 7/8, Windows 10 IoT Enterprise Dimensions 80 x 35 x 38 mm/3.14 x 1.37 x 1.49 in Operating 0 ~ 40 °C/32 ~ 104 °F Temperature UTC-510/515/520/532/542 User Manual...
  • Page 74 Barcode scanner module B.9.2 Ordering Information Part Number Description UTC-510P-B01E 1D barcode scanner for UTC-510 series (USB connection) UTC-510P-B02E 1D/2D barcode scanner for UTC-510 series (USB connection) B.10 UTC-510P-M01E Interface USB (cable length: 50 cm/19.68 in) TRACK 1/IATA/210 bpi/79 alphanumeric characters...
  • Page 75 B.10.2Ordering Information Part Number Description UTC-510P-M01E Magnet strip reader for UTC-510 series (USB connection) UTC-510/515/520/532/542 User Manual...
  • Page 76 Appendix Touchscreen Options...
  • Page 77: Appendix C Touchscreen

    130 cm Impact Test from 50 cm - Pass from 130 cm - Pass - Pass Touch Points Single touch Multi touch Multi touch Anti-Microbial Visible Light 80 ±5% 90 ± 2% 90 ± 2% Transmission UTC-510/515/520/532/542 User Manual...
  • Page 78 UTC-510/515/520/532/542 User Manual...
