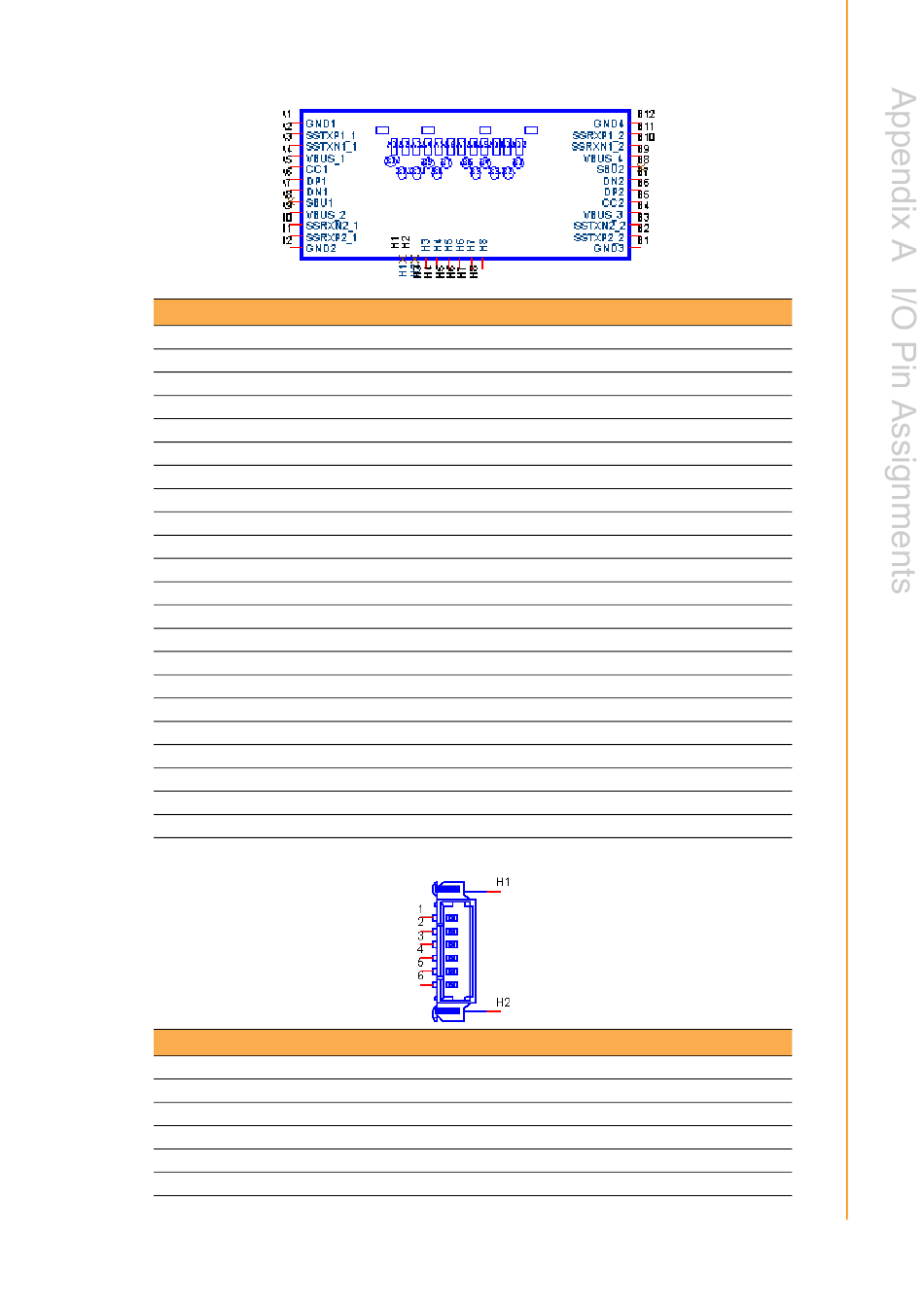

Table A.72: TYPEC3(K): TYPEC PD POWER IN
Part Number 1654013764-01
Footprint USB_24P_UT12113-1160T-7H_A
Description USB Type C 24P/0.5mm/LCP/F/RA/G30u/S/BK/H3.14mm
Pin Pin name
A1,A12,B12,B1 GND
A2,A3,A10,A11 NC
B2,B3,B10,B11 NC
A4,A9,B4,B9 +VUSBPD_C
A5 USBCPD_CC1
A6 USB7_DP_CON1
A7 USB7_DN_CON1
A8 PDS_SBU1_CON
A10 USB3X3_RX_DN2
A11 USB3X3_RX_DP2
B2 USB3X3_TX_DN2
B3 USB3X3_TX_DP2
B5 USBCPD_CC2
B6 USB7_DP_CON1
B7 USB7_DN_CON1
B7 PDS_SBU2_CON
B10 USB3X3_RX_DN1
B11 USB3X3_RX_DP1
Table A.73: CN110(K): GPIO
Part Number 1655004796-01
Footprint WF_6P_49_BOX_RA_50271-00601-001
Description WAFER BOX 6P 1.25mm 90D(M) SMD 50271-00601-001
Pin Pin name
1,6 GND
2 GPIO1
