Advantech UTC-320 User Manual page 85

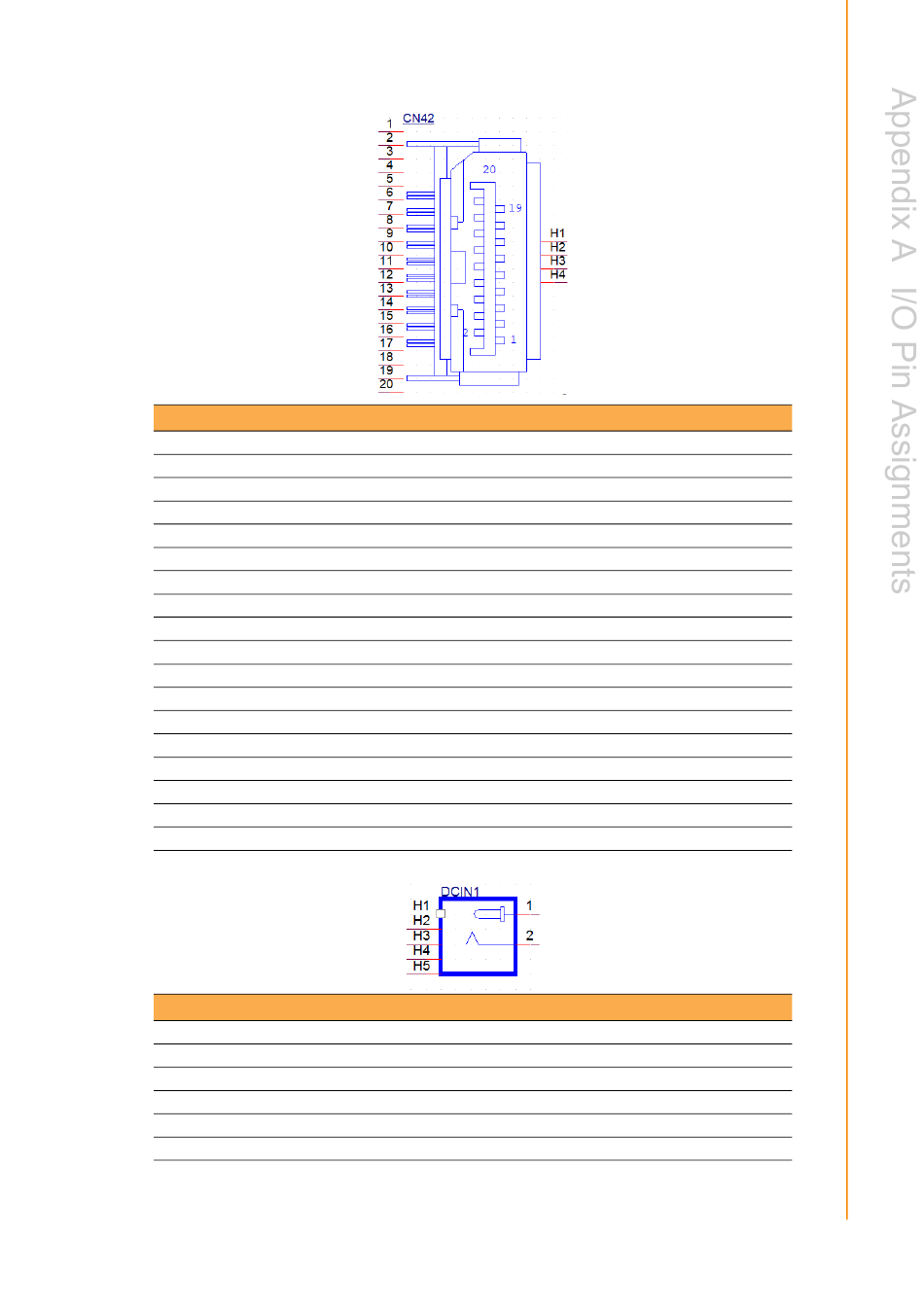

Table A.62: CN42(H): DP
Part Number 1654006275
Footprint DPCON_20P_3VD11203-H7A0-4H
Description DisplayPort Conn. 20P 1.40mm 90D DIP 3VD11203
Pin Pin name
2,5,8,11,14,16,19 GND
1 DP_TX0+
3 DP_TX0-
4 DP_TX1+
6 DP_TX1-
7 DP_TX2+
9 DP_TX2-
10 DP_TX3+
12 DP_TX3-
13 DP_AUX_EN#
15 DP1_AUX+
17 DP1_AUX-
18 DDP2_DP_HPD
20 3.3V
Table A.63: CN31(DG),CN25(EF),DCIN1(HI): DC-IN
Part Number 1652005624
Footprint PJ_2P_2DC-G213B200
Description DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200
Pin Pin name
1 DC_IN
2 GND
75 UTC-320 User Manual
