Summary of Contents for Advantech UNO-2184G

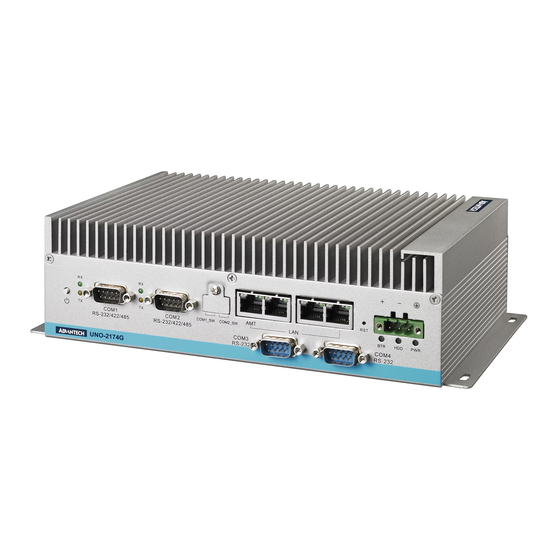

- Page 1 User Manual UNO-2184G/2174G/ 2174GL 電腦 Automation Computers with Intel® Core™ i7 / Celeron® Processors, 4 x GbE, 2 x Mini- PCIe, DVI/DP/HDMI...
- Page 2 Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考 3. 〝－〞係指該項限用物質為排除項目。 Note 3: The “−” indicates that the restricted substance corresponds to the exemption. UNO-2184G/2174G/2174GL User Manual...
- Page 3 UNO-2174G-C54E UNO2174G1301E-T UNO2174GC541301E-T UNO2174GC541401E-T UNO2174GC541402E-T UNO2174GC541403E-T UNO2174GC541601E-T UNO2174GC54E01E-ES UNO-2174GL-C44E UNO2174GL441301E-T UNO2174GL1401E-T UNO2174GLC44E-ES UNO-2184G-D44E UNO2184G1201E-T UNO2184G1301E-T UNO2184G1302E-T UNO2184G1303E-T UNO2184G1401E-T UNO2184G1403E-T UNO2184GD1501E-T UNO2184GD441301E-T UNO2184GD441401E-T UNO2184GD441402E-T UNO2184GD441403E-T UNO2184GD441601E-T UNO-2184G-D45E UNO2184GD451401E-T UNO2184GD451402E-T UNO2184GD451601E-T UNO-2184G-D64E UNO2184GD641502E-T UNO2184GD641503E-T UNO2184GD641504E-T UNO2184GD641601E-T UNO-5080G-D54E UNO-5080G-D55E UNO-2184G/2174G/2174GL User Manual...
- Page 4 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 5 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 6 這是甲類測試產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下， 使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site, at www.advantech.com/support, where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
- Page 7 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 8 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。 請注意設備上所有的警告標示。 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電壓波動 損壞。 12. 請勿讓任何液體流入通風口，以免引起火灾或短路。 13. 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設 備。 如遇下列情况，請由專業人員維修： 電源線或插頭損壞； 設備內部有液體流入； 設備曾暴露在過度潮濕環境中使用； 設備無法正常工作，或您無法透過用戶手冊來正常工作； 設備摔落或損壞； 設備有明顯外觀損； 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 -20°C （-4°F）或高 於 60°C （140°F） ，否則可能會造成設備損壞。 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承 擔任何法律責任。 UNO-2184G/2174G/2174GL User Manual viii...
-
Page 9: Table Of Contents
Accessories....................4 Chapter Hardware Functionality .......5 Introduction ....................6 Figure 2.1 Front Panel of UNO-2184G/2174G/2174GL ....6 Figure 2.2 Rear Panel of UNO-2184G/2174G/2174GL ....6 UNO-2184G/2174G/2174GL Interface (COM1~COM4) ......6 2.2.1 RS-232/422/485 Interface (COM 1 ~ 2) ........7 2.2.2 16C550 UARTs with 128-byte Standard........ - Page 10 DisplayPort Display Connector ............... 29 Table A.11:DisplayPort Adaptor Cable Pin Assignments ... 29 A.11 Clear CMOS (JP1) .................. 30 Table A.12:JP2 Clear CMOS............30 A.12 System Power AT or ATX Selection (JP3)..........30 Table A.13:AT/ATX Selection ............. 30 UNO-2184G/2174G/2174GL User Manual...
-
Page 11: Chapter 1 Overview
Chapter Overview This chapter provides an overview of UNO-2184G/2174G/2174GL’s specifications. Sections Include: Introduction Hardware Specifications Safety Precautions Chassis Dimensions... -
Page 12: Introduction
UNO-2184G/2174G/2174GL includes Intel’s lat- est Core i7/Celeron technology and provides plenty of I/O interfaces, including up to 4 serial ports, 4 x GbE LAN, 6 x USB ports and Audio. UNO-2184G/2174G/2174GL supports three display types, DVI, DisplayPort and HDMI for various high resolution requirements. -
Page 13: System Hardware
RS-422/485: 50 ~ 115.2 kbps (Max.) LAN: 4 x 10/100/1000Base-T RJ-45 ports Supports AMT (UNO-2184G only), wake on LAN and built in boot ROM in flash BIOS USB Ports: 6 x USB ports (only UNO-2184G-D64E supports 2 x USB3.0 ports) 1.3.3... -
Page 14: Safety Precautions
Chassis Dimensions Figure 1.1 UNO-2184G/2174G/2174GL Chassis Dimensions Accessories Please refer below for the accessory list: 3-pin connector for power wiring (Advantech P/N: 1652003206) SATA signal cable (Advantech P/N: 1700013095) SATA power cable (Advantech P/N: 1700006492) ... -
Page 15: Chapter 2 Hardware Functionality
Chapter Hardware Functionality This chapter shows how to setup the UNO-2184G/2174G/2174GL’s hardware functions, including connecting peripherals, setting switches and indicators. Sections Include: Peripherals RS-232 Interface RS-422/485 Interface LAN / Ethernet Connector Power Connector Power eSATA ... -
Page 16: Introduction
Introduction The following figures show the connectors on UNO-2184G/2174G/2174GL. The fol- lowing sections give you information about each peripheral. Figure 2.1 Front Panel of UNO-2184G/2174G/2174GL Figure 2.2 Rear Panel of UNO-2184G/2174G/2174GL UNO-2184G/2174G/2174GL Interface (COM1~COM4) UNO-2184G/2174G/2174GL offers 2 standard RS-232/422/485 and 2 RS-232 (with cable) serial communication inter-face ports: COM1 ~ COM4. -
Page 17: Rs-232/422/485 Interface (Com 1 ~ 2)
2.2.4 Automatic Data Flow Control Function for RS-485 In RS-485 mode, UNO-2184G/2174G/2174GL automatically detects the direction of incoming data and switches its transmission direction accordingly. No handshaking signal (e.g. RTS signal) is necessary. This lets users conveniently build an RS-485 network with just two wires. -
Page 18: Lan: Ethernet Connector
PS/2 Keyboard and Mouse Connector The UNO-2184G/2174G/2174GL provides a PS/2 keyboard and mouse connector. A 6-pin mini-DIN connector is located on the rear panel. The UNO-2184G/2174G/ 2174GL comes with an adapter to convert from the 6-pin mini-DIN connector to 2 6- pin mini-DIN connectors for PS/2 keyboard and PS/2 mouse connection. -
Page 19: Usb Connector
127 external devices. 2 of the 6 connectors are compati- ble with USB3.0 devices, although only with USB 2.0 speed (except UNO-2184G- D64E). The USB interface complies with USB EHCI, Rev. 2.0 and can be disabled in the system BIOS setup. -
Page 20: Reset Button
2.13 PCI Express Mini Card Socket UNO-2184G/2174G/2174GL supports 2 sockets for full size PCI Express mini cards. This interface is mainly target on the wireless application such as WLAN GPRS and 3G. User can install the card easily by the optional kit, please refer to Chapter 3.5 for the details. -
Page 21: Chapter 3 Initial Setup
Chapter Initial Setup This chapter introduces how to initialize the UNO-2184G/2174G/ 2174GL. Sections Include: Inserting a CFast Card Chassis Grounding Connecting Power Connecting a Hard Disk BIOS Setup and System Assign- ments... -
Page 22: Inserting A Cfast Card
BIOS and select "Integrated Peripherals > IDE Device Setup > IDE Configuration > Enhanced Mode" Chassis Grounding UNO-2184G/2174G/2174GL provides good EMI protection and a stable grounding base. There is an easy-to-connect chassis grounding point to use. Figure 3.1 Chassis Grounding Connection Please also note that system ground and chassis ground are separated in UNO- 2184G/2174G/2174GL. -
Page 23: Installing A Hard Disk
Installing a Hard Disk The procedure for installing a hard disk into the UNO-2184G/2174G/2174GL is below. Please follow these steps carefully. Please note the system is not compatible with +12V HDD. Please use an HDD with lower power input. Remove the power cord. -
Page 24: Installing A Wireless Lan Card And Antenna
Installing a Wireless LAN Card and Antenna Please contact Advantech to prepare the following optional kit: Rear Panel for Antenna The internal cable: 1750006043 (15cm) Wireless Module (PCI Express Mini Card) One of the suggested modules is the EWM-W138H01E, which is a verified ... -
Page 25: Bios Setup
Press "F2" in the boot-up screen to enter the BIOS setup utility. Please follow the instructions on the screen to do the necessary settings. Please note that you can try to “Load Optimized Defaults” from the BIOS Setup man- ual if the UNO-2184G/2174G/2174GL does not work properly. UNO-2184G/2174G/2174GL User Manual... -
Page 26: Amt Configuration
Set timer to wait before sending ASF_GET_BOOT_OPTIONS. Activated Remote Assistance Process This item allows users to enable or disable Alert Specification Format. USB Configure This item allows users to enable or disable USB Configure Function. UNO-2184G/2174G/2174GL User Manual... - Page 27 BIOS Timer Sets BIOS Watchdog Timer. Intel Anti-Theft Technology This item allows users to enable or disable Intel® Anti-Theft Technology (Intel AT), which helps stop laptop theft by making computers useless to thieves with immediate shut down. UNO-2184G/2174G/2174GL User Manual...
- Page 28 TPM Support This item allows users to enable or disable the Trusted Platform Module func- tion. UNO-2184G/2174G/2174GL User Manual...
- Page 29 ME FW Image Re-Flash This item allows users to enable or disable Me FW image re-flash function. UNO-2184G/2174G/2174GL User Manual...
- Page 30 UNO-2184G/2174G/2174GL User Manual...
-
Page 31: Appendix A Syst. Settings & Pin Assignments
Appendix Syst. Settings & Pin Assignments... -
Page 32: System I/O Address And Interrupt Assignment
COM 1 IRQ 8 Real-Time Clock IRQ 9 Microsoft ACPI-Compliant System IRQ 10 COM 3~4 IRQ 11 SMBus IRQ 16 LAN and Graphics IRQ 17 IRQ 19 LAN, AMT and SATA IRQ 20 IRQ 22 Audio IRQ 23 UNO-2184G/2174G/2174GL User Manual... -
Page 33: Board Connectors And Jumpers
Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2184G/2174G/2174GL board. The following sections tell you how to configure the UNO-2184G/2174G/ 2174GL hardware setting. Figure A.1 shows the locations of UNO-2184G/2174G/ 2174GL’s connectors and jumpers. Figure A.1 Connector & Jumper Locations (front) Table A.2: Connectors and Jumpers... -
Page 34: Rs-232 Standard Serial Port
RS-232 Standard Serial Port Table A.3: RS-232 Serial Port Pin Assignments Pin Name RS-232/422/485 Serial Port (COM1 ~ COM2) Table A.4: RS-232/422/485 Serial Port Pin Assignments RS-232 RS-422 RS-485 Data- Data+ UNO-2184G/2174G/2174GL User Manual... -
Page 35: Power Connector (Pwr)
Power Connector (PWR) Table A.5: Power Connector Pin Assignments V+ (9~36VDC) Field Ground PS/2 Keyboard and Mouse Connector Table A.6: Keyboard and Mouse Connector Pin Assignments Signal Name KB DATA MS DATA KB Clock MS Clock UNO-2184G/2174G/2174GL User Manual... -
Page 36: Usb Connector
Black Table A.8: USB 3.0 Connector Pin Assignments Signal Name Description VBUS Power USB2.0 Differential Pair Ground for Power Return StdA_SSRX- SuperSpeed Receiver Differential Pair StdA_SSRX+ GND_DRIAN Ground for Signal Return StdA_SSTX- SuperSpeed Transmitter Differential Pair StdA_SSTX+ UNO-2184G/2174G/2174GL User Manual... -
Page 37: Hdmi Display Connector
TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect UNO-2184G/2174G/2174GL User Manual... -
Page 38: Dvi-I Connector
DVI-I Connector Table A.10: DVI-I Connector Pin Assignment Signal Name TMDS_C2# TMDS_C2 CRT_DDC_CLK CRT_DDC_DATA MDVI_CLK MDVI_DATA VGAVSY TMDS_C1# TMDS_C1 VCC_DVI VGA Detect HP_DET TMDS_C0# TMDS_C0 TMDS_CK# TMDS_CK VGAR VGAG VGAB VGAHSY UNO-2184G/2174G/2174GL User Manual... -
Page 39: Displayport Display Connector
Signal Name ML_Lane 0 (p) ML_Lane 0 (n) ML_Lane 1 (p) ML_Lane 1 (n) ML_Lane 2 (p) ML_Lane 2 (n) ML_Lane 3 (p) ML_Lane 3 (n) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return DP_PWR UNO-2184G/2174G/2174GL User Manual... -
Page 40: Clear Cmos (Jp1)
Configuration Function Clear CMOS Normal ( Default) A.12 System Power AT or ATX Selection (JP3) UNO-2184G/2174G/2174GL can set AT or ATX power mode in the BIOS or hard- ware jumper settings. Table A.13: AT/ATX Selection Configuration Function AT mode ATX mode (default) - Page 41 UNO-2184G/2174G/2174GL User Manual...
- Page 42 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
