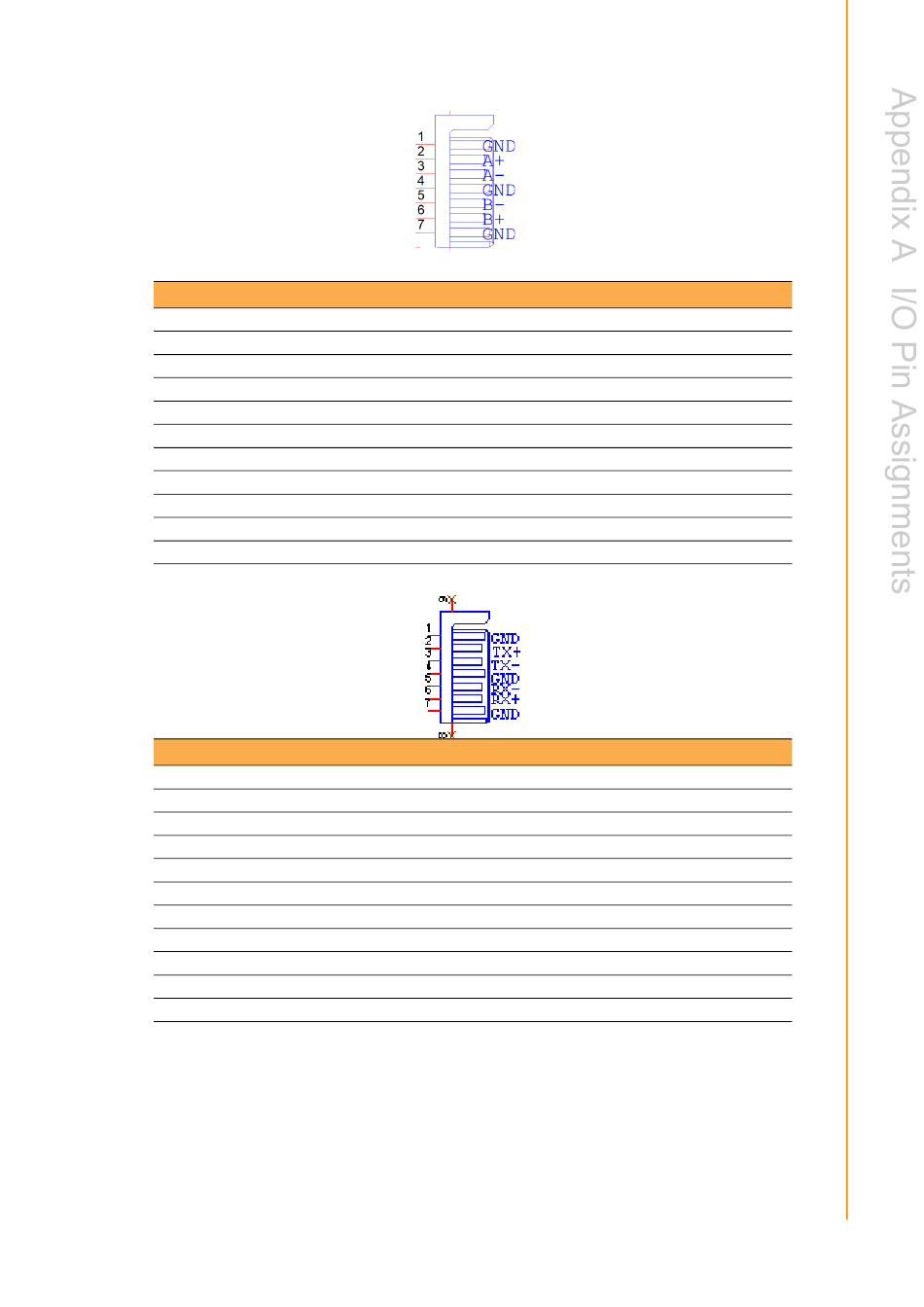

Table A.16: SATA1(HI):SATA
Part Number
1654013471-01
Footprint
sata_7p_watm-07dbn4a3b8uw_d
Description
SATA 7P/1.27mm/(F)/NY46/VA/G15u/D/BK/H8.45mm
Pin
Pin name
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
Table A.17: CN108(K):SATA
Part Number
1654004118
Footprint
SATA_7P_50_WATA-07DPLH4U
Description
Serial ATA 7P 1.27mm 90D(M) SMD WATA-07DPLH4U
Pin
Pin name
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
49
