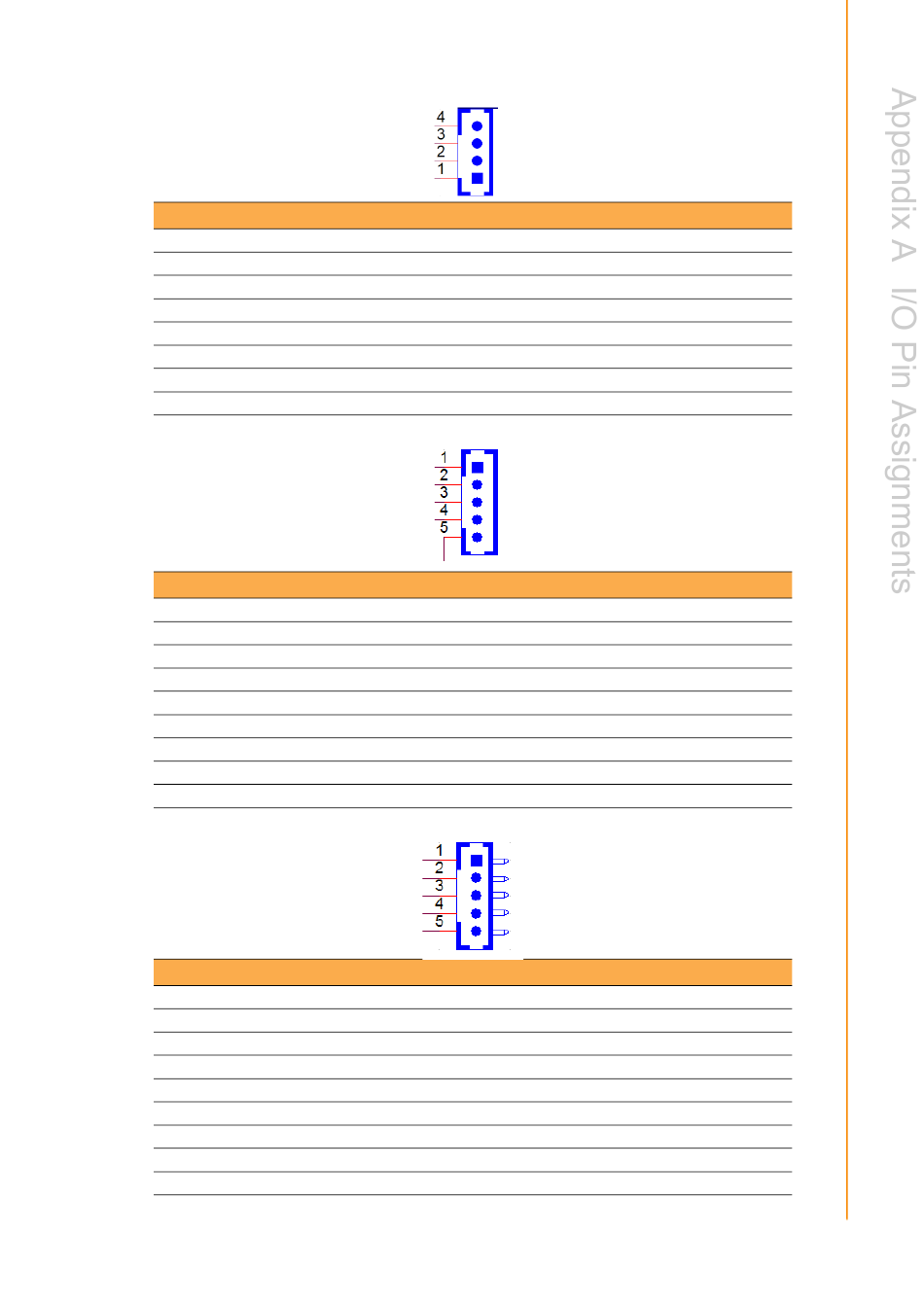

Table A.21: CN23(H): SATA LED
Part Number 1655000170
Footprint WF_4P_49_BOX_R1_D
Description WAFER 1.25mm 4P 180D DIP A1251WV0-4P
Pin Pin name
1 +5VSB
2 +5V
3 SATA0_LED
4 GND
Table A.22: CN6(D),CN5(G),CN3(G) :Internal USB
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin name
1 +5V
2 D-
3 D+
4 GND
5 GND
Table A.23: CN9(D),CN6(EG),CN26(F),CN41(HI): Touch
Part Number 1655005110
Footprint WF_5P_100_RA_D
Description WAFER 5P 2.54mm 90D(M) DIP 2542-WR-5
Pin Pin name
1 Y+
2 Y-
3 SENSE
4 X+
5 X-
