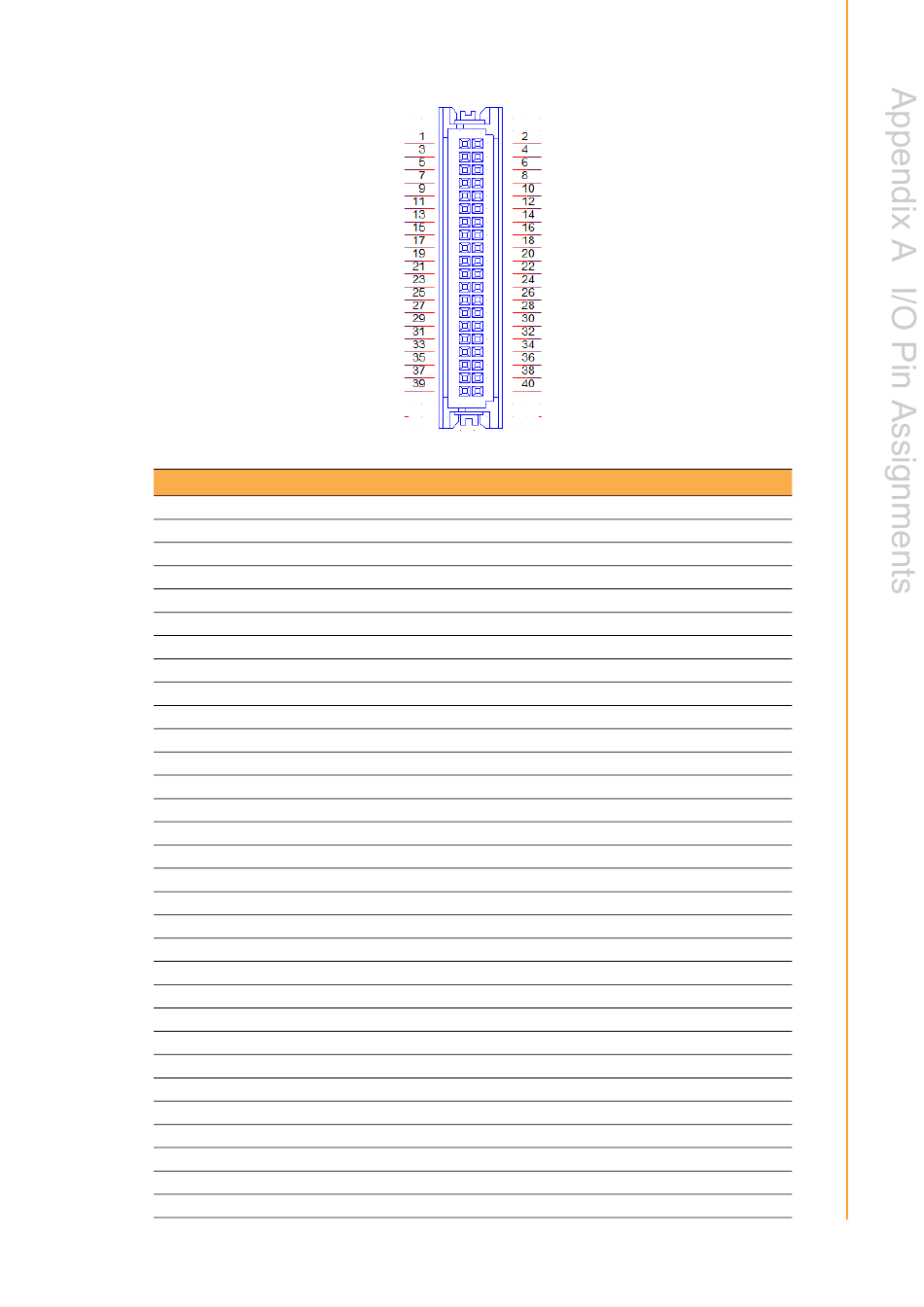

Table A.7: CN4(DEFG):LVDS
Part Number 1653920200
Footprint SPH20X2
Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91)
Pin Pin name
1 +3.3V or +5V
2 +3.3V or +5V
3 GND
4 GND
5 +3.3V or +5V
6 +3.3V or +5V
7 LVDS0_D0-
8 LVDS1_D0-
9 LVDS0_D0+
10 LVDS1_D0+
11 GND
12 GND-
13 LVDS0_D1-
14 LVDS1_D1-
15 LVDS0_D1+
16 LVDS1_D1+
17 GND
18 GND
19 LVDS0_D2-
20 LVDS1_D2-
21 LVDS0_D2+
22 LVDS1_D2+-
23 GND
24 GND
25 LVDS0_CLK-
26 LVDS1_CLK-
27 LVDS0_CLK+
