19.2 Controls (Fig. 19.1, Fig.19.2, Fig.19.3)
The Joystick Module is available with and without lighting control.
The controls are common to both; however, the lighting buttons symbols
only appear on the lighting control version.
JOYSTICK
The primary function of the joystick is to control the speed and direction
of the wheelchair. The further you push the joystick from the center
position the faster the wheelchair will move. When you release the
joystick the brakes are automatically applied.
COMMUNICATION CABLE
The Communication Cable carries the electrical signals to and from the
Power Module.
CHARGER SOCKET
This socket should only be used for charging or locking the wheelchair.
Do not connect any type of programing cable into this socket.
This socket should not be used as a power supply for any other
electrical device. Connection of other electrical devices may damage the
control system or affect the E.M.C. performance of the wheelchair.
CAUTION!
The control system's warranty will be void if any device other than the
battery charger supplied with the wheelchair or the lock key is connected
into this socket.

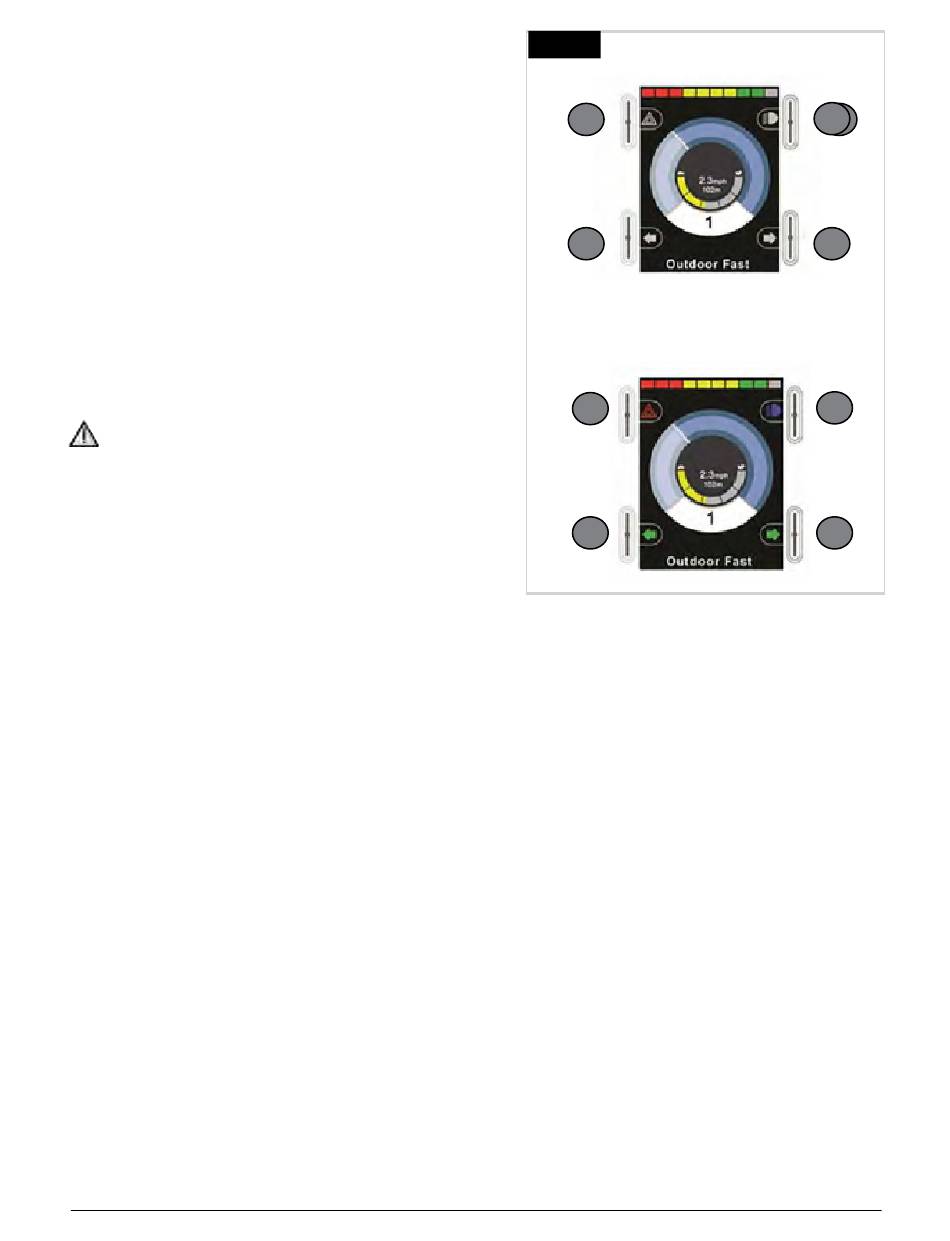

SCREEN BUTTONS
These buttons operate the lighting functions: 1.Hazards, 2. Lights, 3. Left
Indicator and 4. Right Indicator. The function of each button is illustrated
by an icon displayed on the LCD screen next to the button (Fig.19.3).
Pressing the relative button activates and deactivates its function. Once
the function is activated, the icon on the LCD will illuminate or flash
depending on the function.
NOTE:
If no lighting system is fitted to the wheelchair, these buttons will be
inactive. In all instances, the top left button, when held for a short time,
will open the Settings Menu. Refer to section Settings Menu for more
details.
NOTE:
When 2, 3, and 4 are held for a short time they can activate functions
(e.g. lift, tilt, etc). Depending on the chair options.
IR RECEIVER - LIGHT SENSOR - LCD DIAGNOSTIC LED
The IR receiver enables IR codes and signals to be inputed from external
equipment. Refer to IR Setup and Operation. The Ambient Light Sensor
automatically adjusts screen brightness. Refer to Settings Menu. The
LCD Diagnostic LED is to indicate the control system is switched on in
the event of an LCD screen failure.
LCD SCREEN
The status of the control system can be understood by observing the
LCD screen. The control system is on when the screen is back-lit. Refer
to section Momentary Screens for details.
ON - OFF BUTTON (LEFT PADDLE)
The On/Off paddle switch is operated via forward deflections of the left
paddle.
Operate the On/Off paddle. The screen will go through an initializing
process then show the base screen (Fig 19.1).
•
Check that the Speed Setting is at a level that suits you.
Push the joystick to control the speed and direction of the wheelchair.
•
247555 Rev. A
Fig.19.3
1
3
1
3
NOTE:
If you push the joystick before or just after you switch
the control system on, the screen will flash the joystick
displaced screen (Fig.19.32, pg 76). You must release
and center the joystick to resume normal operation. If
you do not release the joystick within five seconds the
wheelchair will not be able to move, even if you release
the joystick and push it again. The screen will display
the diagnostic screen at this time. You can reset this
condition by switching the control system off and on
again.
NOTE:
If you do not push the joystick as you switch the
wheelchair on and the diagnostic screen is displayed
(Fig.19.35, pg 77) then the R-Net has detected a
problem somewhere in the wheelchair's electrical
system
68
STANDBY
2
2
4
ACTIVATED
2
4
R-Net Control System
