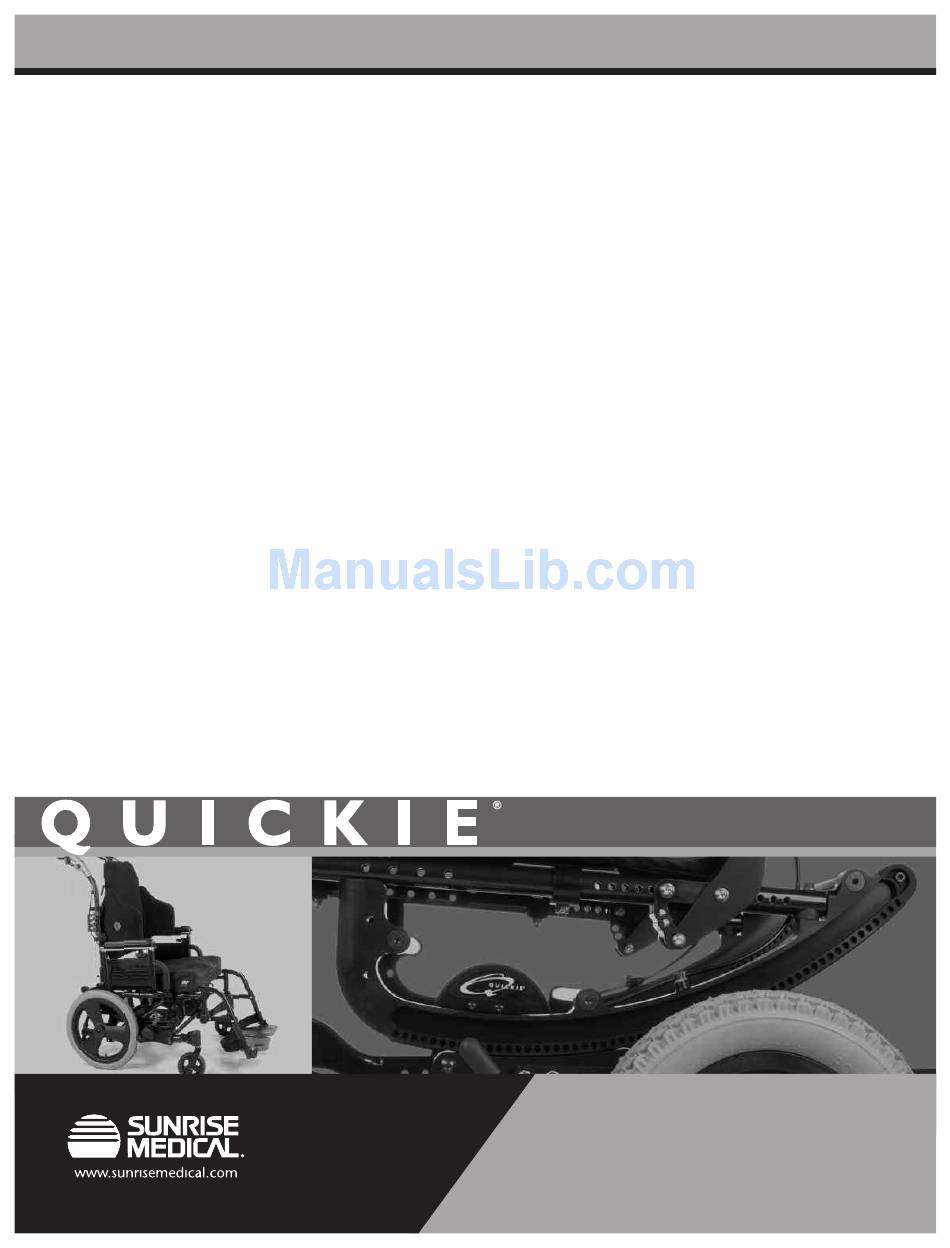

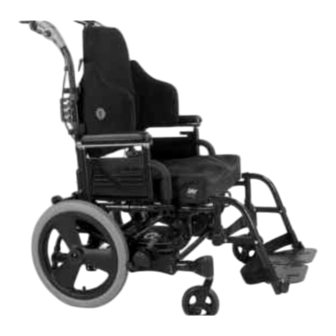

  • Page 1 I R I S Quickie ® IRIS / Quickie ® IRIS SE J with transit option J without transit option O w n e r ’ s M a n u a l Supplier: This manual must be given to the user of this wheelchair.

  • Page 2: Introduction

    Please feel free to write or call us at the address and telephone number below: SUNRISE MEDICAL Customer Service Department 7477 East Dry Creek Parkway Longmont, CO 80503...

  • Page 3: Table Of Contents

    E N G L I S H I I . TA B L E O F C O N T E N T S I. INTRODUCTION ............B. Armrests ..............II. TABLE OF CONTENTS..........C.Stroller Handle............III. YOUR CHAIR AND ITS PARTS ......D.

  • Page 4: Your Chair And Its Parts

    E N G L I S H I I I . YO U R C H A I R A N D I T S PA RT S 1. Backpost 2. Dual-post, height-adjustable armrest 3. Swing-away footrest 4. Aluminum footplate 5.

  • Page 5: General Warnings

    2. Consult your authorized supplier BEFORE you modify NEVER use this chair for weight training if total weight or adjust your chair, or contact Sunrise Medical. (rider plus equipment) exceeds 250 pounds or 350 3. We recommend that you use anti-tip tubes until you adapt to pounds for heavy duty option.

  • Page 6: Motor Vehicle Safety

    E N G L I S H J. MOTOR VEHICLE SAFETY K. WHEN YOU NEED HELP As indicated on the front cover of this user manual, identify WARNING whether your chair has been manufactured with the Transit Option For The Rider: installed.

  • Page 7: C.wheelies

    E N G L I S H V I . C. WHEELIES b. Do not put pressure on the footrests. NOTE– Leaning forward puts pressure on the footrests and may cause the Because of the ability to adjust the center of gravity and chair to tip if you lean too far.

  • Page 8: H.transfers

    E N G L I S H V I . b. Keep pressure on the handrims to control your speed on 7. Make sure armrests are out of the way and do not interfere. a down slope. If you go too fast you may lose control. 8.

  • Page 9: Warnings: For Safe Use (Attendants)

    E N G L I S H V I I . WA R N I N G S : F O R S A F E U S E ( AT T E N DA N T S ) D. CLIMBING STAIRS WARNING WARNING Before you assist a rider, be sure to read the warnings...

  • Page 10: Warnings: Components & Options

    E N G L I S H V I I . 4. The figure below shows the locations of the wheelchair 5. Use only with Wheelchair Tie down and Occupant Restraint securement points, front (A) and back (B). Systems (WTORS) that have been installed in accordance with the manufacturer’s instructions and SAE J2249.

  • Page 11: Pneumatic Tires

    E N G L I S H V I I I . F. PNEUMATIC TIRES I. PUSH HANDLES WARNING WARNING Proper inflation extends the life of your tires and makes When you have a attendant, make sure that this chair your chair easier to use.

  • Page 12: M.modified Seat Systems

    If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of vided by both Sunrise Medical and the seating manufactur- control may occur and cause severe injury to the rider or others.

  • Page 13: Set-Up And Adjustments

    E N G L I S H I X . S E T- U P & A D J U S T M E N T NOTE– Setting the wheelchair on a table or on a flat surface, such as a workbench, helps make these proce- dures easier.

  • Page 14: C.contracture Footrest (Optional)

    E N G L I S H I X . C. CONTRACTURE FOOTREST (optional) 1. Outside Mount Can be mounted laterally as shown in Figure 5. 2. Inside Mount Can be mounted in the center as shown in Figure 6. 3.

  • Page 15: Caster/Forks Assembly

    E N G L I S H I X . F. CASTER/FORKS ASSEMBLY 1. Installation (Fig. 11) a. Remove dust cover (A) from caster housing. Pry cover off using a back and forth motion. b. Caster assembly holds one nut (B) and one washer (immediately below the nut). Remove nut and washer.

  • Page 16: Adjustable Locking Flip-Up Armrests

    E N G L I S H I X . I. ADJUSTABLE LOCKING FLIP-UP ARMRESTS (Fig. 14) 1. Flip up and down a. Release the upper securing lever (B). b. Flip the armrest back, it remains attached to the back post. c.

  • Page 17: Tilt-In-Space Mechanism

    The tilt-in-space mechanism is installed by Sunrise. Two cable/trigger mechanisms positively lock the chair in place from -5º to 60º depending on the set-up. The Quickie IRIS has the capability to provide from 0º to 5º of forward tilt. DO NOT ATTEMPT TO MAKE THIS ADJUSTMENT.

  • Page 18: M.stroller Handle Extension

    E N G L I S H I X . 2. Angle Adjustment of the Stroller Handle (Fig. 23) Depress both black push buttons (E) at the same time. This disengages the stroller handle and allows it to rotate freely. Releasing the push buttons positively locks the adjustable stroller han- dle in the desired position.

  • Page 19: Frame Width

    E N G L I S H I X . 2. Hanger Receiver Adjustment (Fig. 29) a. Loosen and remove both socket head screws (F) from the seat rail. b. Slide the hanger receiver (G) in the seat rail to the desired position. c.

  • Page 20: Carriage

    E N G L I S H I X . 4. Rear Wheel Axle Adjustment (Fig. 35) Tight axle sleeves should be maintained for proper performance of the wheelchair. a. To adjust the axle you will need a 3/4" wrench to turn the outside axle nuts. b.

  • Page 21: U.wheel Locks

    NOTE– Use a torque setting of 150 in.-lbs. when tightening bottom roller nuts (K). U. WHEEL LOCKS Quickie IRIS wheelchairs are standard with wheel locks. Wheel locks are installed at Sunrise. Adjustment (Fig. 41) a. Loosen the screws (F). Do not attempt to remove one screw at a time.

  • Page 22: Troubleshooting

    E N G L I S H X . T RO U B L E S H O OT I N G X. TROUBLESHOOTING You will need to adjust your chair from time to time for best performance (especially if you alter the original settings).

  • Page 23: Maintenance

    E N G L I S H X I . M A I N T E NA N C E C. MAINTENANCE TIPS XI. MAINTENANCE 1. Axles & Axle Sleeves: A. INTRODUCTION Check axles and axle sleeves every six months to make sure they are tight.

  • Page 24: Sunrise Limited Warranty

    Record your serial number here for future reference: consumer purchase of this wheelchair through an authorized Sunrise Medical dealer. ___________________________________________ Sunrise Medical Inc. 7477 East Dry Creek Parkway Longmont, Colorado 80503 (800) 333-4000 In Canada (800) 263-3390 www.sunrisemedical.com ©2008 Sunrise Medical Inc. 7.08 107457 Rev. B...
