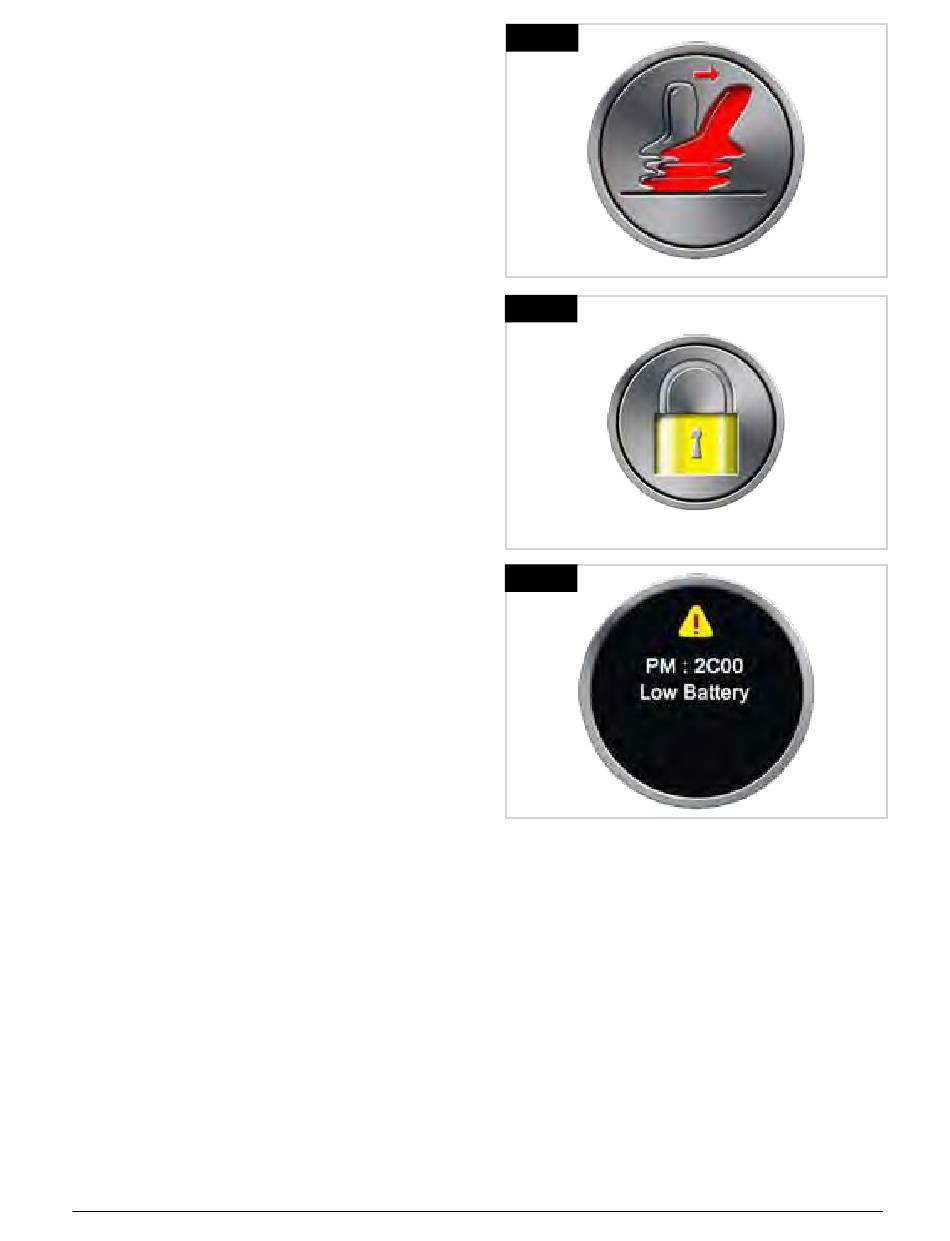

JOYSTICK DISPLACED (Fig 19.32)
If the joystick is operated before or just after you switch the
control system on, the screen will flash the joystick displaced
screen.
You must release and center the joystick to resume normal
operation.
If you do not release the joystick within five seconds the
wheelchair will not be able to move, even if you release the
joystick and operate it again.
The screen will display a diagnostic screen at this time.
You can reset this condition by switching the control system off
and on again.
CONTROL SYSTEM LOCK (Fig 19.33)
This symbol is displayed if the control system is locked, see
section 3.5 for locking and unlocking the joystick.
DIAGNOSTIC SCREEN (Fig 19.34)
When the control system safety circuits have operated and the
control system has been prevented from moving the
wheelchair, a diagnostics screen will be displayed.
This indicates a system trip, i.e. the R-Net has detected a
problem somewhere in the wheelchair's electrical system.
If the error is in a non-active module, for example in the ISM
but Drive Mode is selected, then drive will still be possible,
however, the diagnostic screen will appear intermittently.
Refer to Diagnostics for a complete description of the Trip
Texts and diagnostic procedures or contact your authorized
dealer.
SETTINGS MENU (Fig 19.35 next page)
The Settings Menu allows access to user related adjustments.
The menu is accessed by depressing and holding the top left-
hand Screen Button for 1 second.
A typical Settings Menu display would be as shown in
Fig.19.35.
Joystick forward and reverse movements are used to navigate
up and down the screen.
Each of the menu items are described in the following sections:
TIME
A right joystick deflection will enter a sub-menu with the
following Time related function options:
Set Time:
Allows the user to set the current time.
Display Time:
This sets the format of the time display or turns it off. The
options are 12hr, 24hr or Off.
