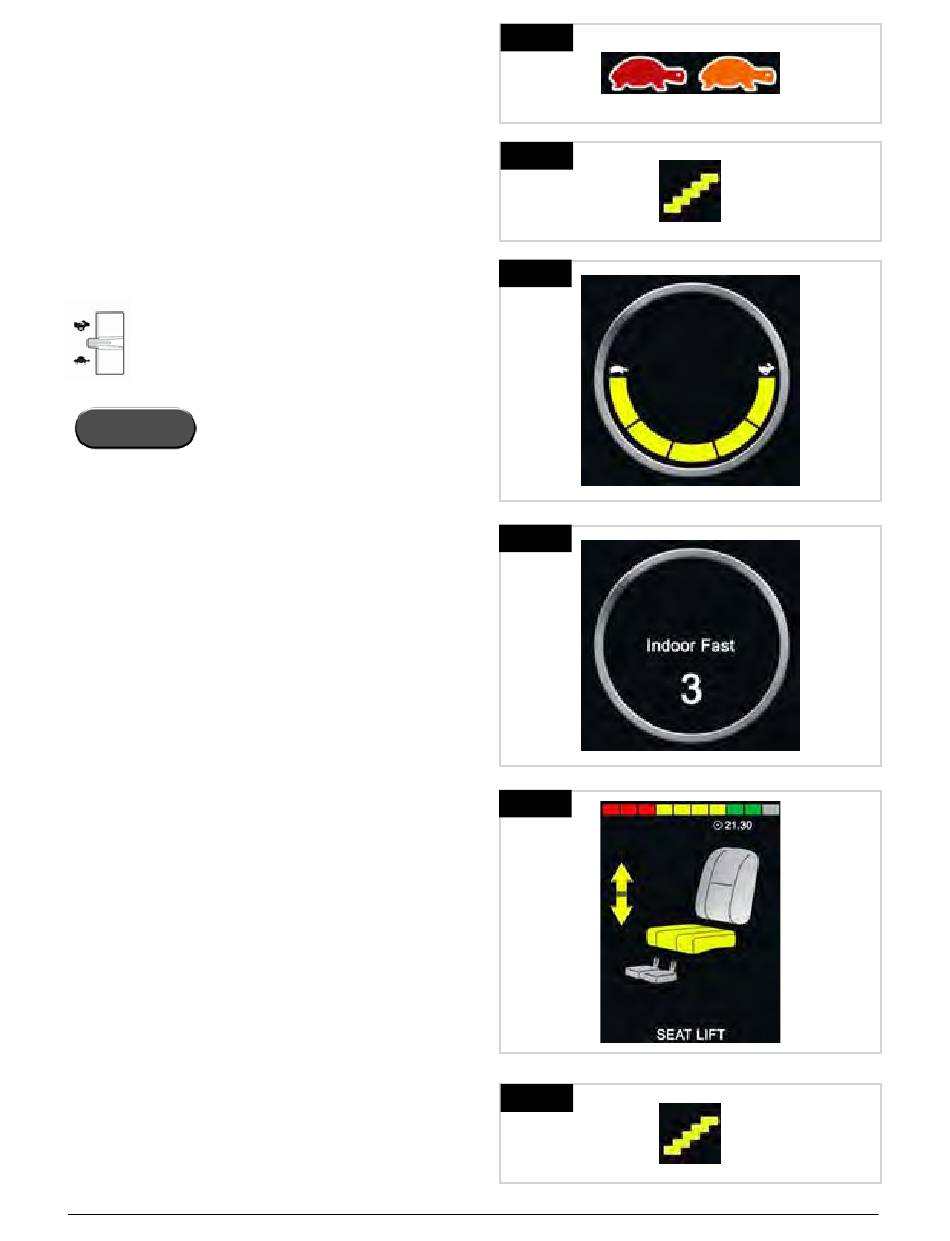

INHIBIT (Fig 19.19)
If the wheelchair is being inhibited from driving, then this red
symbol will be flashing.
If the speed of the wheelchair is being limited, for example, by
a raised seat, then this orange symbol will be displayed.
LATCHED DRIVE (Fig 19.20)
This symbol will be displayed if the control system is set for
latched drive operation.
MOMENTARY SCREENS (Fig 19.21 - Fig 19.22)
If the momentary screens are programmed to be displayed
then pressing the Speed or Profile Buttons will display screens
such as below.
Speed Switch.
Momentary Screen = Fig 19.21
Profile Button.
PROFILE
Momentary Screen = Fig 19.22
SEATING MODE SCREEN (Fig 19.23)
Displays symbols relevant to the seating control of the
wheelchair.
Displays the sections of the chair currently selected for
movement, the name given to the selection and a
direction arrow showing what sort of movement is
available.
Seating adjustment is achieved as follows:
• Move the joystick left or right to select the desired axis.
• Move the joystick forwards or backwards to move the seat.
LATCHED SEATING CONTROL (Fig 19.24)
This symbol will be displayed if the control system is set for
latched seating control operation.
247555 Rev. A
Fig.19.19
Fig.19.20
Fig.19.21
Fig.19.22
Fig.19.23
Fig.19.24
