20.6 Learning Sequential IR Codes

Multiple IR Codes can be learned against one Command in
the CJSM2 IR set up menu. This enables multiple IR Codes
to be transmitted through one Command in the CJSM2
when in IR mode.
Example of use:
1. The on/off function for multiple appliances (the TV and the
DVD for example) can be learned against one entry in the IR
Set up menu. The CJSM2 will then transmit the Codes for the
learned Command in one burst. In this case, turning the TV
and the DVD recorder on or off simultaneously.
To create a Sequence, relating to example 1 above:
• Select the Command to use as the Sequence initiator. In this
example, TV > On/Off.
• Select Learn Code, by deflecting the joystick to the right while
the Command is highlighted.
• Point the TV remote control at the CJSM2's Receiver LED and
press the On/Off button twice.
• After each successful learn operation a check momentarily
appears on the screen, select Learn Code again.
• Point the DVD remote control at the CJSM2's Receiver LED
and press the On/Off button twice.
• After each successful learn operation a check momentarily
appears on the screen, select Learn Code again.
• Complete the sequence by highlighting Exit and deflecting the
joystick to the left.

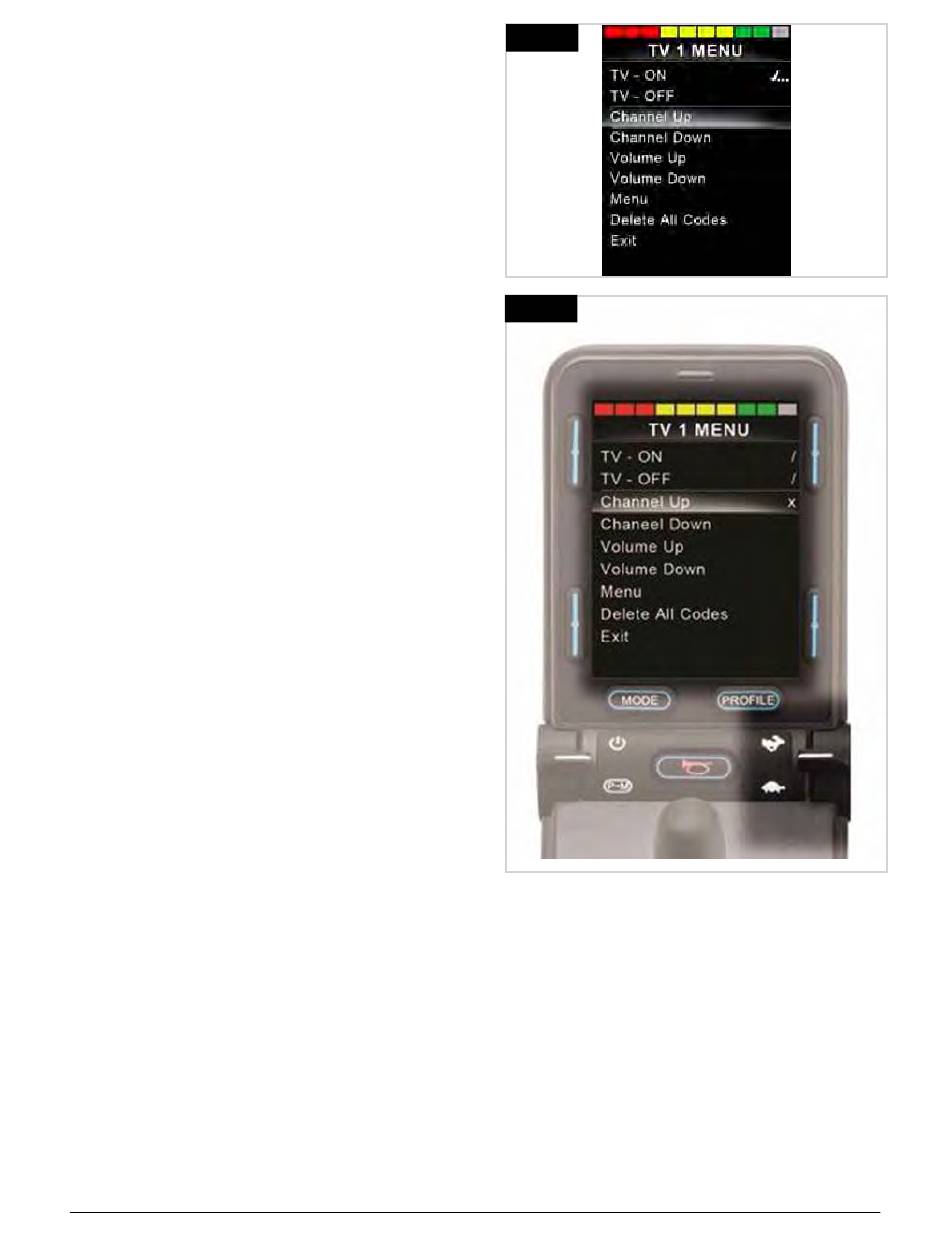

• This time the On/Off Command will have a Tick and 3 Dots
beside it, showing a Learned Sequence (Fig 20.12).

20.7 Enabling / Disabling IR Codes

IR Codes can be enabled or disabled in the IR Set-up Menu.
If a Code is disabled it will not transmit and will not appear in
IR Mode options.
• To disable an IR Code, deflect the speed paddle of the
CJSM2 up or down. A disabled IR Code appears with an X
against the highlighted Command (Fig 20.13).
• To enable an IR Code, deflect the speed paddles on the
CJSM2 up or down. An enabled Code appears with a check
against the highlighted Command.
247555 Rev. A
Fig.20.12
Fig.20.13
82 R-Net Control System
