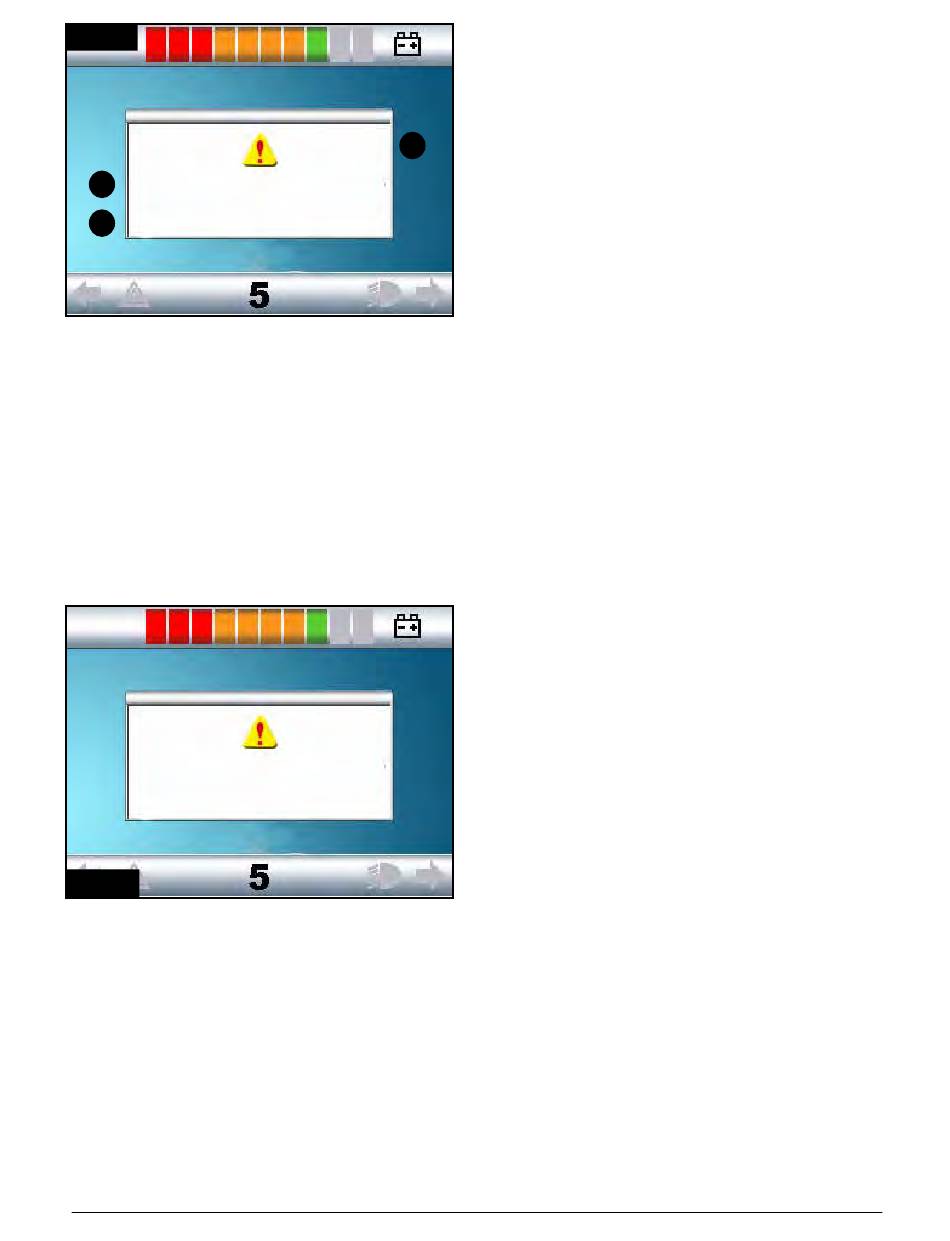

15.16 Main Screen Area: Diagnostics (Fig 15.16)
When the control system safety circuits have operated and the
control system has been prevented from moving the wheelchair
a diagnostics screen will be displayed.
This indicates a system trip, i.e. the R-Net has detected a
problem somewhere in the wheelchair's electrical system.
C
2C00
If the error is in a non-active module, for example in the
Intelligent Seating Module but with a drive Profile selected,
then drive will still be possible. However, the diagnostic screen
will appear intermittently.
A. 15.17 Identified Module
This identifies which module of the control system has
registered the problem, such:
• PM
• JSM = Joystick Module
• ISM
B. 15.18 Trip Text
The Trip Text gives a brief description of the trip type.
C. 15.19 Trip Code
The 4 digit code displayed gives the exact trip that has been
recorded.
15.20 Diagnostic Procedure (Fig 15.17)
Please follow this procedure:
2C00
• Read and note the Trip Text displayed, the identified
• Switch off the control system.
• Make sure that all connectors on the listed Module and
• Check the condition of the battery.
• Note the Trip Text description.
• Switch on the control system again and try to drive the
51
= Power Module
= Intelligent Seating/lighting Module
Module and the Trip Code.
the wheelchair are mated securely.
wheelchair. If the safety circuits operate
again, switch off and do not try to use the wheelchair.
Contact your authorized dealer.
