20.3 IR Code User Menu

IR Control Mode is accessed through Mode selection, i.e.
operation of the R-Net system's Mode button or Command.
IR Control Mode will only be available if IR Codes have
been stored in the CJSM2.
There are two ways to store IR Codes in the CJSM2:
1. Copying codes from IR handsets, (e.g. Television
remote).
2. Programming from the PC based IR Configuration Tool,
(contact your Sunrise Medical authorized agent).
3. Enter IR Mode to access the list of available IR
Appliances,(Fig 20.2).
Navigate the User Menu as below (Fig 20.3 to 20.4)
i. Forward joystick deflections will highlight the Appliance
above.
ii. Reverse joystick deflections will highlight the Appliance
below.
iii. Left or Right joystick deflections will enter the highlighted
Appliance's sub-menu, which will contain all the IR
Commands for that Appliance
iv. Left or Right joystick deflections will then activate the
highlighted IR Command.
For each Appliance there is a list of associated IR
Commands: For example, if TV is selected commands such
as:
TV – ON, TV – OFF, Channel Up, Channel Down, Volume Up,
and Volume Down may be displayed.
When the CJSM2 is transmitting the selected command, it is
highlighted with a red background.
NOTE:
• If IR Mode is not available and there are stored IR Codes,
then please refer to your Sunrise Medical authorized dealer.
• The CJSM2 contains a default menu. If required, the IR
Configuration tool can be used to change this default menu.
Please refer to your Sunrise Medical authorized dealer.

20.4 IR Set Up Menu

On entering the IR Set-up Menu, the default appliances will
appear (Fig 20.2).
By selecting an appliance, then its commands will be shown
(Fig 20.3).
If a Command is checked, this means it has a stored IR Code
(Fig 20.5).
If it is not checked, then there is no stored IR Code for that
Command.
IR Codes can be stored or deleted as detailed in the following
sections.
247555 Rev. A

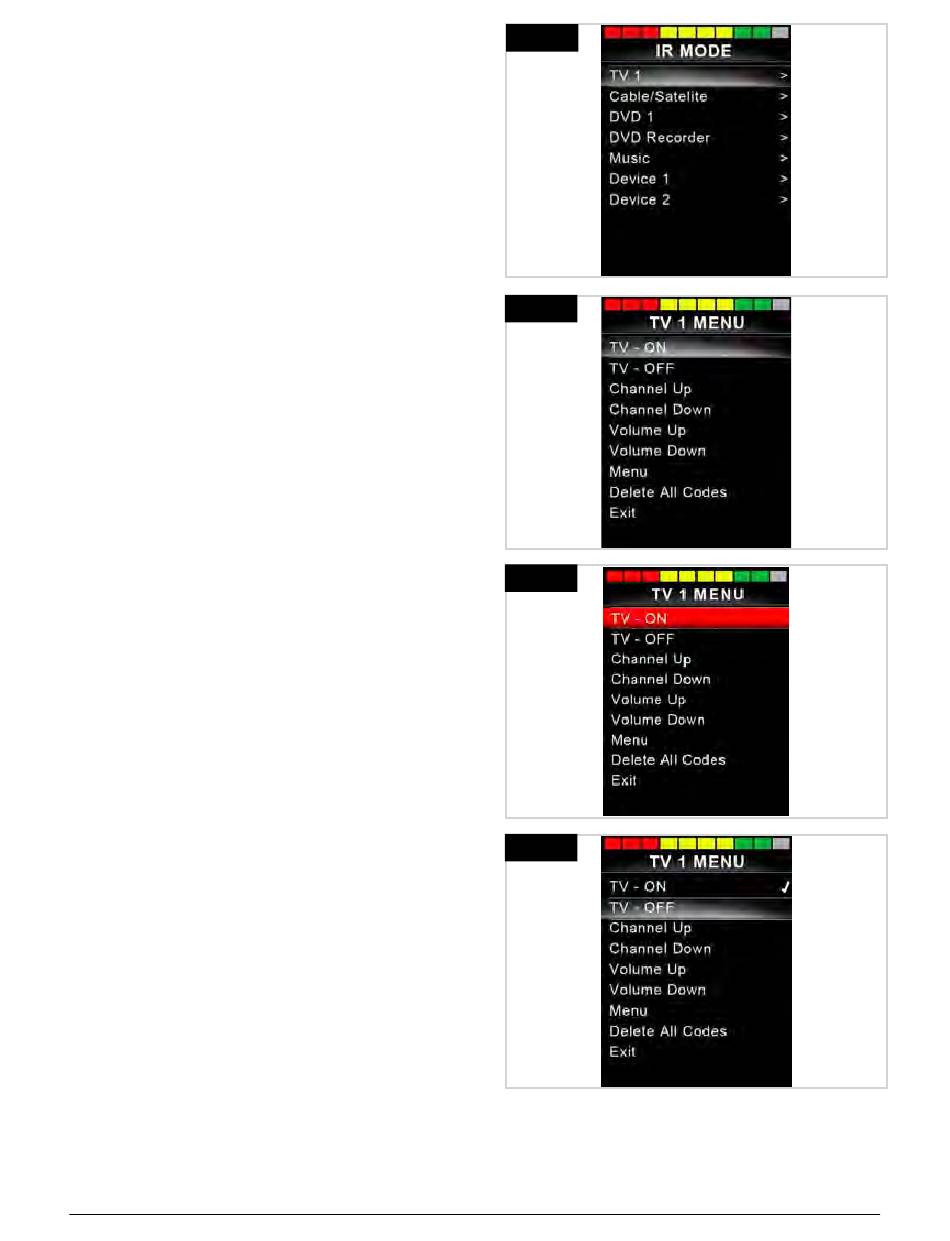

Fig.20.2
