Indoor-Drive
Fig.15.12
Fig.15.13
Fig.15.14
Indoor-Drive
Fig.15.15
247555 Rev. A

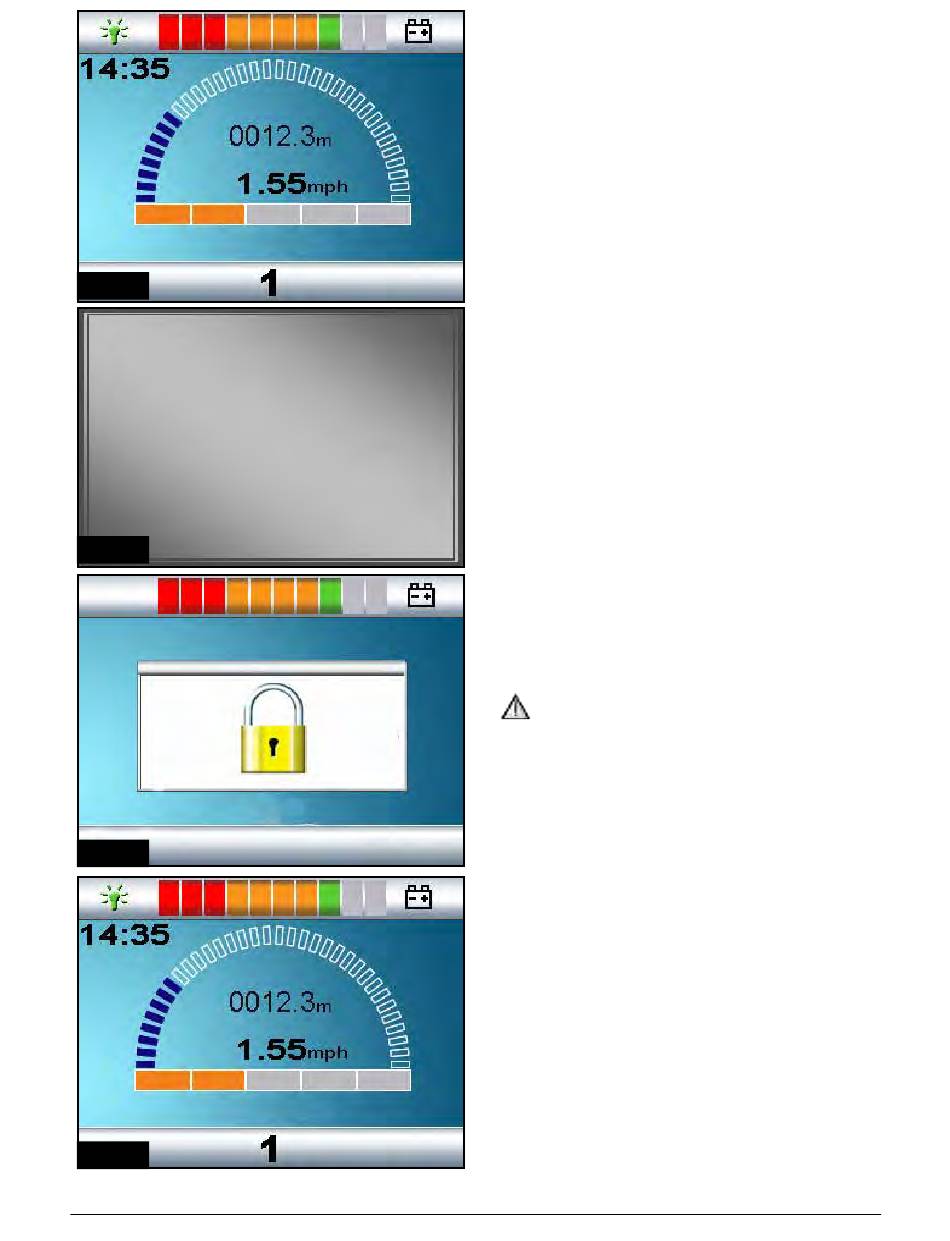

15.15 Locking the Joystick Module (Fig 15.12 - 15.15)
To lock the wheelchair:
• This involves a series of either joystick movements, or if the
SID is a switch type device, button presses.
• While the control system is switched on (Fig 15.12) depress
and hold the On/Off button on the Omni or SID.
• After 1 second the control system will beep and the screen
will go blank (Fig 15.13). Now release the On/Off button.
Deflect the SID joystick forwards or depress the forwards
•
switch on the SID, until the control system beeps.
• Deflect the SID joystick backwards or depress the reverse
switch on the SID, until the control system beeps.
• Release the joystick/button, there will be a long beep.
• The wheelchair is now locked.
• The following icon will be displayed (Fig 15.14), the next time
the Control System is switched on.
• If an LED Joystick Module is also fitted the Speed Indicator
LEDs will ripple from left to right.
To unlock the wheelchair:
• If the control system has switched off, press the On/
Off button on the Omni or SID. The "Locked " symbol is
displayed (Fig 15.14).
• Deflect the SID joystick forwards or depress the forwards
switch on the SID, until the control system beeps.
• Deflect the SID joystick backwards or depress the reverse
switch on the SID, until the control system beeps.
• Release the joystick/button, there will be a long beep and the
screen will illuminate (Fig15.15).
• The wheelchair is now unlocked.
WARNING!
It is not possible to lock the control system using the sequence
method if a Single Switch Scanner Type SID is being used.
50 R-Net Control System
