4.5 Actuator Selection Screen (Seating)
This is accessed through the MODE button.
To adjust the seat position the actuator screen must
be visible.

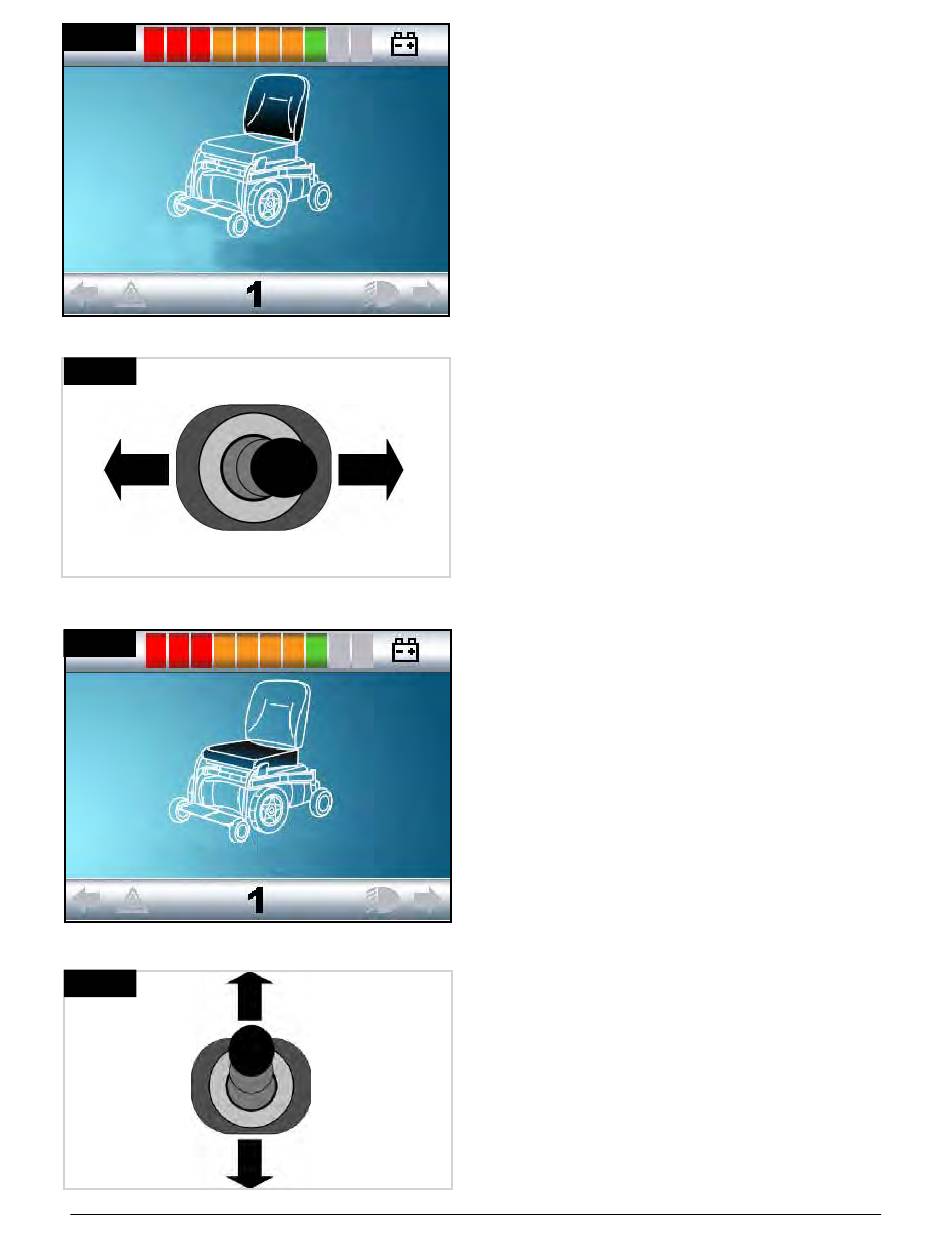

Depress the Mode Button to scroll through the Mode
screens until you reach the actuator screen (Fig 4.26).
Actuator adjustment is achieved as follows.
1. Move the Joystick sideways to the left or right to
select the desired axis (Fig 4.27). The axis is
indicated by the section of the wheelchair that is
highlighted (Fig 4.28).
2. Move the joystick forwards or backwards to move
the selected actuator correspondingly (Fig 4.29).
3. Repeat these steps for each actuator that requires
adjustment.
4. To drive again, depress the Mode button until the
Drive screen is reached or, in the case of the LED
joystick module, until the Speed Indicator returns to
its normal state.
