Sunrise Medical Quickie R-Net Control System Instructions For Use Manual page 77

DISTANCE
A right joystick deflection will enter a sub-menu with the
following odometer data and function options:
Total Distance
This is a value held in the Power Module and relates to the
total distance driven using that Power Module.
Trip Distance
This is a value held in the Joystick Module and relates to the
total distance driven since the last reset.
Display Distance
Sets whether Total Distance or Trip Distance appears as the
odometer display on the Joystick Module.
Clear Trip Distance
A right joystick deflection will clear the Trip Distance value.
BACKLIGHT
A right joystick deflection will enter a sub-menu with the
following Backlight related function options:
Backlight
This sets the intensity of the LCD backlight, adjustable range
is 0% to 100%.
Auto Backlight
The Joystick Module contains an ambient light sensor to
automatically adjust screen brightness. The programmable
options are On or Off. If set to On, the display adjusts the
screen brightness based on the light sensor reading. If set to
Off the screen brightness will not change with changes in light
intensity.
Backlight Timeout
This adjusts the period of time the backlight will remain active
once no further instructions are received from an input device,
adjustable between 0 and 240 seconds (4 minutes).
BLUETOOTH
A right deflection of the joystick will enter a sub-menu to
configure the Bluetooth Mode screen.
Refer to chapter Bluetooth Set-up and Operation for more
details.
IR SETUP
A right deflection of the joystick will enter a sub-menu for
learning and deleting IR codes.
Refer to chapter IR Set-up and Operation for more details.
247555 Rev. A

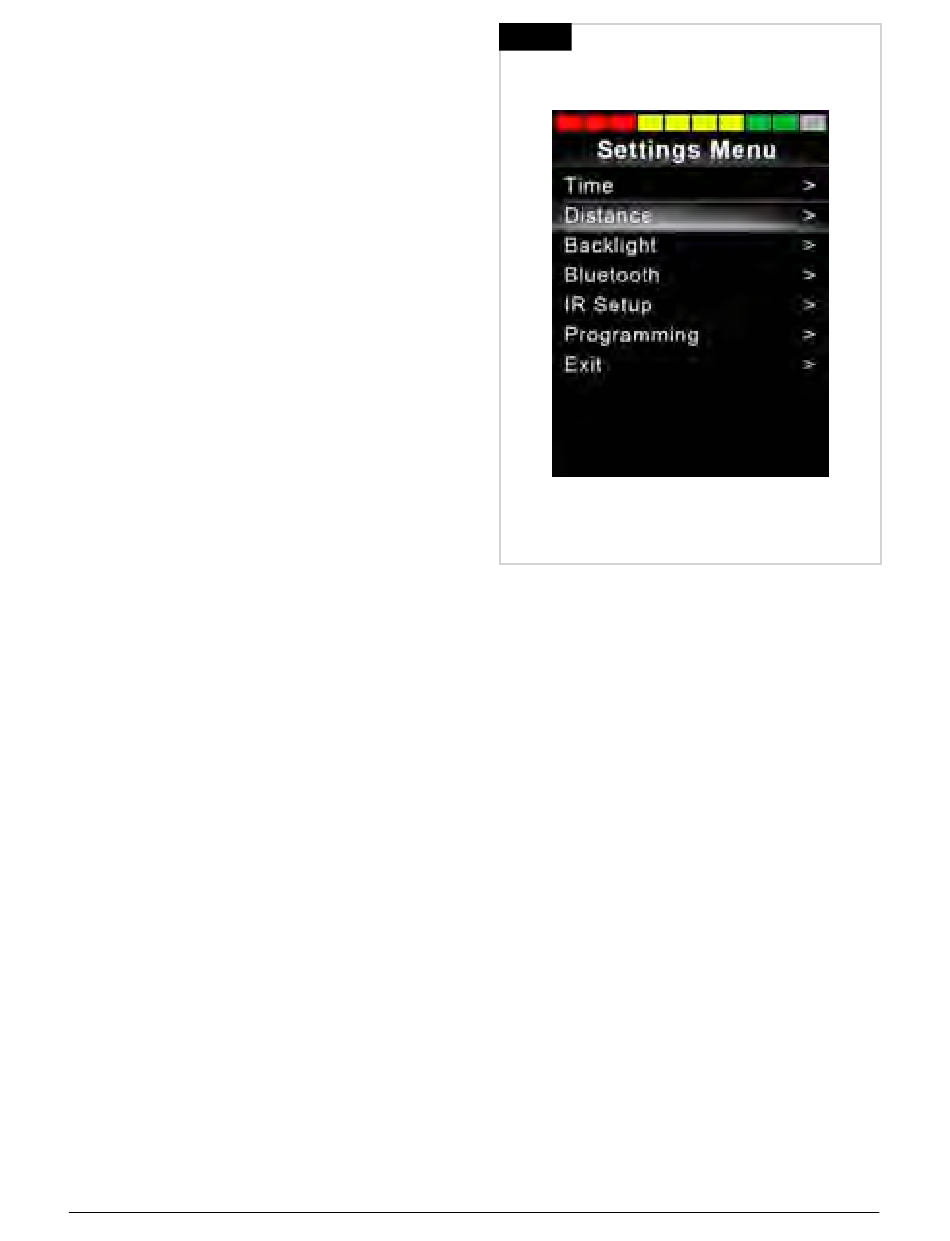

Fig.19.35
77 R-Net Control System
