20.0 CJSM2 IR Setup and Operation

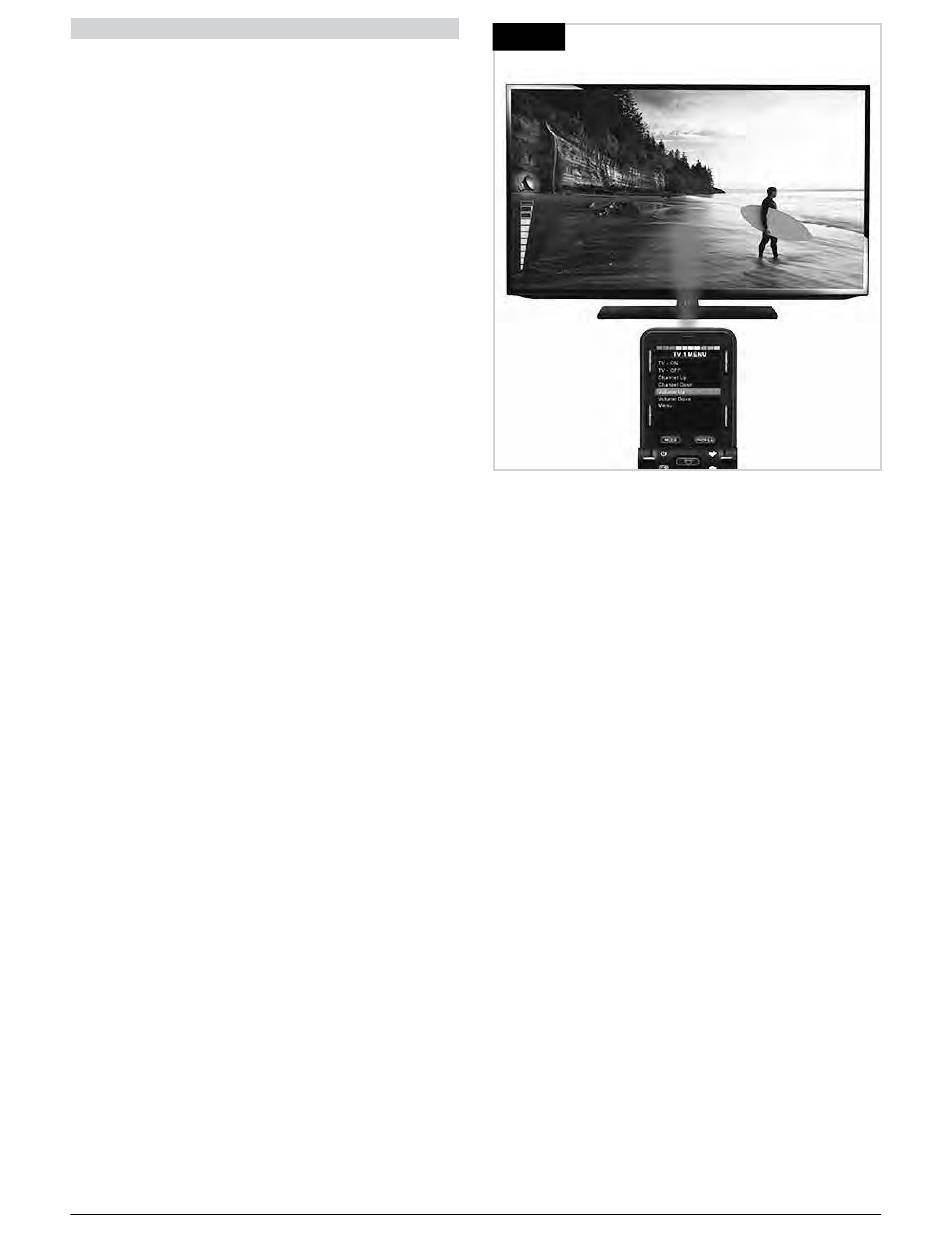

Fig.20.1

20.1 Introduction

The CJSM2 includes an IR transmitter and receiver to replicate
commonly used IR devices, such as remote controls for TVs,
DVDs, Cable/Satellite or environmental controls such as
automatic door openers (Fig 20.1).

20.2 CJSM2 Used With An Omni-IR

If there are two devices with IR connected into a system, for
example a CJSM2 and an Omni-IR, only one of the devices
can have IR codes stored in it.
If there are IR codes in both devices, then IR Mode will not be
accessible.
If a CJSM2 and an Omni-IR are connected into a system, the
Omni-IR's learning function is disabled and IR codes must be
learned through the CJSM2.
To ensure the CJSM2 supports a greater number of modern
day IR appliances, the storage format of its IR codes is different
to that of the Omni-IR.
Therefore, it is not possible to use the IR Configurator to
exchange IR codes between the devices, (contact your Sunrise
Medical authorized dealer).
IR Control Mode is accessed in the normal way of Mode
selection, i.e. operation of the R-Net system's Mode button or
Command.
IR Control Mode will only be available if IR Codes have been
stored in the CJSM2.
There are two ways to store IR Codes in the CJSM2: by
'learning' Codes from IR handsets; or by programing from the
PC based IR Configuration Tool, (contact your Sunrise Medical
authorized dealer).
Refer to section IR Set Up for details of the method.
NOTE:
If IR Mode is not available and there are stored IR Codes, then
refer to your Sunrise Medical authorized dealer.
