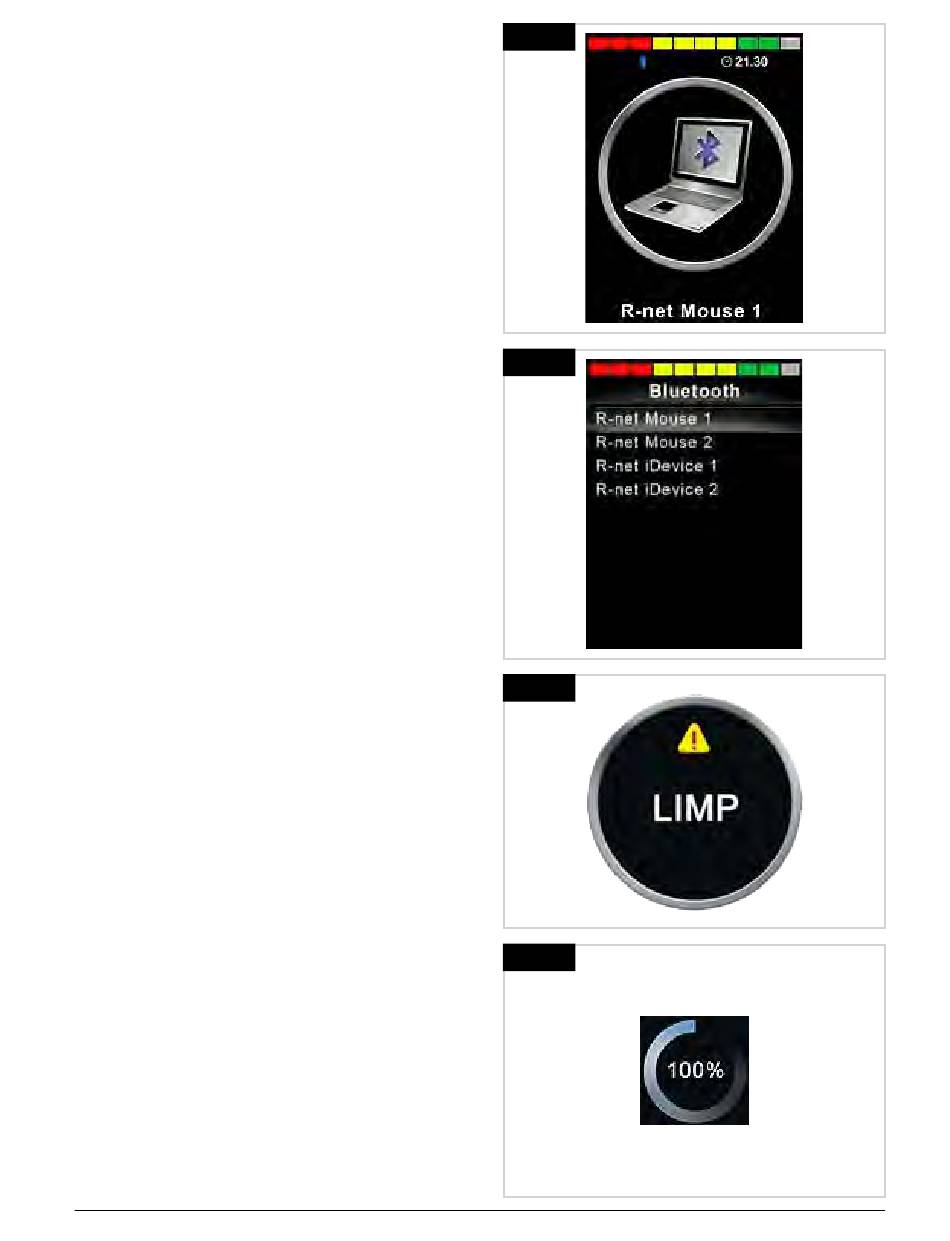

BLUETOOTH MODE SCREEN (Fig 19.25 - 19.26)
The initial Bluetooth Mode screen will be dependent upon
whether the CJSM2 has been set up to control one or more
devices.
If set up to control just one device, a screen such as shown in
Fig 19.25, will appear.
If set up to control more than one device, a screen such as
shown in Fig 19.26 will appear.
The joystick should be used to navigate the menu and select
the device to control.
Forward and reverse deflections navigate the menu.
A right deflection selects the highlighted device.
For further details of Bluetooth operation, refer to the Bluetooth
chapter.
BLUETOOTH SCREEN PROGRAMING
The text to describe each device can be set via the
programmable parameter, "Device Name".
The screen symbol for each device can be set via the
programmable parameter, "Screen Graphic".
Please contact your local approved Sunrise Medical
authorized dealer.
DISCONNECTING A BLUETOOTH DEVICE
Enter the Settings Menu and select Bluetooth.
Set the device you wish to disconnect from On to Off.
FLIGHT-SAFE MODE
It is common practice to disable wireless transmissions while
on an aircraft.
Enter the Settings Menu and select Bluetooth.
Set all the devices to Off.
GENERAL INFORMATION SYMBOLS
LIMP MODE (Fig 19.27)
This message is displayed if a user switch has become
disconnected, the switch detect has been set to on, and the
control system is programmed to still allow drive, at a reduced
rate.
TIMER (Fig 19.28)
This symbol is displayed when the control system is changing
between different states. An example would be entering into
module reconfiguration.
247555 Rev. A
Fig.19.25
Fig.19.26
Fig.19.27
Fig.19.28
