IR MODE
TV1
Cable/Satellite
DVD

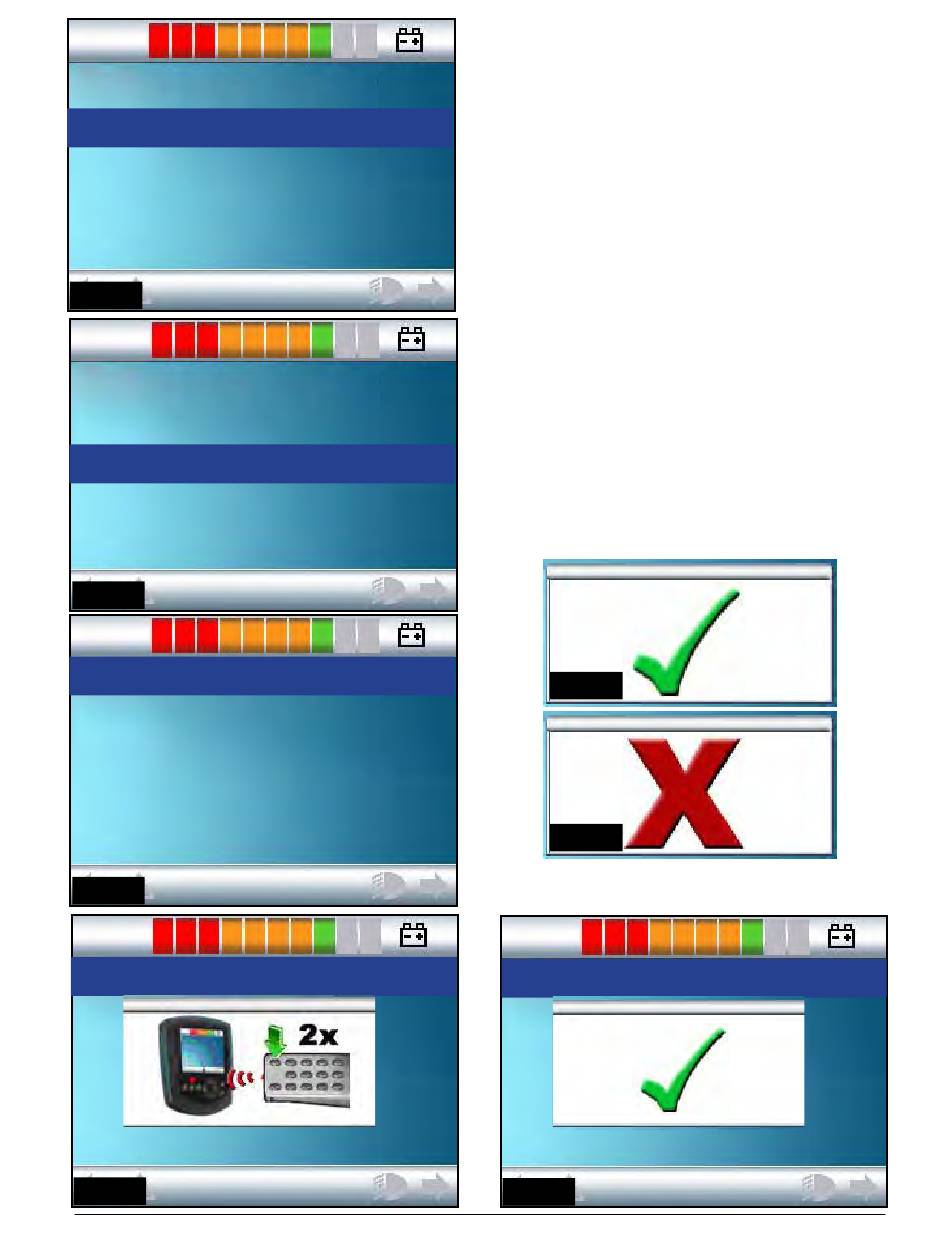

Fig.16.7
IR MODE
On/Off
Channel Up
Channel Down
Volume Up
Fig.16.8
Learn Code
Delete Code
Exit
Fig.16.9
Learn Code
D
Exit
Fig.16.10
247555 Rev. A

16.4 Learning an IR Code

IR Codes can be stored or deleted as detailed in the
following section.
1. Enter the IR Set Up Menu (Section 16.2).
>
2. Select an appliance. E.g. TV1 (Fig 16.7).
>
3. The Commands for the appliance will appear on the
screen (Fig 16.8).
>
4. Select the Command to be learned. In this example,
TV1 > Channel Up (Fig 16.8).
5. Select Learn Code, by using the Right button on the
Omni while the Command is highlighted (Fig 16.9).
6. Point the TV remote control at the Omni's Receiver
LED and press the TV remote Channel Up button
twice (Fig 16.10).
7. A check denotes a successful learn operation
(Fig 16.11 and 16.13).
8. A cross denotes an unsuccessful learn operation,
please retry (Fig 16.12).
Fig.16.13
54
Fig.16.11
Fig.16.12
Learn Code
D
Exit
