Fig.15.0
1
Fig.15.1
Fig.15.2
OFF
Fig.15.3
OFF
Fig.15.4
OFF
Fig.15.5
Indoor-Drive
Fig.15.6
FORWARDS
Fig.15.7
247555 Rev. A

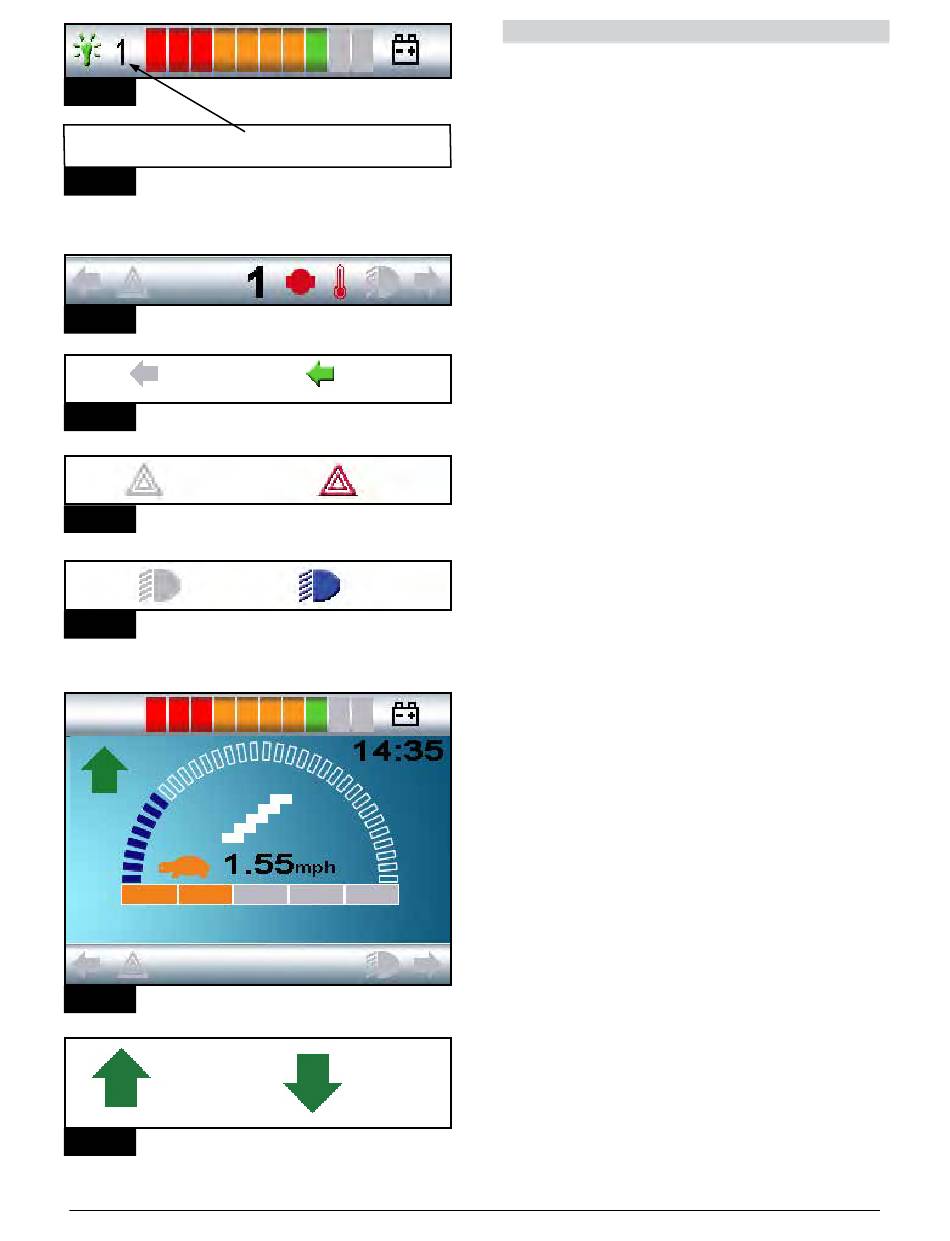

15.0 Omni LCD Screen

15.1 LCD Screen Details

The information in this section is in addition to the information
contained within Chapter 4. Please refer to Chapter 4 and
combine it with this section for a complete description of all the
LCD screen graphics.
15.2 Top Bar (Fig 15.0)
15.3 Port Identify (Fig 15.1)
If the Omni has been configured to accept 2 input devices the
input device in command will be identified by either:
1 – Port 1
15.4 Base Bar (Fig 15.2)
ON
15.5 Indicator Icons (Fig 15.3)
The Indicator icons will flash when the respective indicators are
active.
The Indicator icons will only be visible when an Intelligent
Seating / Lighting Module
ON
Module is connected within the system.
ON
15.6 Hazards Icon (Fig 15.4)
The Hazards icon and indicator icons will flash when the
Hazard Warning lights have been activated.
The Hazards icon will only be visible when an Intelligent
Seating / Lighting Module is connected within the system.
15.7 Lights Icon (Fig 15.5)
The Lights icon will be switched on when the lights have been
activated.
The Lights icon will only be visible when an Intelligent Seating /
Lighting Module is connected within the system.
15.8 Main Screen Area (Fig 15.6)
15.9 Selected Direction Indicator (Fig 15.7)
These are only displayed if the Omni has been configured
to use a 3 axis proportional SID. Refer to the Operation with 3-
axis Proportional and Switch type SIDs (Section 13.9-13.10).
REVERSE
48
2 – Port 2
