9.0 The Charger Socket

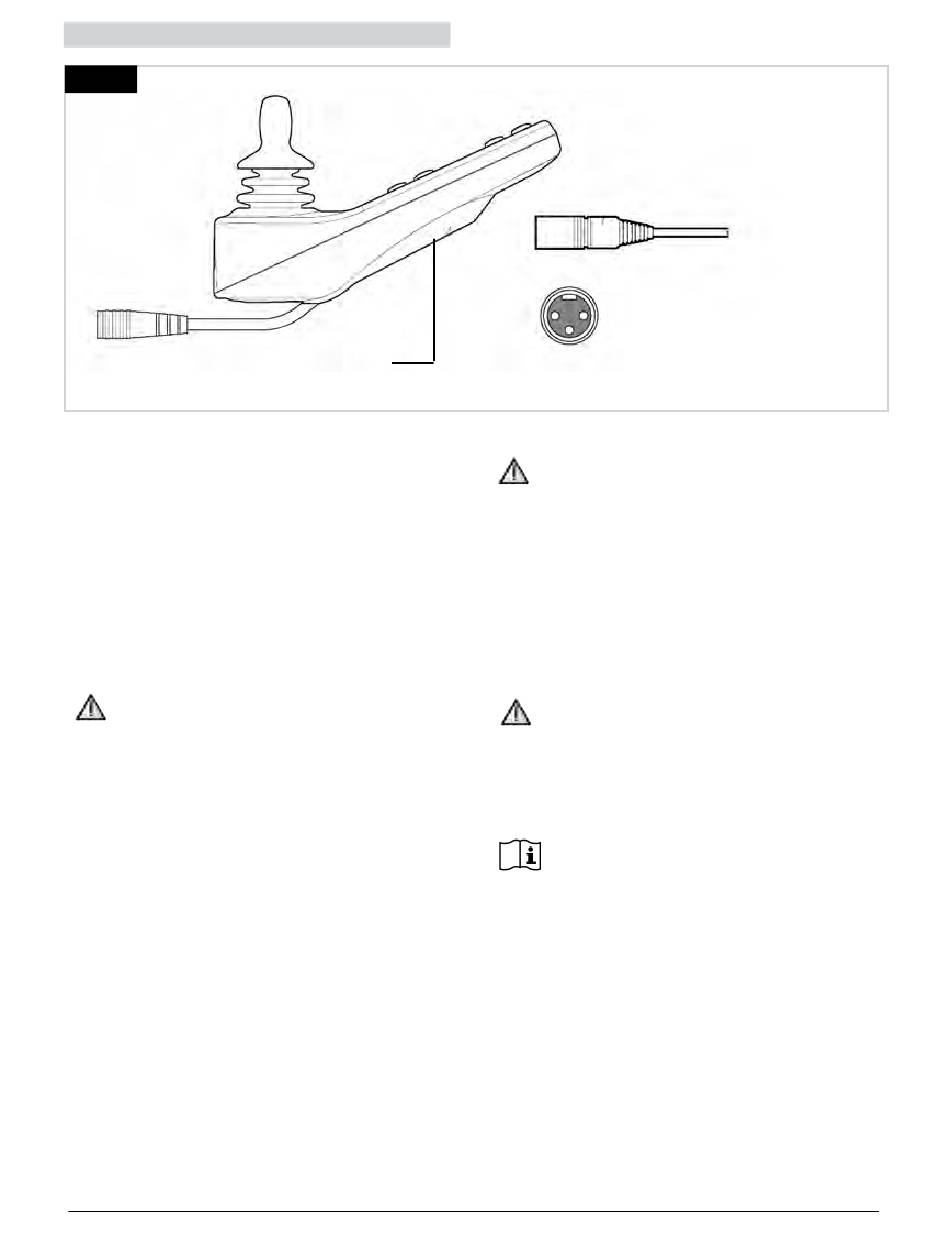

Fig.9.0

9.1 Battery Charging

To charge the wheelchair batteries:
• Connect the charger plug into the battery charger socket on
the R-Net JSM.
• You will not be able to drive the wheelchair when the charger
is connected.
• To connect the charger plug, ensure the single pin is at the
bottom, as shown in Fig 9.0, then offer the charger plug to the
R-Net in a horizontal orientation.
• The molded guide on the R-Net will help you to locate the
plug. Ensure the plug is pushed fully into position.
WARNING!
• Do not exceed the maximum charging current of 12A-rms.
Always use an off-board charger fitted with a Neutrik NC3MX
plug. Failure to observe these conditions could result in poor
contact resistance in the charger connector resulting in
overheating of the charger plug. This presents a potential burn
hazard for the user. Sunrise Medical accepts no liability for
losses of any kind arising from failure to comply with this
condition.
• Do not disconnect batteries or open-circuit the circuit breaker
while charging is in progress. Failure to observe this condition
could result in a burns hazard or fire hazard.
• Sunrise Medical accepts no liability for losses of any kind
arising from failure to comply with this condition.
247555 Rev. A
Charger Socket Single Pin to Bottom
WARNING!
• Battery chargers are only intended to charge 24V; Group 22,
Group 24, and Group 34; Lead Acid or Gel style batteries.
• Only use the battery charger that has been supplied with your
wheelchair.
• The use of incorrect chargers could damage the batteries,
wheelchair, control system or charger itself, or may result in
parts overheating creating the potential for burns or even fire.
• Sunrise Medical accepts no liability for losses of any kind if the
charger used is incompatible with the control system or any
other part of the wheelchair system.
DANGER!
• When charging the battery charger can become hot and could
potentially cause a burn.
For comprehensive instructions and advice on
Batteries and Battery Charging, please consult
your wheelchair Owner's Manual and the
Owner's Manual supplied with the Battery
Charger.
