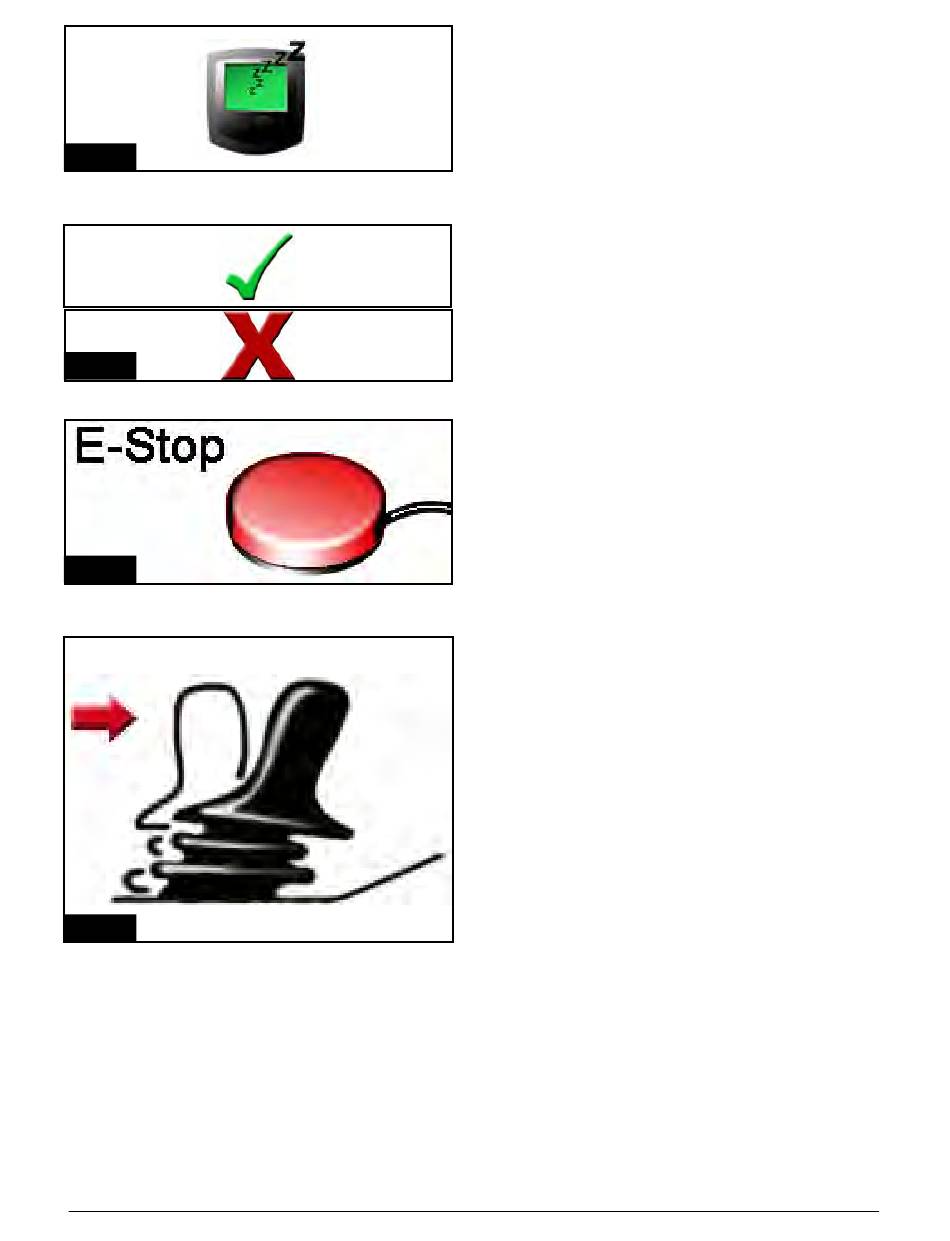

Sleep (Fig 4.20)
This symbol will be displayed for a short time before the R-Net
enters into a sleep state.
Cross and Check (Fig 4.21)
These symbols will be displayed during configuration
procedures.
1. Process completed correctly.
2. Process not completed correctly.
E-stop (Fig 4.22)
If the External Profile Switch is activated during drive or
actuator operation, this symbol will be displayed.
Joystick Displaced (Fig 4.23)
If you operate the Joystick before or just after you switch the
control system on, the screen will flash the joystick displaced
screen.
You must release and center the Joystick to resume normal
operation. If you do not release the Joystick within five
seconds the wheelchair will not be able to move, even if you
release the Joystick and operate it again. The screen will
display a diagnostic screen at this time. You can reset this
condition by switching the control system off and on again.
