Fig.4.24
PM
B
Low Battery
C
Fig.4.25
PM
Low Battery
247555 Rev. A
A
2C00
2C00
18

4.4 LCD Joystick Diagnostic Guide

When the control system safety circuits have operated and the
control system has been prevented from moving the
wheelchair, a diagnostics screen will be displayed.
This indicates a system trip e.g., the R-Net has detected a
problem somewhere in the wheelchair's electrical system.
If the error is in a non-active module (e.g., in the Intelligent
Seating Module), with a drive Profile selected, then drive will
still be possible; however, the diagnostic screen will appear
intermittently.

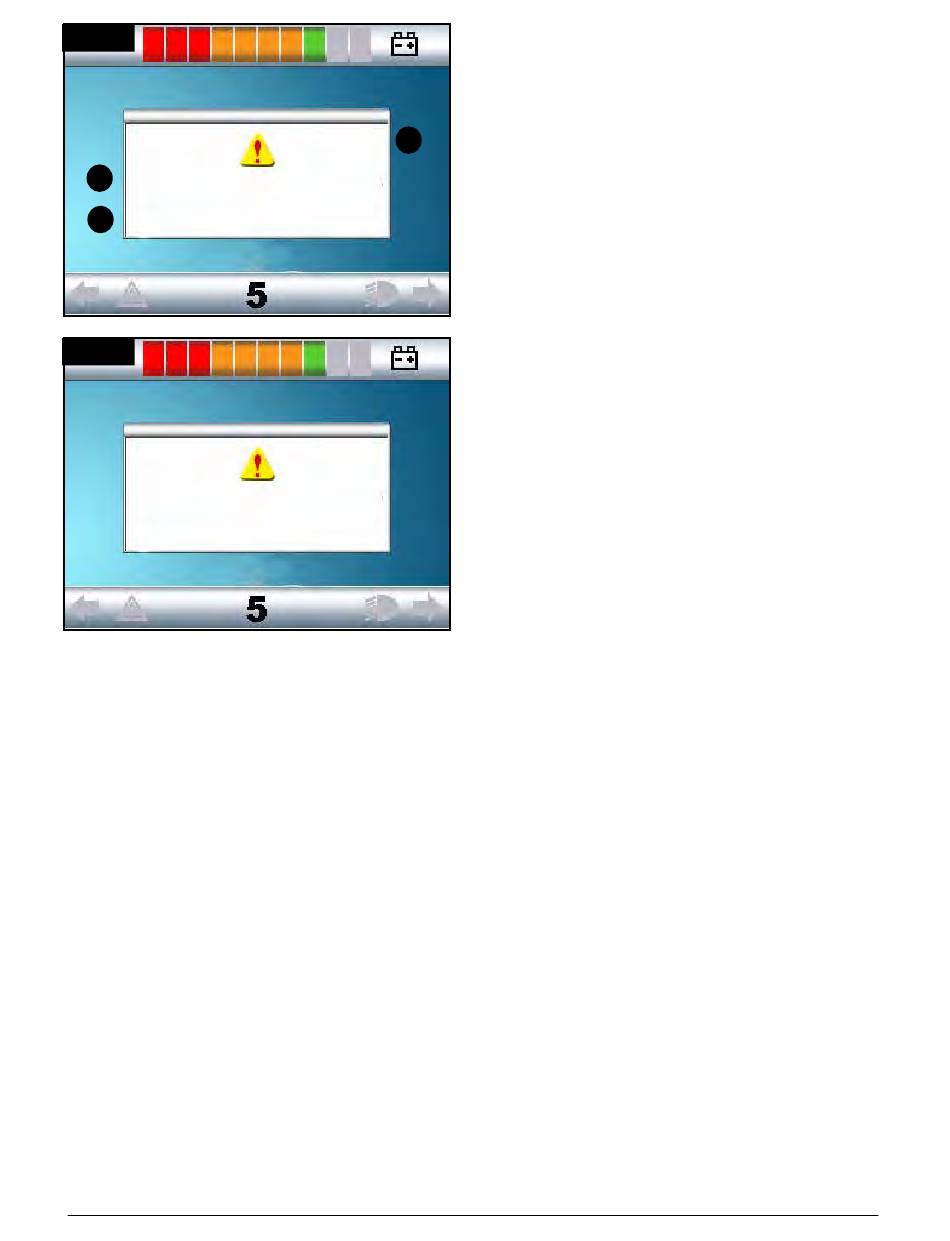

Screen Area Fig (4.24)
A. Trip Code
The 4-digit code displayed gives the exact trip that has been
recorded.
B. Identified Module
This identifies which module of the control system has
registered the problem, such as:
• PM = Power Module
• JSM = Joystick Module
• ISM = Intelligent Seating / Lighting Module
C. Trip Text
The Trip Text gives a brief description of the trip type.
Diagnostic Procedure (Fig 4.25) (example)
Identified Module, (PM): = The Power Module
Trip Text: = Low Battery
Trip Code: = 2C00
This indicates the battery needs charging or there is a bad
connection.
Check the connections to the battery. If the connections
are good, try charging the battery.
Please follow this procedure:
1. Read and note the Trip Text displayed, the identified
module and the Trip Code.
2. Switch off the control system.
3. Make sure that all connectors on the listed Module and the
wheelchair are mated securely.
4. Check the condition of the battery.
5. Note the Trip Text description.
6. Switch on the control system again and try to drive
the wheelchair. If the safety circuits operate again, switch
off and do not try to use the wheelchair.
7. Contact your authorized dealer.
R-Net Control System
