Indoor-Drive
Fig.3.7
Fig.3.8
Fig.3.9
Indoor-Drive
Fig.3.10
247555 Rev. A

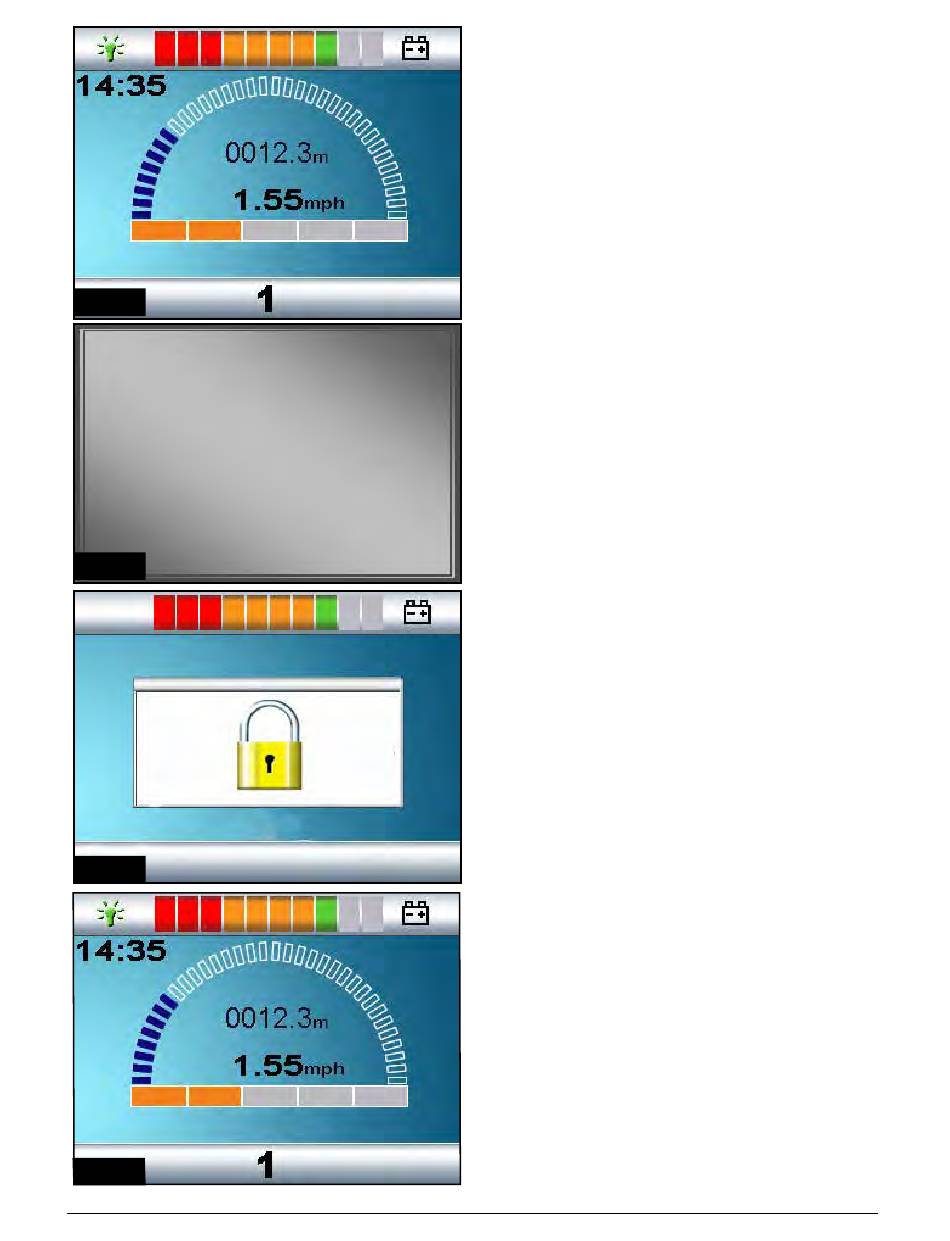

3.5 Locking the Joystick Module (Fig 3.7 - 3.10)
To lock the wheelchair:
• While the control system is switched on (Fig 3.7) depress
and hold the On/Off button.
• After 1 second the control system will beep and the screen
will go blank (Fig 3.8). Now release the On/Off button.
• Deflect the joystick forwards until the control system beeps.
• Deflect the joystick in reverse until the control system beeps.
• Release the joystick, there will be a long beep.
• The wheelchair is now locked.
• The following icon will be displayed (Fig 3.9), the next time
the Control System is switched on.
If an LED Joystick Module is fitted, the Speed Indicator
•
LEDs will ripple from left to right.
To unlock the wheelchair:
• If the control system has switched off, press the On/Off
button. The "Locked " symbol is displayed (Fig 3.9).
• Deflect the joystick forwards until the control system beeps.
• Deflect the joystick in reverse until the control system beeps.
• Release the joystick. There will be a long beep and the
screen will illuminate (Fig 3.10).
• The wheelchair is now unlocked.
