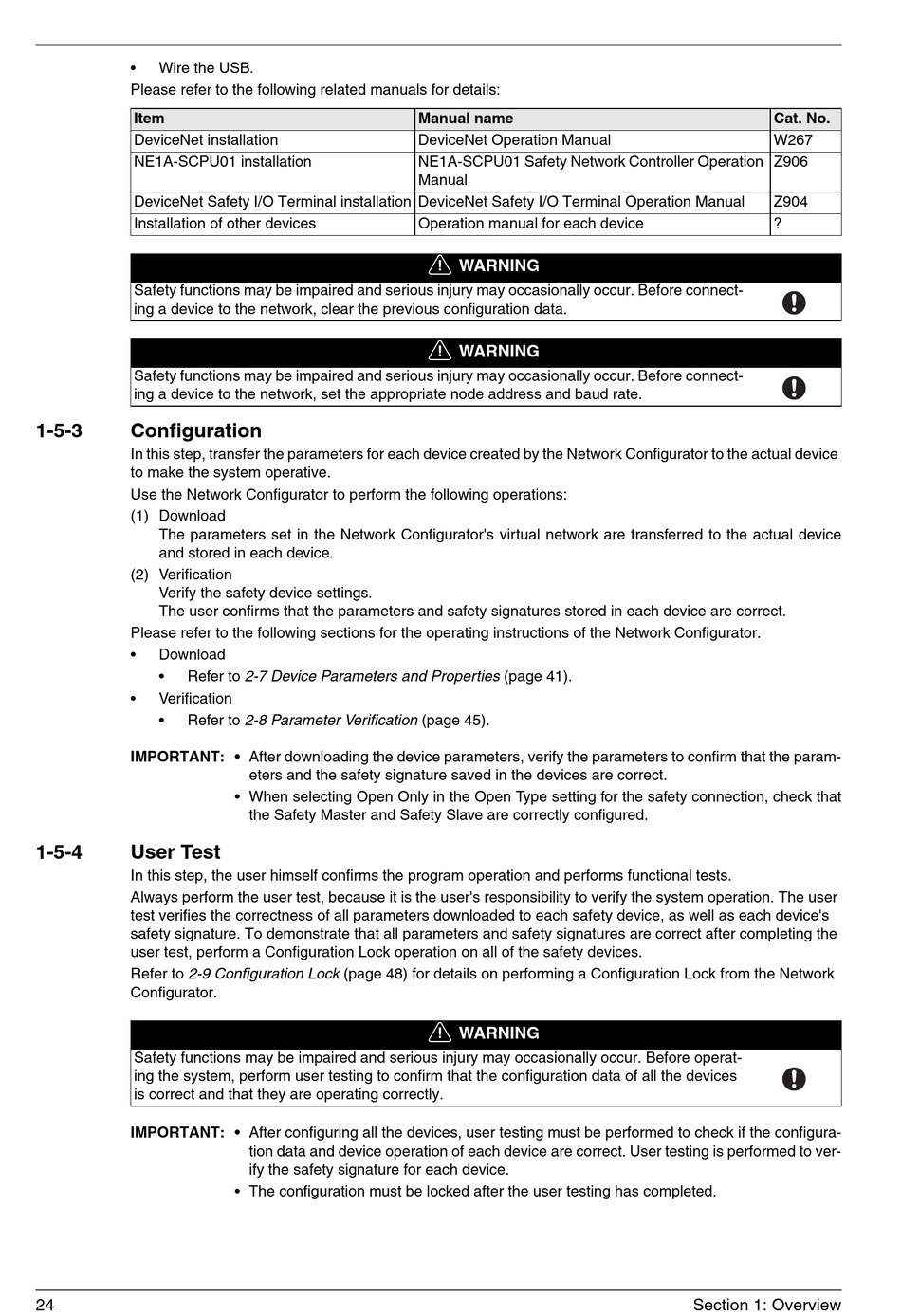

• Wire the USB.
Please refer to the following related manuals for details:
Item
DeviceNet installation
NE1A-SCPU01 installation
DeviceNet Safety I/O Terminal installation DeviceNet Safety I/O Terminal Operation Manual
Installation of other devices
Safety functions may be impaired and serious injury may occasionally occur. Before connect-
ing a device to the network, clear the previous configuration data.
Safety functions may be impaired and serious injury may occasionally occur. Before connect-
ing a device to the network, set the appropriate node address and baud rate.
1-5-3

Configuration

In this step, transfer the parameters for each device created by the Network Configurator to the actual device
to make the system operative.
Use the Network Configurator to perform the following operations:
(1) Download
The parameters set in the Network Configurator's virtual network are transferred to the actual device
and stored in each device.
(2) Verification
Verify the safety device settings.
The user confirms that the parameters and safety signatures stored in each device are correct.
Please refer to the following sections for the operating instructions of the Network Configurator.
• Download
• Refer to 2-7 Device Parameters and Properties (page 41).
• Verification
• Refer to 2-8 Parameter Verification (page 45).
IMPORTANT: • After downloading the device parameters, verify the parameters to confirm that the param-
1-5-4

User Test

In this step, the user himself confirms the program operation and performs functional tests.
Always perform the user test, because it is the user's responsibility to verify the system operation. The user
test verifies the correctness of all parameters downloaded to each safety device, as well as each device's
safety signature. To demonstrate that all parameters and safety signatures are correct after completing the
user test, perform a Configuration Lock operation on all of the safety devices.
Refer to 2-9 Configuration Lock (page 48) for details on performing a Configuration Lock from the Network
Configurator.
Safety functions may be impaired and serious injury may occasionally occur. Before operat-
ing the system, perform user testing to confirm that the configuration data of all the devices
is correct and that they are operating correctly.
IMPORTANT: • After configuring all the devices, user testing must be performed to check if the configura-
24
eters and the safety signature saved in the devices are correct.
• When selecting Open Only in the Open Type setting for the safety connection, check that
the Safety Master and Safety Slave are correctly configured.
tion data and device operation of each device are correct. User testing is performed to ver-
ify the safety signature for each device.
• The configuration must be locked after the user testing has completed.
Manual name
DeviceNet Operation Manual
NE1A-SCPU01 Safety Network Controller Operation
Manual
Operation manual for each device
! WARNING
! WARNING
! WARNING
Cat. No.
W267
Z906
Z904
?
Section 1: Overview
