Test Output Mode
Set the Channel Mode for the test output.
Channel Mode
Not Used
Standard Output
Pulse Test Output
Power Supply Output
Muting Lamp Output
5-4-3

Setting Safety Outputs

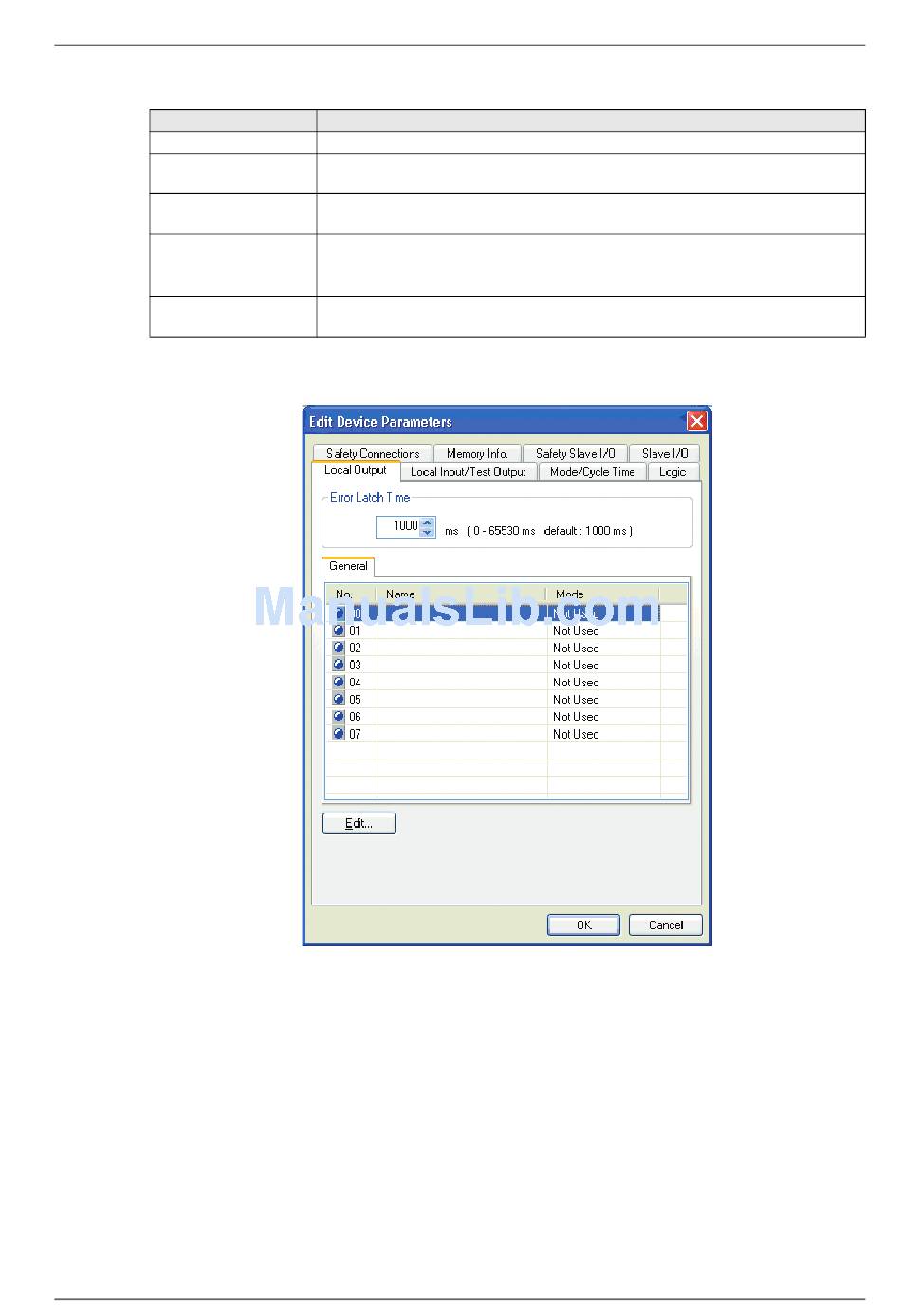

Click the Local OUT Tab to set the safety outputs.
Error Latch Time
This parameter applies to all the safety outputs. It sets the time to latch the error state if an error occurs in a
safety output.
Even if the cause of the error is removed, the error state will be latched for the time set here. It can be set
between 0 and 65,530 ms in 10-ms increments.
5-4 Local I/O Settings
Description
The corresponding Test Output is not used.
Specifies connecting to the input for a muting lamp or PLC. Used as a Monitor Out-
put.
Specifies connecting a device with a contact output in combination with a safety
input.
Specifies connecting to the power supply terminal of a Safety Sensor.
The voltage supplied from the Test Output Terminal to the I/O power supply (V, G)
is output.
Specifies a muting lamp output. (Setting supported only for T3 Terminal.) When
the output is ON, disconnection of the muting lamp can be detected.
93
