Setting the Operation Modes and Confirming the Cycle Time

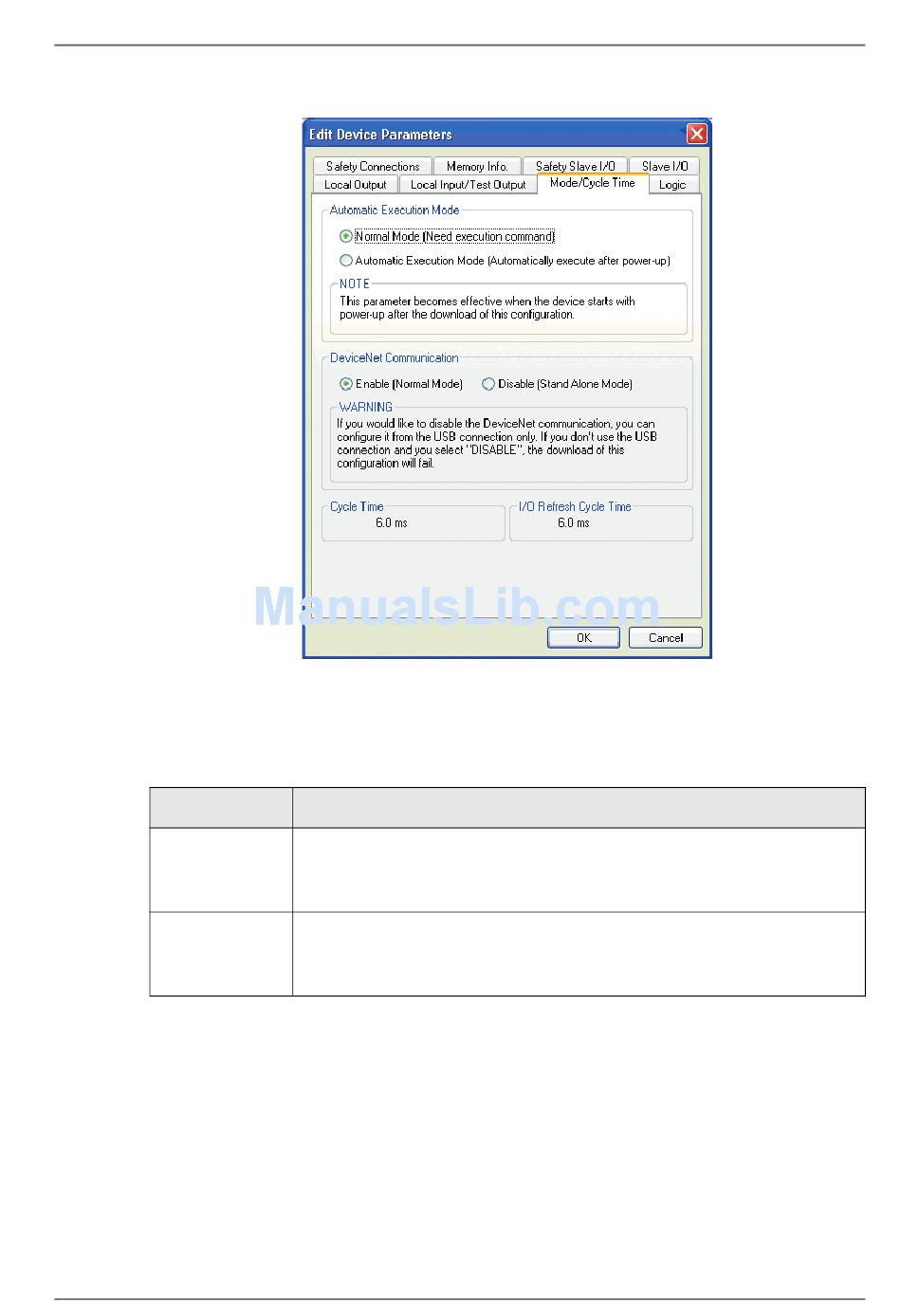

Click the Mode/Cycle Time Tab to display the NE1A-SCPU01 operation mode settings and the cycle time.
5-5-1

Setting the NE1A-SCPU01 Operation Modes

Automatic Execution Mode
Set the NE1A-SCPU01 automatic execution mode only after the system has been configured (i.e., after
downloading device parameters).
Automatic
Execution Mode
Normal Mode
Automatic Execu-
tion Mode
IMPORTANT:
Setting DeviceNet Communications
When the NE1A-SCPU01 is used in Standalone Mode, DeviceNet communications can be disabled. If De-
viceNet communications are disabled, the cycle time of the NE1A-SCPU01 will be shortened, but none of the
DeviceNet communications functions can be used.
IMPORTANT:

5-5 Setting the Operation Modes and Confirming the Cycle Time

Description
The unit starts in IDLE Mode after the power supply is turned ON.
To change to RUN Mode, the operating mode must be changed from the Network
Configurator.
Use this mode until device parameters have been verified.
If this mode is selected and the following conditions exist, the Controller will start in
RUN Mode after the power supply is turned ON:
• The configuration has been locked.
• The operating mode before the power was turned OFF was RUN Mode.
Even when Automatic Execution Mode is selected and the configuration has been locked,
the next startup will not be performed in RUN Mode if the power is turned OFF in IDLE
Mode. Turn OFF the power in RUN Mode to use automatic execution.
When disabling DeviceNet communications, connect the Network Configurator via the
NE1A-SCPU01USB port. If the parameters that disabled DeviceNet communications are
downloaded while connected via a DeviceNet Interface Card, an error will occur in the Net-
work Configurator because the DeviceNet communications of the NE1A-SCPU01 will
stopped.
