B-5 Advanced Settings: Connection, Communications Cycle Time,
Slave Function Settings, etc.
This section describes connection settings, device information and check selection displays, the communi-
cations cycle time setting, message timer settings, and slave function settings.
Advanced Setup
Advanced Setup Button after Selecting a Slave on the General Tab Page (Device - Parameter - Edit)
Advanced settings, including device information and check selection displays, and connection settings, can
be made for remote I/O communications.
Device Information Display and Check Selections
• Device Information Tab Page
It is possible to display device information and to perform checks for the slave devices. Use the following
procedure.
1. Select a slave device from the Registered Device List.
2. Click the Advanced Setup Button.
3. The following window will be displayed.

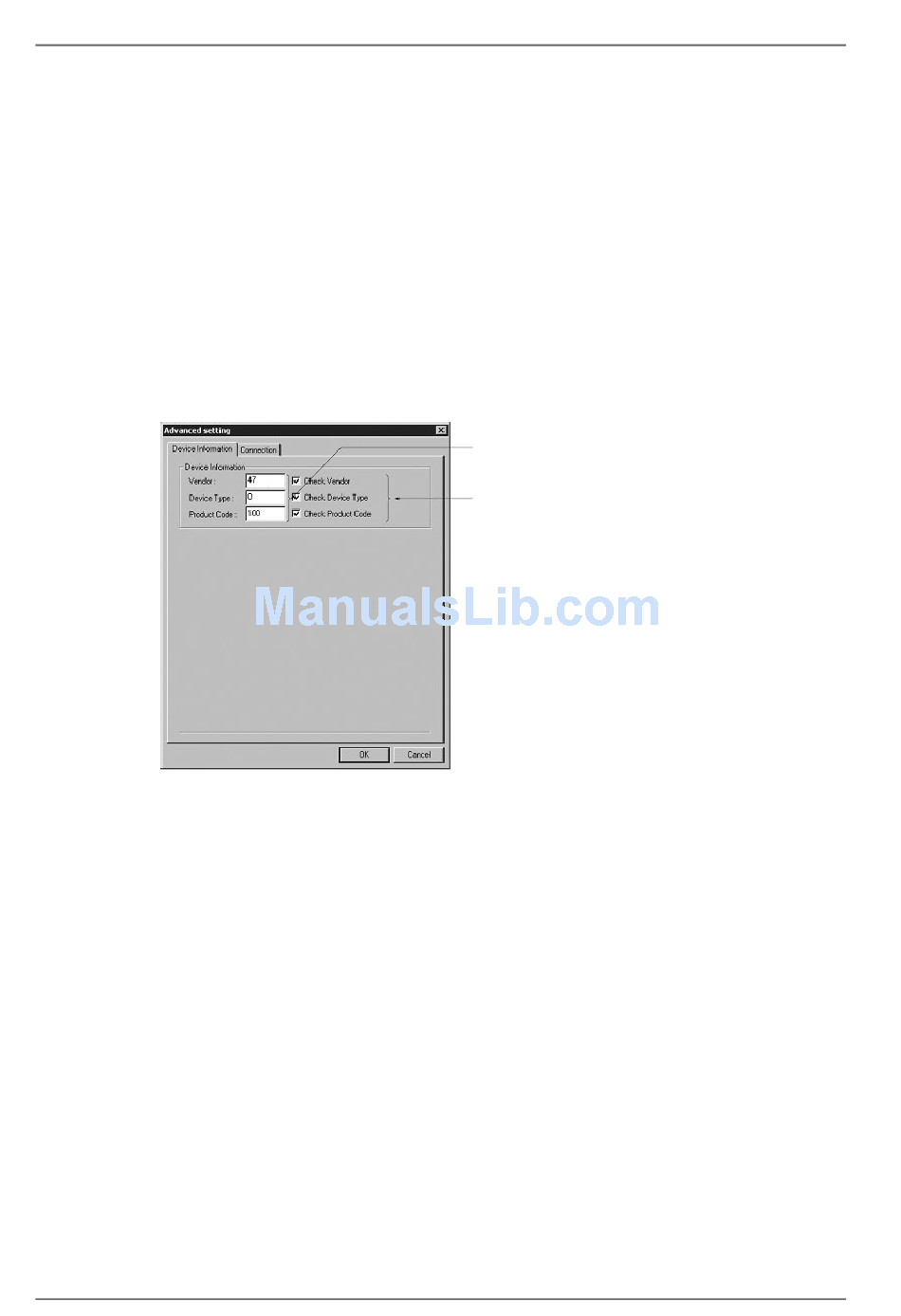

Device Information Tab Page
The device information (vendor, device type, product code) of the currently selected slave device will be
displayed.
Select these options to check device information (and indicate an error for inconsistencies) in remote I/
O communications (i.e., when a connection is opened).
156
The device information on the selected slave will
be displayed
If these options are selected, the device
information will be compared with the
corresponding data in the scan list during remote
I/O communications. If the information does not
coincide with the data, a verify error will occur.
B Editing CS/CJ-series DeviceNet Unit Parameters
