Device Properties

The device information, types of safety I/O and standard I/O, and safety signatures can be checked in the
Device Property Dialog Box.
The Device Property Dialog Box can be displayed using any of the following methods.
(1) Select a device, and then select Device - Property from the menu bar.
(2) Select a device, and the click the Device Property Button on the toolbar.
(3) Select a device, and then right-click the device and select Property.

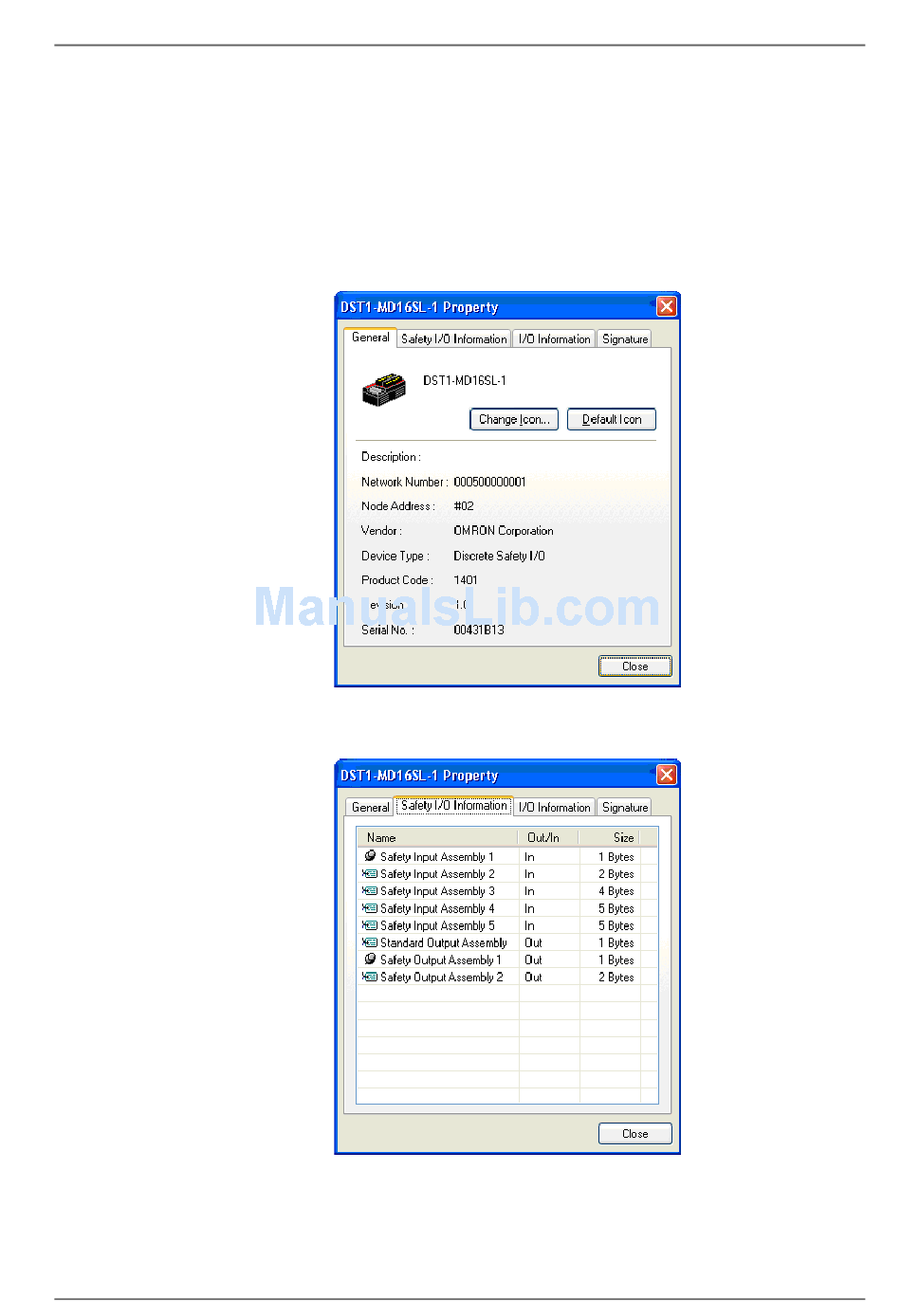

General Tab Page
In this tab page, you can check the device information and change the device icon displayed in the Network
Configuration Pane.
Safety I/O Information Tab Page
In this tab page, you can check the safety I/O classification information of a device.
2-7 Device Parameters and Properties 43
