Local I/O Settings

Click the Local OUT Tab or Local IN/Test Output Tab to display the NE1A-SCPU01's I/O Setting Window.
Note: All I/O are in the Not Used state in the default settings. If you do not use the I/O of the NE1A-SCPU01,
it is not necessary to set the parameters in this window.
5-4-1

Setting Safety Inputs

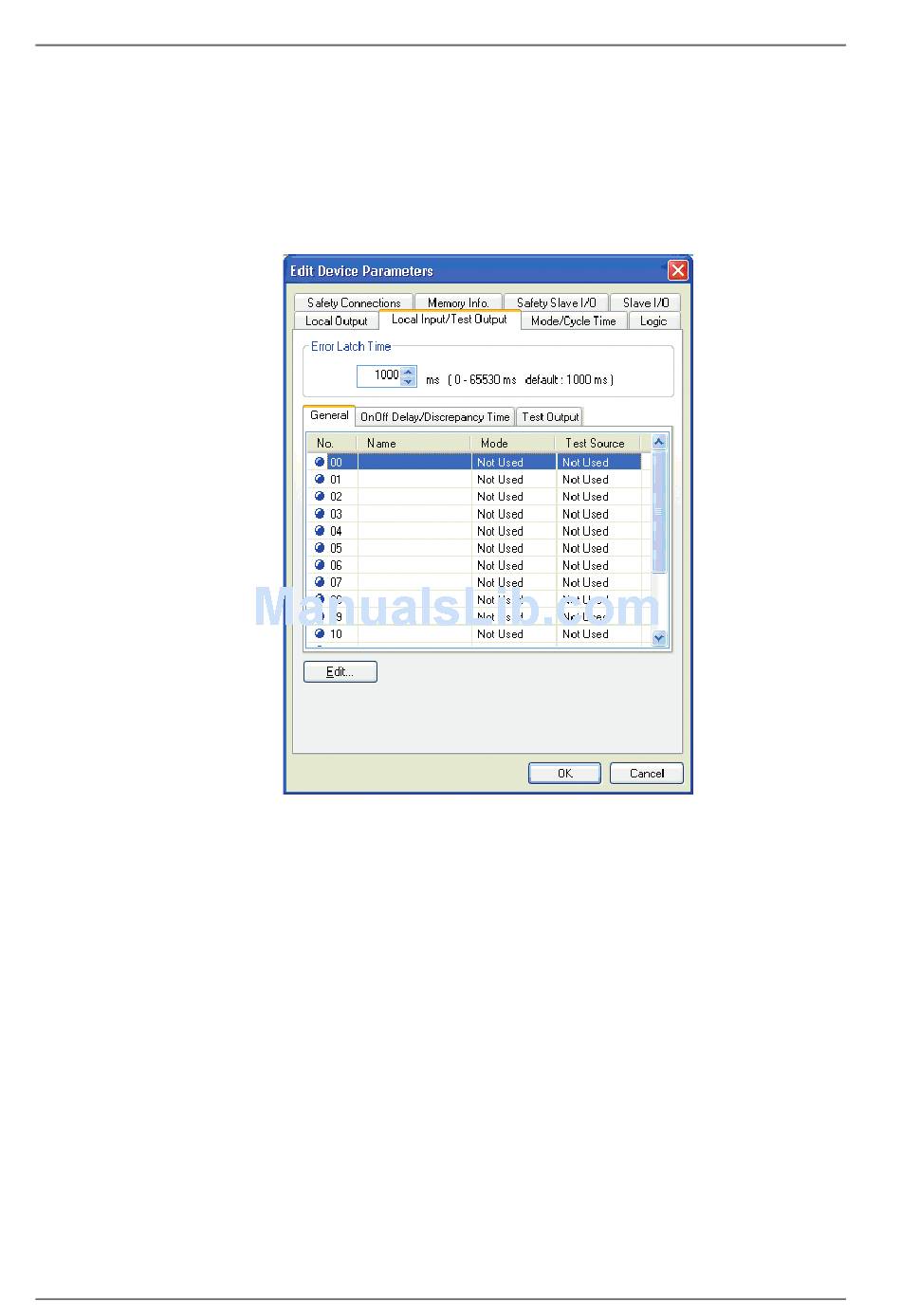

Click the Local IN/Test Output Tab and then click the General Tab in the window. To configure the safety
inputs.
Note: There are many settings for safety inputs. The display window is thus separated into the General Tab
Page and On-Off Delay/Discrepancy Time Tab Page. Safety input scan are set from both tab pages.
Error Latch Time
This parameter applies to all safety inputs and test outputs. It sets the time to latch the error state when an
error occurs in an input or output.
Even if cause of the cause of the error has been removed, the error state is always latched for this time. It
can be set between 0 and 65,530 ms in 10-ms increments.
