Settings for Individual Safety Outputs

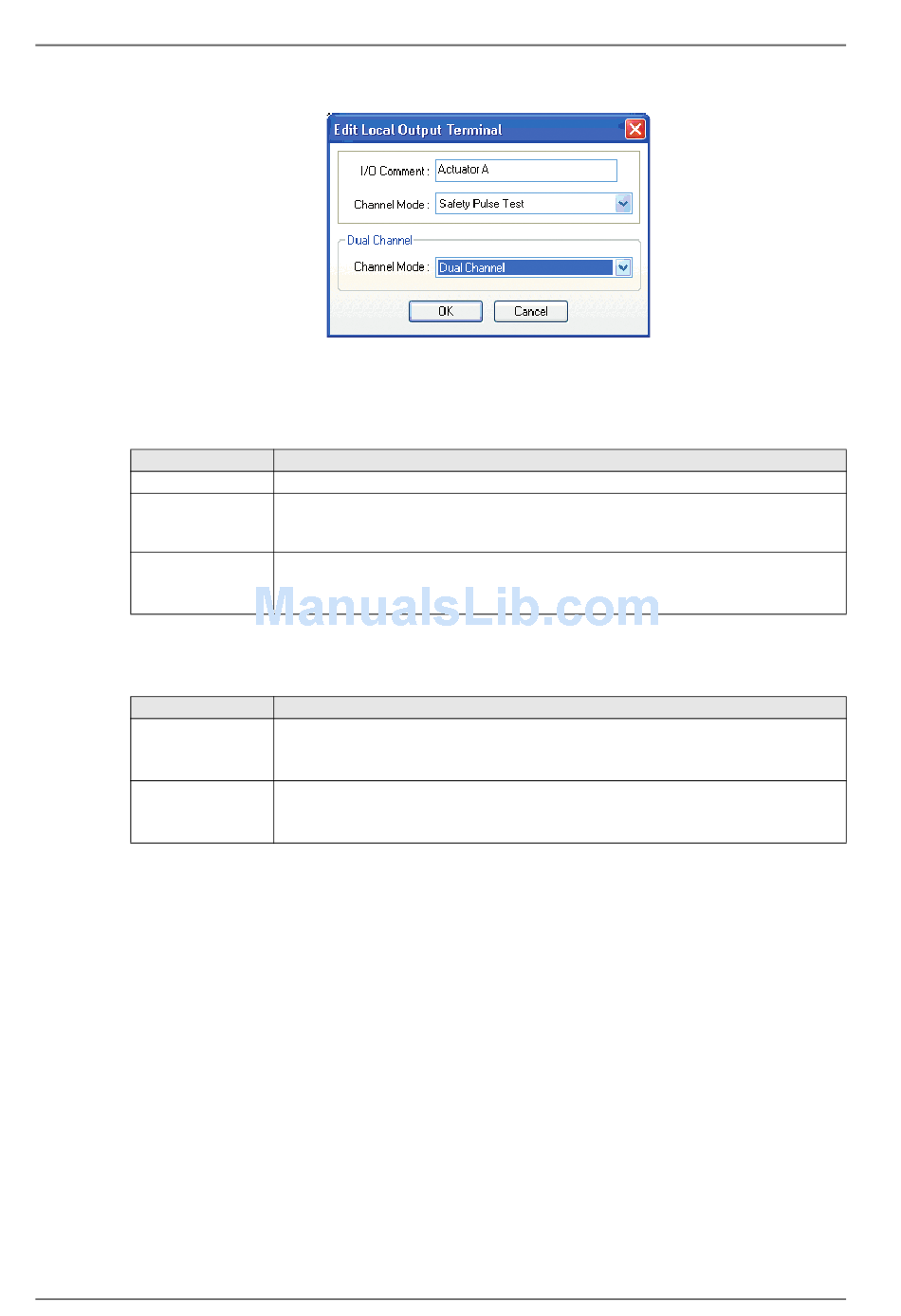

Double-click the row of the safety output number to set, or select the row and click the Edit Button.
Terminal Name
Set a terminal name for a safety output. The terminal name set here is used as the I/O tag in the Logic Editor.
Safety Output Channel Mode
Set the Channel Mode for the safety output.
Channel Mode
Not Used
Safety
Safety Pulse Test
Dual Channel Safety Output Mode
Set the Dual Channel Safety Output Mode. The combinations that can be used in the Dual Channel Mode
are pre-defined.
Channel Mode
Single Channel
Dual Channel
94
Description
The Safety Output Terminal is not used. (External output device not connected.)
Specifies not outputting the test pulse when the output is ON. Contact between the
output signal line and the power supply (positive) when the output is OFF and ground
faults can be detected.
Outputs the test pulse when the output is ON.
Contact between the output signal line and the power supply, and short circuits with
other output signal lines can be detected.
Description
Specifies using Single Channel Mode.
When Single Channel is set, the Safety Output to be paired in the Dual Channel Mode
is also set to Single Channel Mode.
Specifies using Dual Channel Mode.
When both of the Safety Outputs to be paired are normal, the outputs can be turned
ON.
