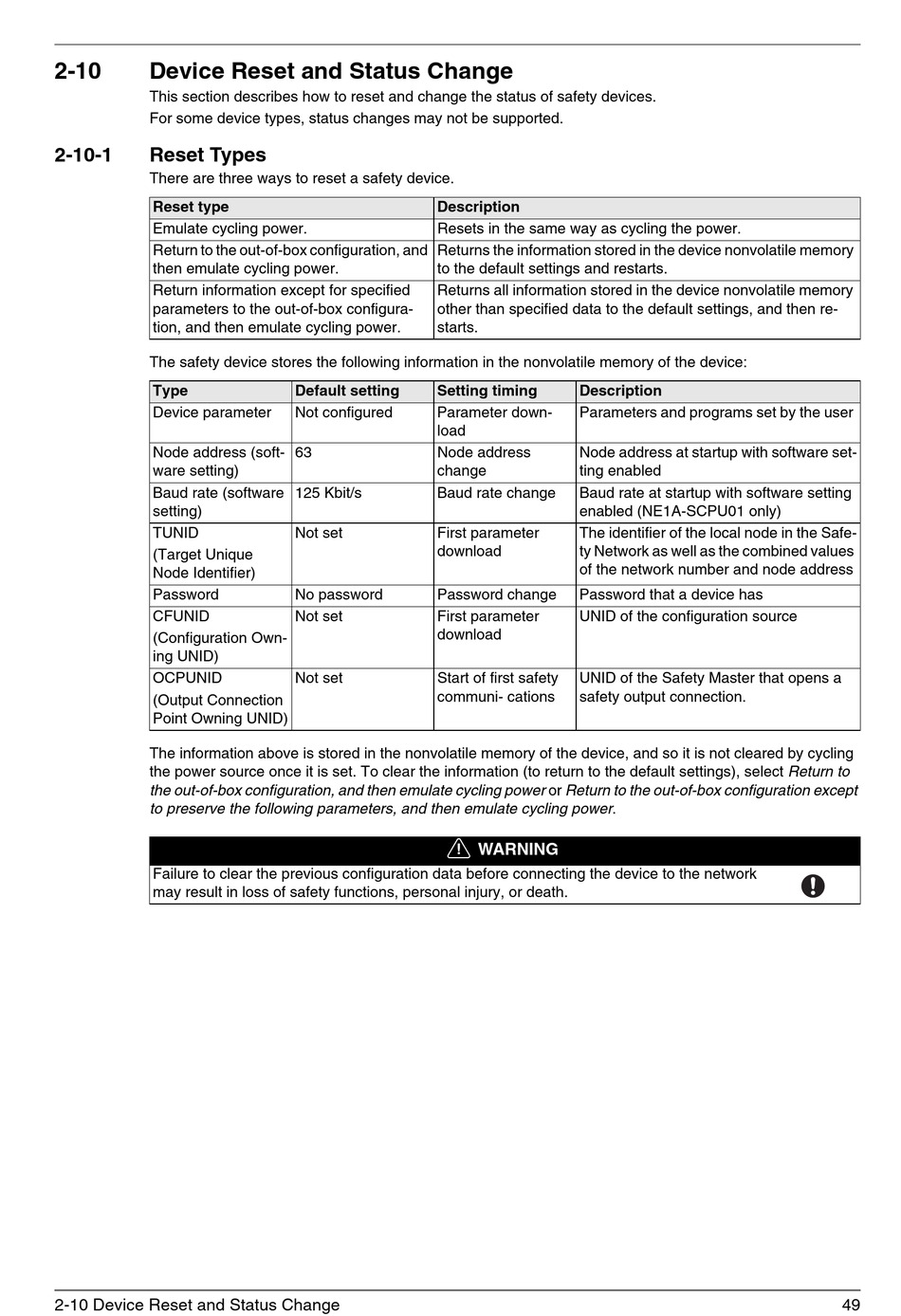

Device Reset and Status Change

This section describes how to reset and change the status of safety devices.
For some device types, status changes may not be supported.
2-10-1

Reset Types

There are three ways to reset a safety device.
Reset type
Emulate cycling power.
Return to the out-of-box configuration, and
then emulate cycling power.
Return information except for specified
parameters to the out-of-box configura-
tion, and then emulate cycling power.
The safety device stores the following information in the nonvolatile memory of the device:
Type
Device parameter
Node address (soft-
ware setting)
Baud rate (software
setting)
TUNID
(Target Unique
Node Identifier)
Password
CFUNID
(Configuration Own-
ing UNID)
OCPUNID
(Output Connection
Point Owning UNID)
The information above is stored in the nonvolatile memory of the device, and so it is not cleared by cycling
the power source once it is set. To clear the information (to return to the default settings), select Return to
the out-of-box configuration, and then emulate cycling power or Return to the out-of-box configuration except
to preserve the following parameters, and then emulate cycling power.
Failure to clear the previous configuration data before connecting the device to the network
may result in loss of safety functions, personal injury, or death.

2-10 Device Reset and Status Change

Description
Resets in the same way as cycling the power.
Returns the information stored in the device nonvolatile memory
to the default settings and restarts.
Returns all information stored in the device nonvolatile memory
other than specified data to the default settings, and then re-
starts.
Default setting Setting timing
Not configured Parameter down-
load
63 Node address
change
125 Kbit/s Baud rate change
Not set First parameter
download
No password Password change
Not set First parameter
download
Not set Start of first safety
communi- cations
! WARNING
Description
Parameters and programs set by the user
Node address at startup with software set-
ting enabled
Baud rate at startup with software setting
enabled (NE1A-SCPU01 only)
The identifier of the local node in the Safe-
ty Network as well as the combined values
of the network number and node address
Password that a device has
UNID of the configuration source
UNID of the Safety Master that opens a
safety output connection.
