Connecting to the Network
The Network Configurator must be connected to the network to perform operations that are valid only when
online, such as obtaining the network configuration from an actual network or downloading the configured
device parameters to actual devices.
This section describes the procedure for connecting to the network via the USB port on the NE1A-SCPU01
and a DeviceNet Interface Card installed in a computer. Refer to the Appendix for other network connection
procedures.
2-3-1
Network Connection via USB Port
1.
Turn ON the power supply to the NE1A-SCPU01 and connect it to a USB port on the computer.
2.
Select Option - Select Interface - NE1A USB Port followed by the desired mode from the menu bar.
3.
Select Network - Connect from the menu bar.

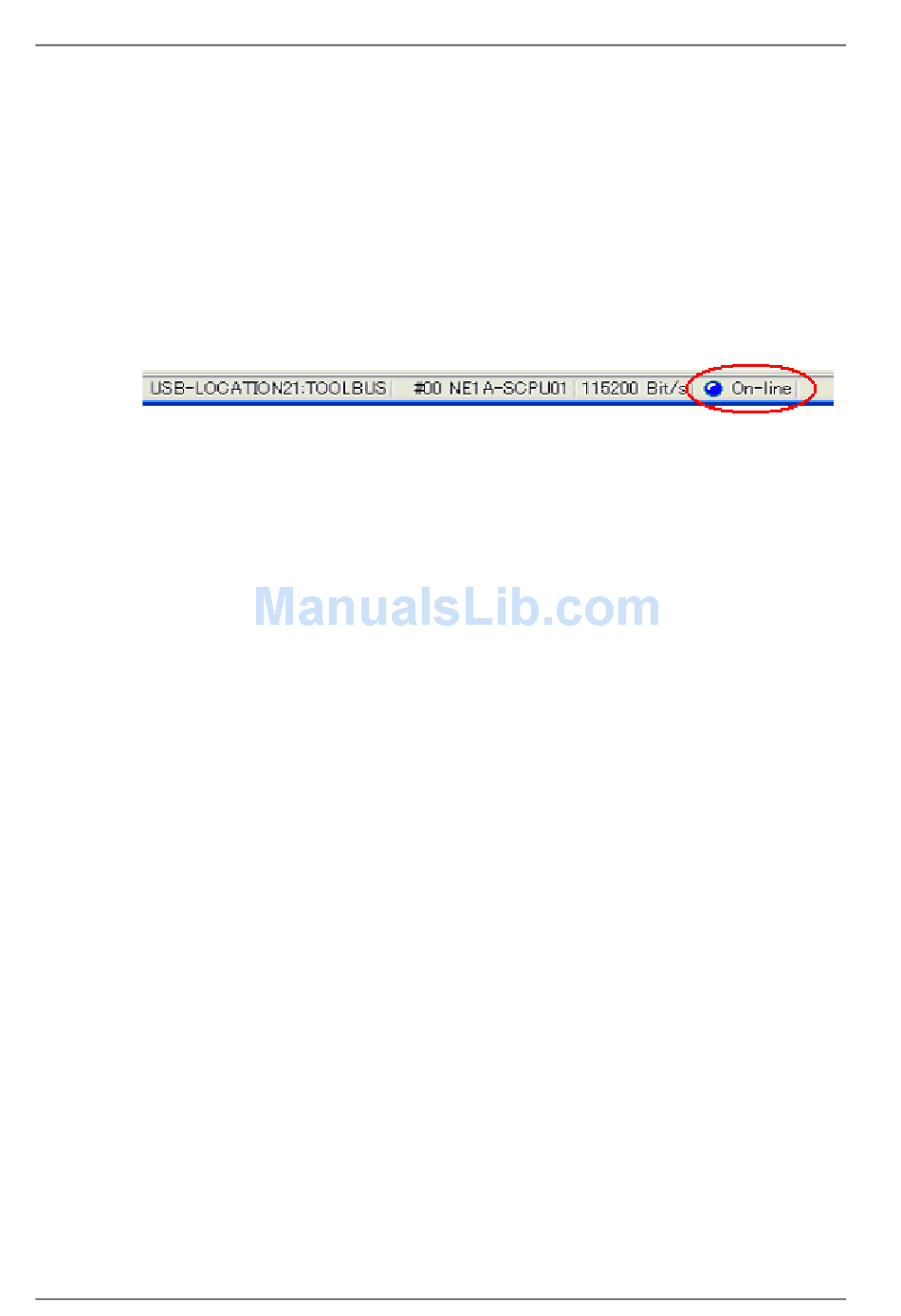

If an online connection is made normally, On-line will be displayed in the status bar at the bottom of the win-
dow.
32
Section 2: Basic Operation of the Network Configurator
