4. Select the name of the jump source and click the OK Button.

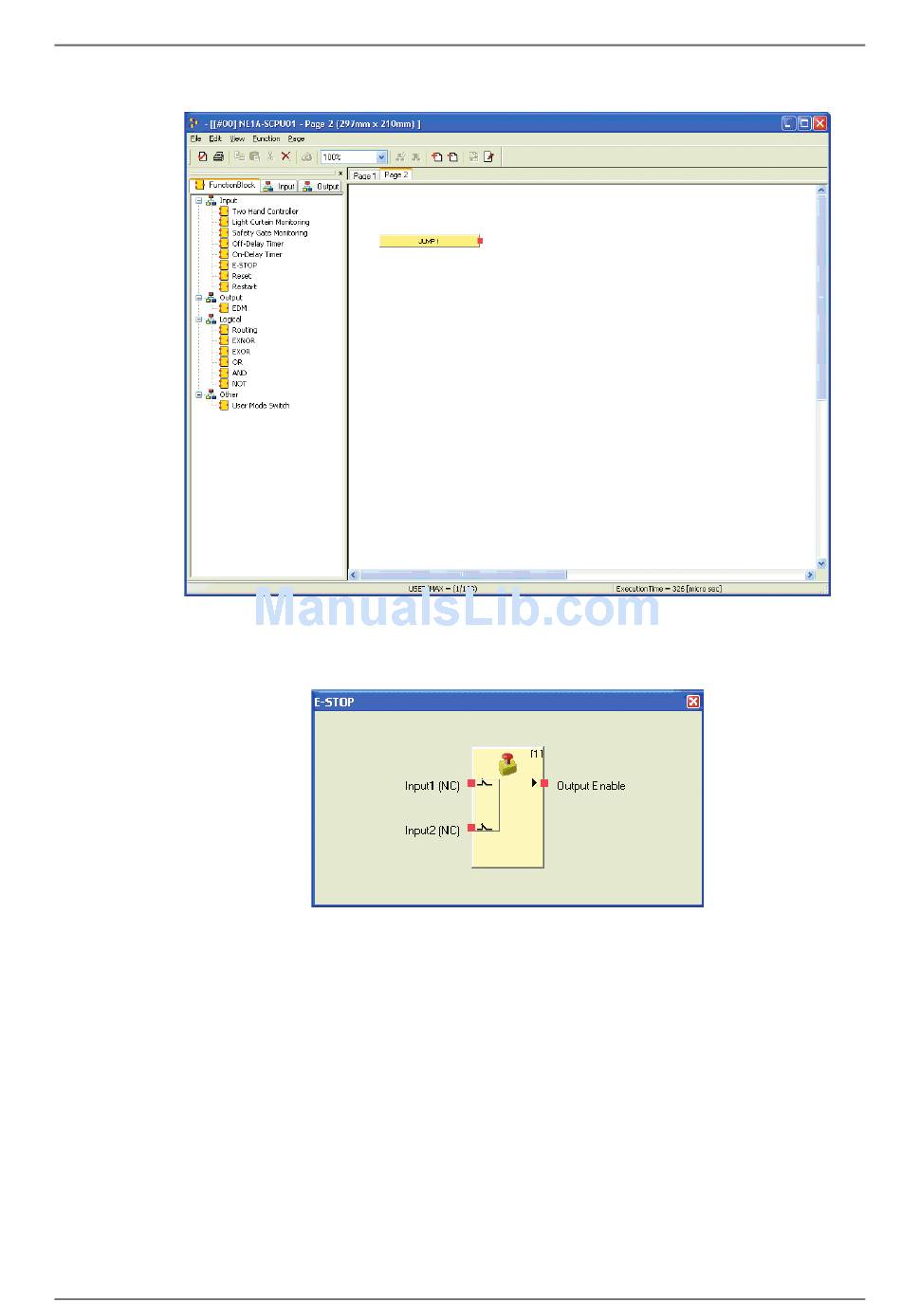

The jump address will be displayed as follows:
Function Block I/O Information
The I/O information of a function block can be confirmed using the following method:
• Right-click the function block and select Detail.
Editing Function Block Parameters
To edit the parameters of a function block, use any of the following methods to display the Parameter Edit
Window.
(1) Select the function block and then select Edit - Properties from the menu bar
(2) Right-click the function block and the select Edit from the pop-up menu.
(3) Select the function block and then click Property on the toolbar.
Note: The parameters that can be edited depend on the function block. For details, refer to the Safety Net-
work Controller Operation Manual (Cat. No. Z906-E1).
6-3 Programming 105
