6-3
Programming
6-3-1
Workspace
First, set the size of the Workspace. Select File - Page Setup from the menu bar.
The Workspace will consist of pages of the specified size. Pages can be added or deleted as required. When
printing the program, each page will be printed at the specified size.
IMPORTANT:
Programming Restrictions
Items, such as I/O tags and function blocks can be used on each page. The following restrictions apply.
•
The same input tag can be placed on more than one page. The same input tag, however, can be used
only once on each page.
•
Each output tag can be used only once, even on different pages.
•
Only function blocks can be copied. The I/O tags, I/O tag connections, and connections between func-
tion blocks cannot be copied.
•
When a function block is pasted, it is placed in the same position as the function block that was copied.
When pasting a function block on the same page, move the source function block.
•
A maximum of 128 function blocks can be used.
•
A maximum of 128 number jump addresses can be used.
•
A maximum of 32 of pages can be used.
6-3-2
Programming Using Function Blocks
Input Tag Placement
1.
Click the Input Tab in the Object List.
2.

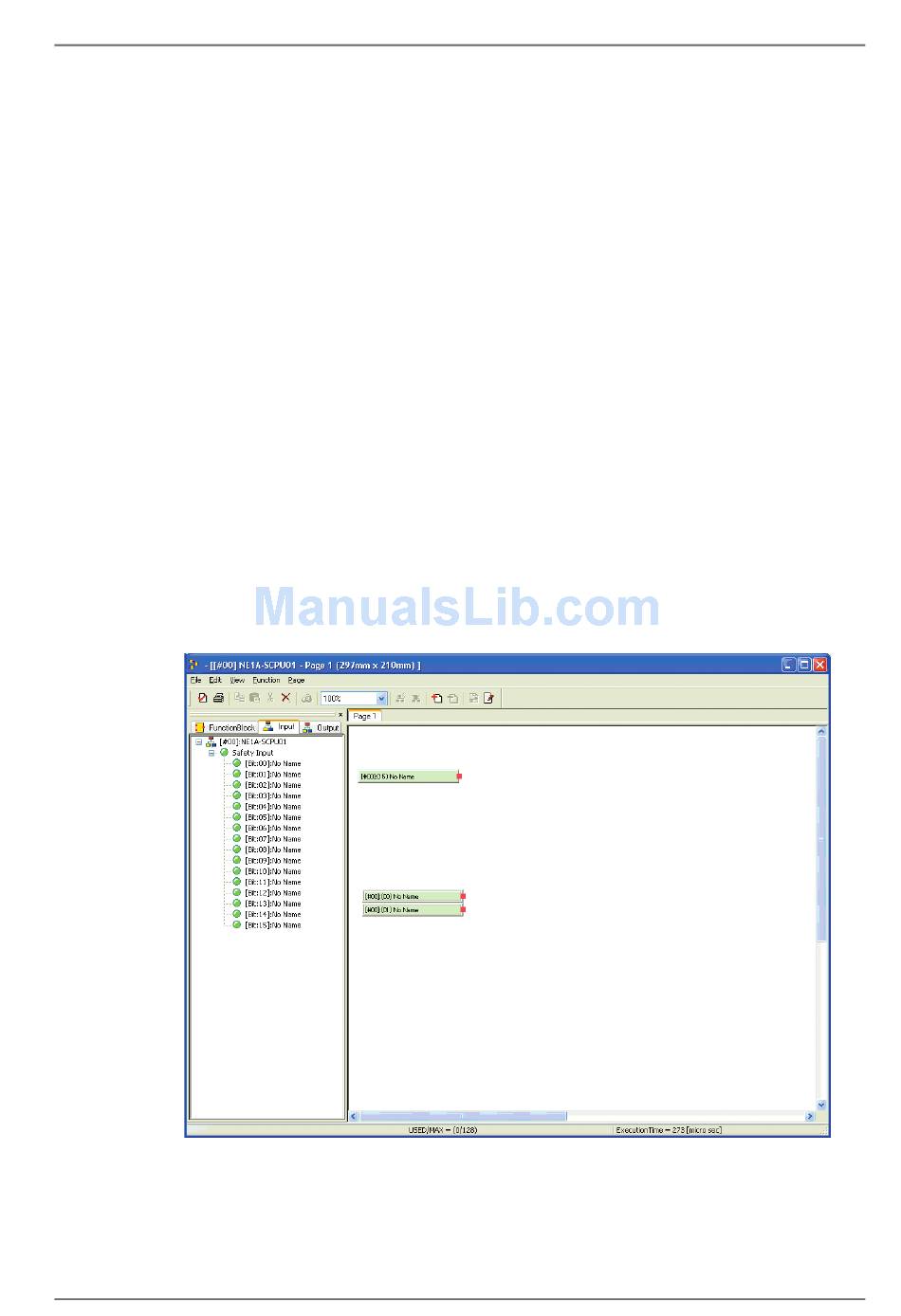

Select the input tag to use, drag it to the Workspace, and drop it where you want to position it. The user
can select multiple I/O tags and position them at the same time.
6-3 Programming
The page setup cannot be changed if there are any items in the Workspace. Set the size
of the Workspace first using Page Setup.
101
