Setting the Node Addresses and Baud Rates via the Network
Tool - Node Address/Baud Rate Setting
Use the following procedure to set a device node address and baud rate via the network.
1.
Leave only the target device and the Network Configurator operating in the DeviceNet network. Refer to
the manual of the device used for the device node address and baud rate in the default settings. Also
connect the Network Configurator using the same baud rate.
2.
Connect the Network Configurator online.
3.
Select Tool - Node Address/Baud Rate Setting.

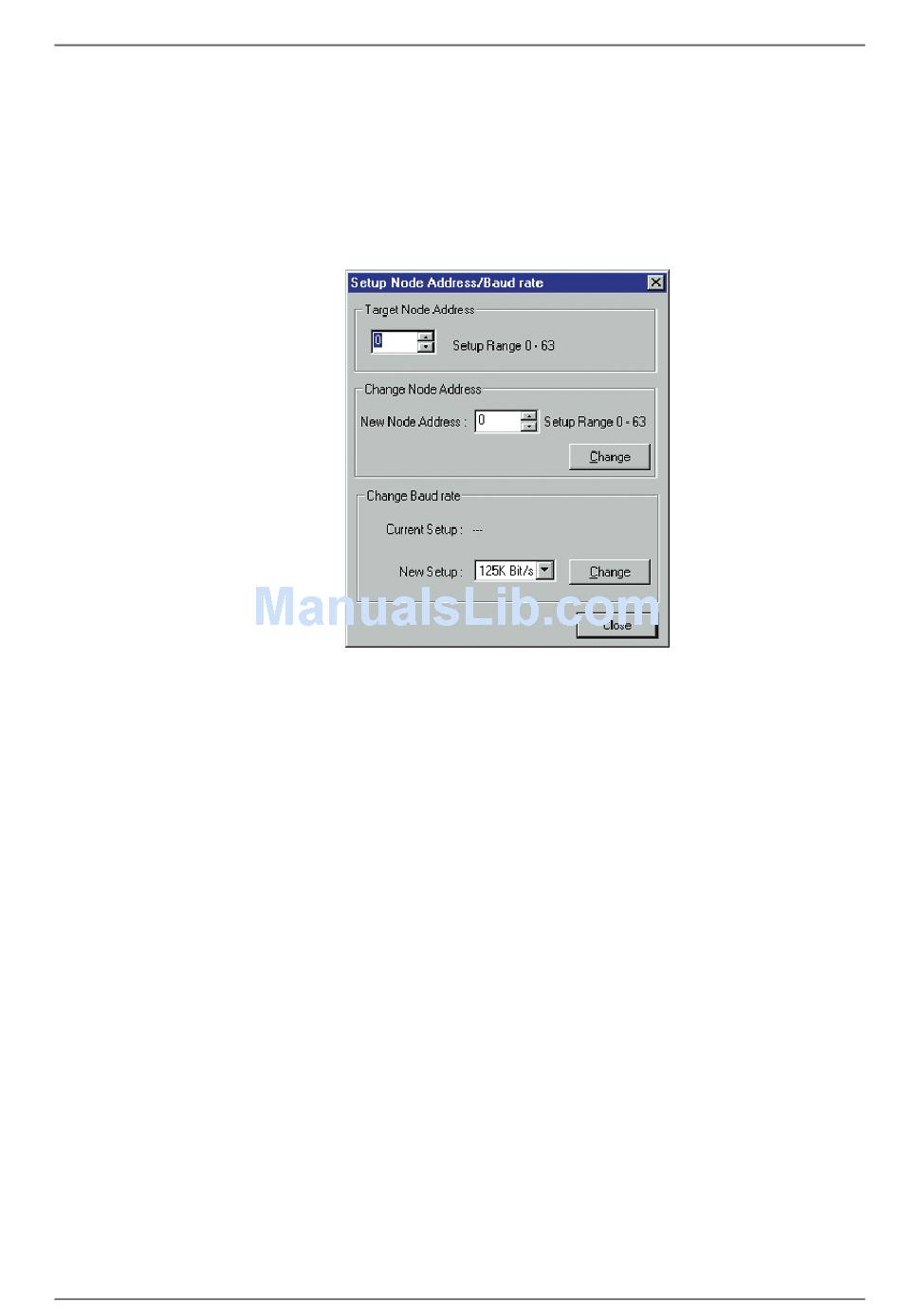

The following window will be displayed.
4.
Specify the present node address of the target device in the Target Node Address Field.
5.
To change the node address, specify a new node address in the New Node Address Field and click the
Change Button.
The node address of the target device will be changed.
6.
To change the baud rate, select the rate in the New Baud Rate Field and click the Change Button.
The baud rate of the target device will be changed.
Note: The node address and baud rate can be set via the network only for devices that support this function.
