2-4-5

Changing the Node Address

When a device is added from the Device List, an unused node address from 0 to 63 is automatically allocated
sequentially in the order the device is added.
There are two ways to change the allocated node address.
(1) Select a device, and select Device - Change Node Address from the menu bar.
(2) Select a device, and then right-click the device and select Change Node Address.

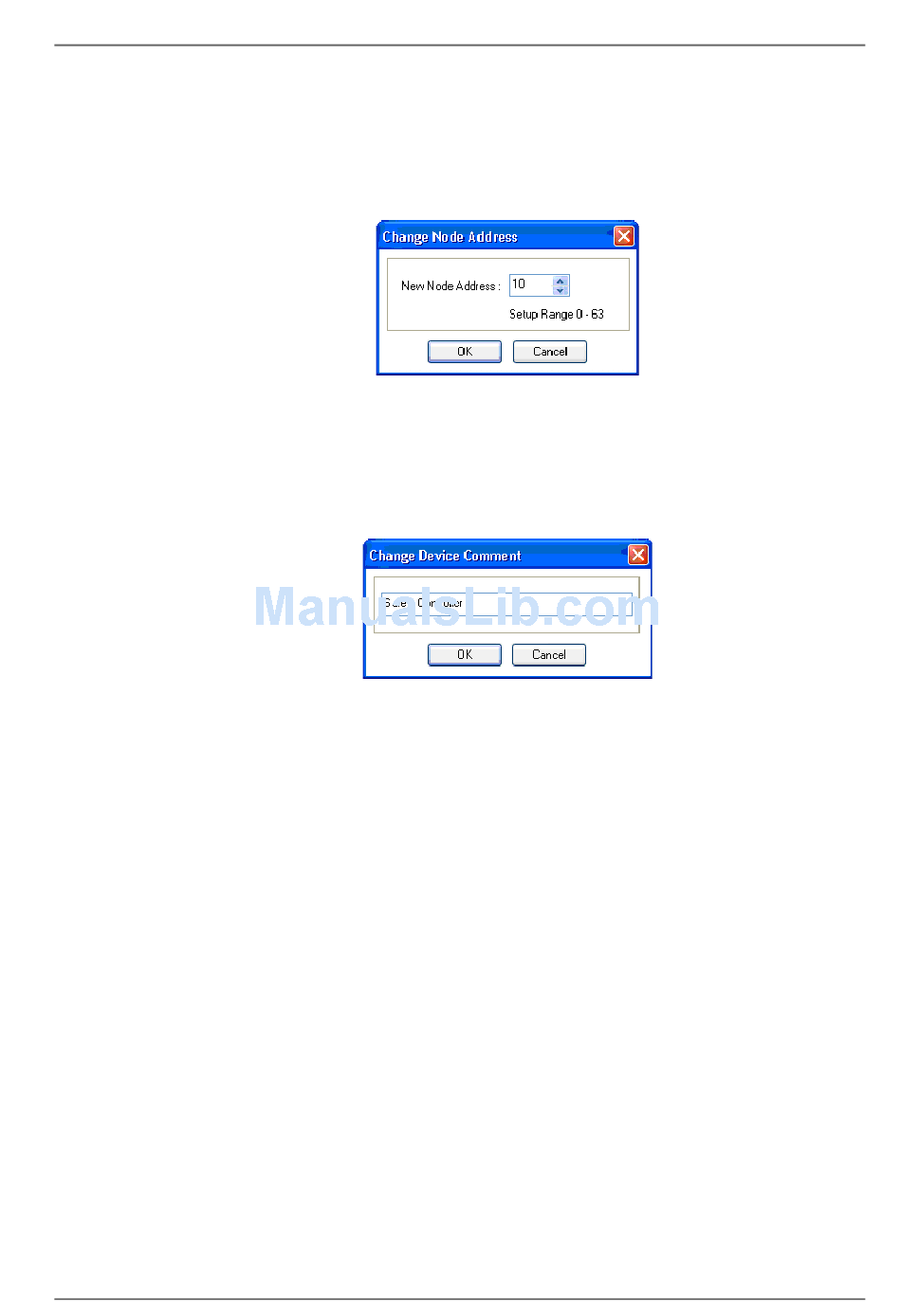

The following dialog box will be displayed. Change the node address and click the OK Button.
2-4-6

Changing Device Comments

When a device is added from the Device List, the displayed comment is the device type. Device comments
can be set in the following two ways.
(1) Select a device, and then select Device - Change Device Comment from the menu bar.
(2) Select a device, and then right-click the device and select Change Device Comment.
The following dialog box will be displayed. Enter the device name and click the OK Button.
2-4 Creating a Virtual Network 37
