Parameter Verification

After downloading the parameters to a device, the user must perform parameter verification to check whether
the parameters entered by the user were correctly downloaded to the device. The user must perform this
verification for safety devices.
2-8-1

Device Parameter Verification

Verify the parameters using any of the following methods after downloading the parameters to devices. This
function is enabled only when the Network Configurator is online.
(1) Select a device, and then select Device - Parameter - Verify from the menu bar.
(2) Select a device, and then click the Verify Parameter Button on the toolbar.
(3) Select a device, and then right-click the device and select Parameter - Verify.

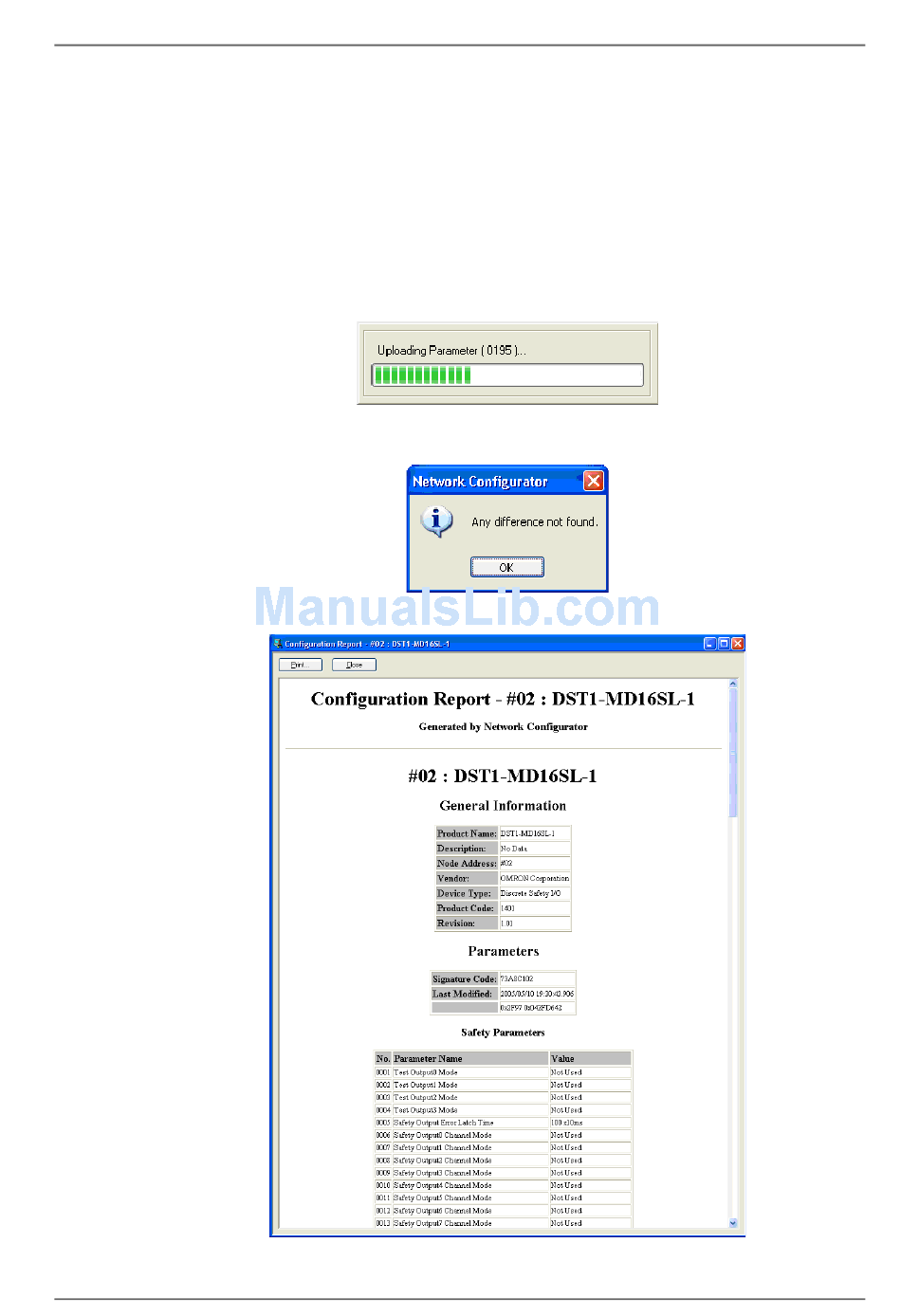

The device parameters will be uploaded.
First, the Network Configurator itself checks if the uploaded parameters are different from the parameters in
the virtual network. If there are no differences, the following dialog box will be displayed.
If you click the OK Button, the uploaded parameters will be displayed.
