2. Click the Edit Button.

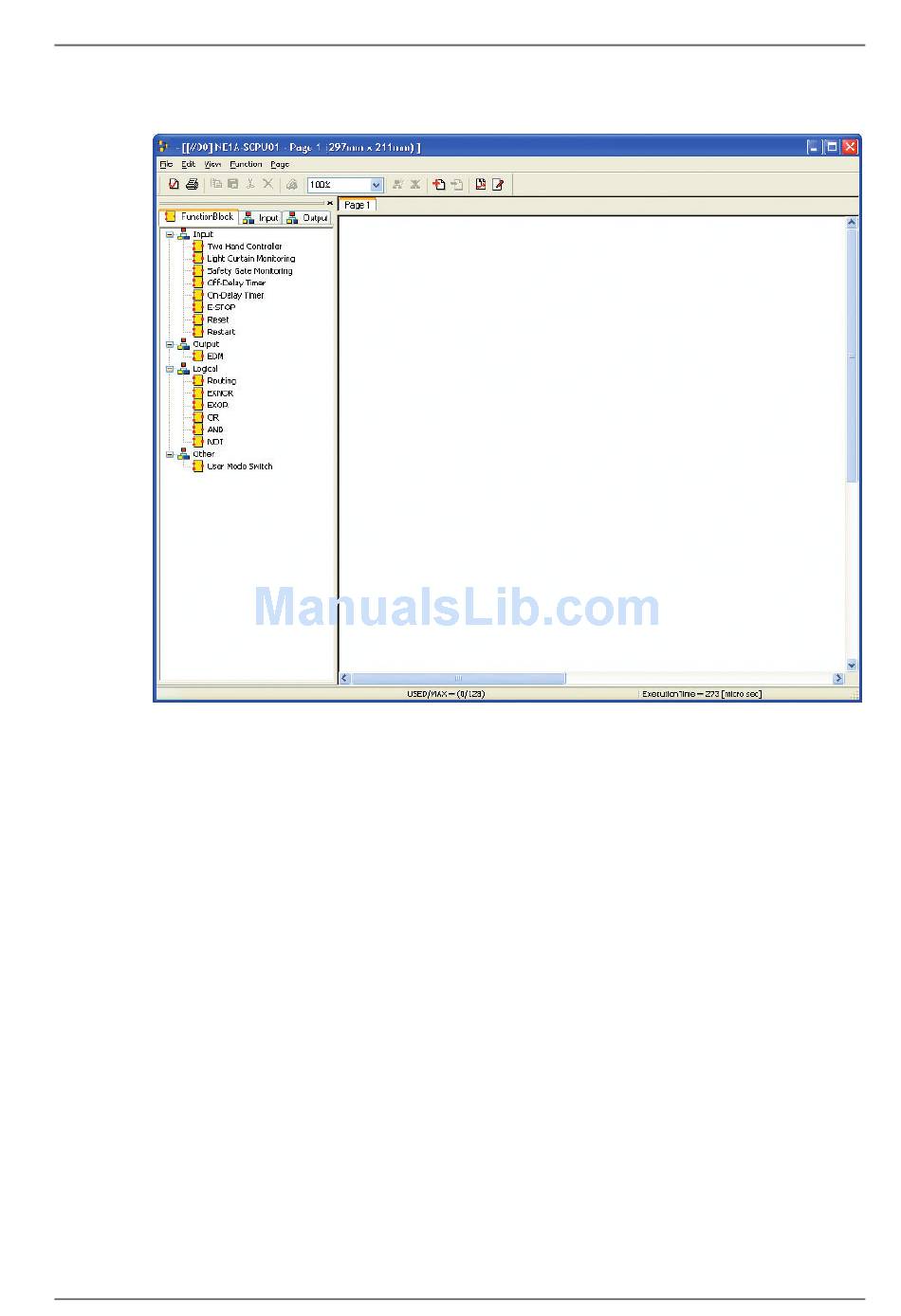

The Logic Editor will start, as shown in the following figure.
The Logic Editor consists of the Object List and the Workspace, as shown in the following figure.
Object List
6-1-2

Exiting the Logic Editor

Use the following procedure to exit the Logic Editor.
1. Select Exit from the File Menu of the Logic Editor.
The Logic Editor will close
2. Click the OK Button in the Edit Device Parameters Window.
IMPORTANT: • To save the program and exit, the user must click the OK Button in the Edit Device Param-
6-1 Starting and Exiting the Logic Editor
eters Dialog Box when exiting the Logic Editor.
• If the user clicks the Cancel Button, none of the parameters entered until then, including
the program, will be saved. Any programming saved temporarily by selecting File - Apply
will also be deleted.
Workspace
99
