2-3-2
Network Connection via DeviceNet Interface Card
1.
Select Option - Select Interface - DeviceNet I/F.
2.
Select Network - Connect.

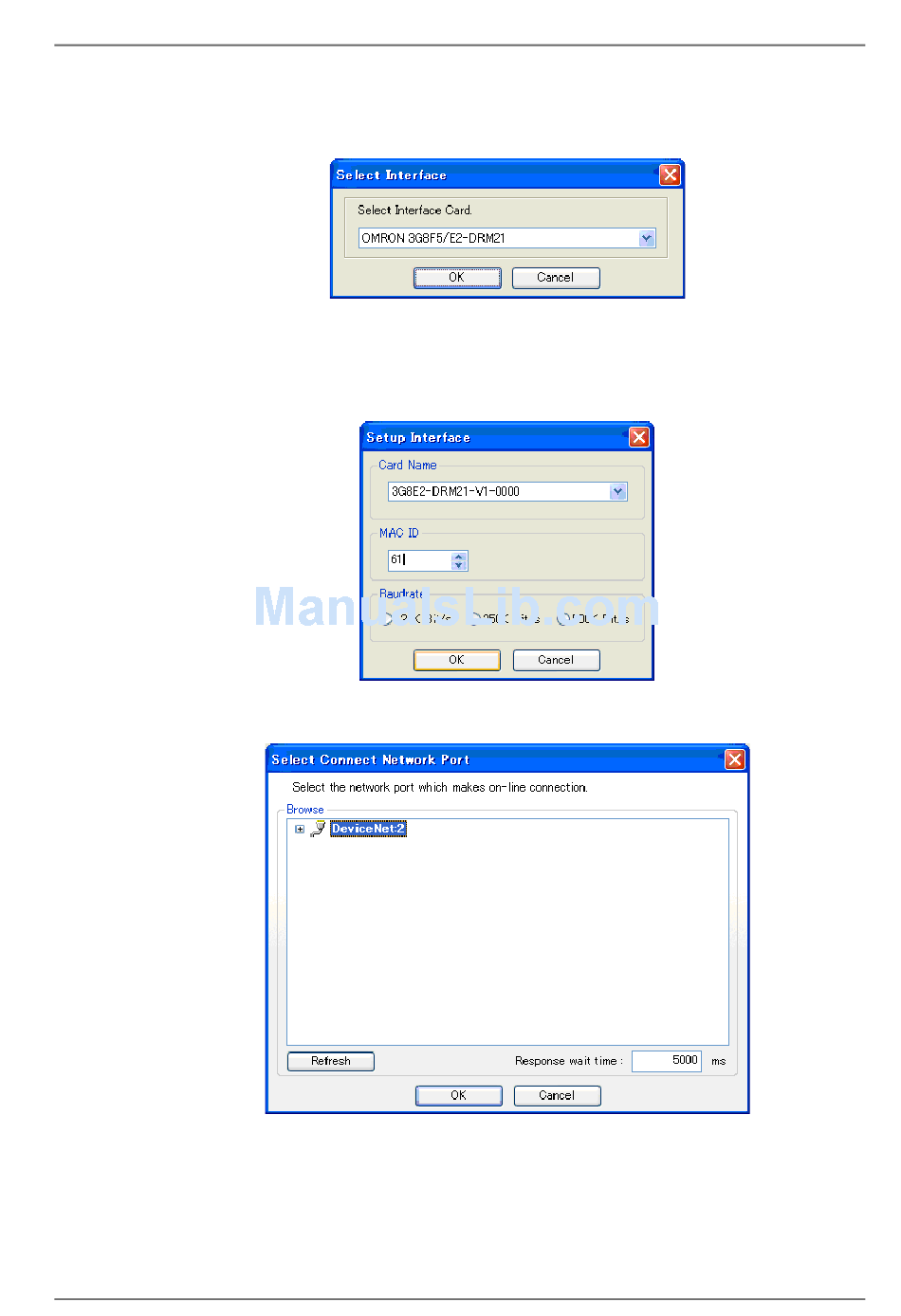

The Select Interface Dialog Box will be displayed.
3.
Select the interface card, and click the OK Button.
The Setup Interface Dialog Box will be displayed.
This window varies depending on the type of interface card. In this example, a DeviceNet PCMCIA Card
(3G8E2-DRM21-V1) is used. If you use another interface card, refer to the operation manual for the
card.
4.
Set the MAC ID (node address) and baud rate, and click the OK Button.
The Select Connect Network Port Dialog Box will be displayed.
In the first network connection, a network search is performed automatically with this dialog box dis-
played. Wait until the search has been performed for all addresses. After the search, the networks that
can be connected will be displayed.
Automatic searching for networks will not be performed the second time or after.
5.
Select the network to connect to, and click the OK Button.
If is online connection is made normally, On-line will be displayed in the status bar at the bottom of the
window.
2-3 Connecting to the Network
33
