1-4
Network Configurator Overview
1-4-1
About the Network Configurator
The WS02-CFSC1-E Network Configurator is Support Software used to configure, set, and manage a De-
viceNet Safety network with graphical window operations.

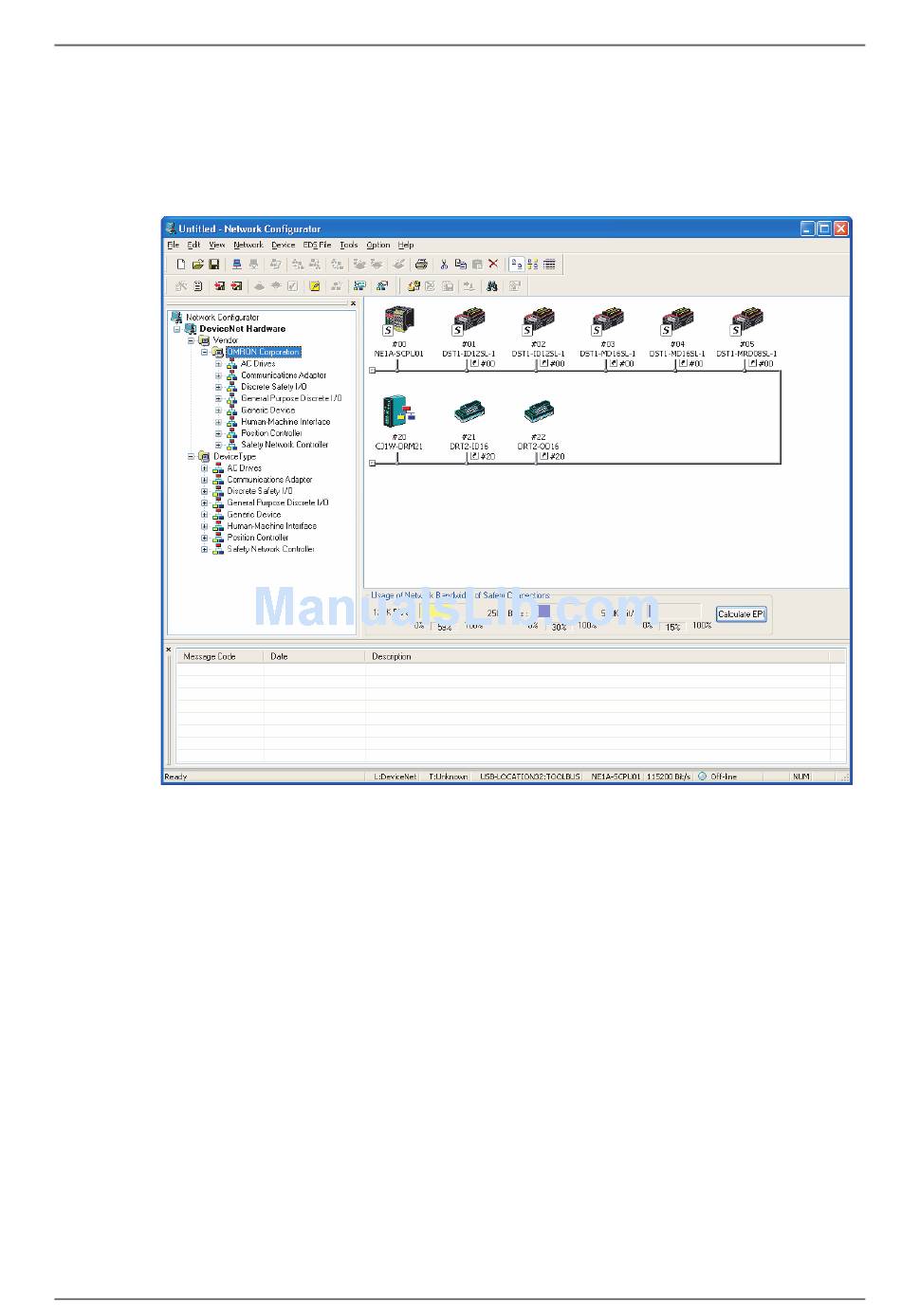

The Network Configurator can be used to configure a virtual DeviceNet Safety network (in the Network Con-
figuration Window) and monitor the configuration and parameters of each safety device and standard device.
1-4-2
Network Configurator Features
Compliant with Standard and Safety DeviceNet Networks
The Network Configurator can configure and monitor DeviceNet Safety compliant devices as well as existing
standard DeviceNet devices. Consequently, the Network Configurator supports various system configura-
tions, including standard systems, safety systems, and mixed systems containing both standard and safety
devices.
NE1A-SCPU01 Programming
The Network Configurator is equipped with a Programming Tool that is compatible with the NE1A-SCPU01's
safety logic programming. DeviceNet Safety applications can be created independently with the Network
Configurator.
Upward Compatibility with DeviceNet Configurator
All the functions of DeviceNet Configurator are supported. Also, all of the files created by the DeviceNet Con-
figurator can be used as they are.
1-4 Network Configurator Overview
21
