Safety Output Parameter Groups - Omron DEVICENET SAFETY - CONFIGURATION MANUAL 05-2005 System Configuration Manual

4-1-5

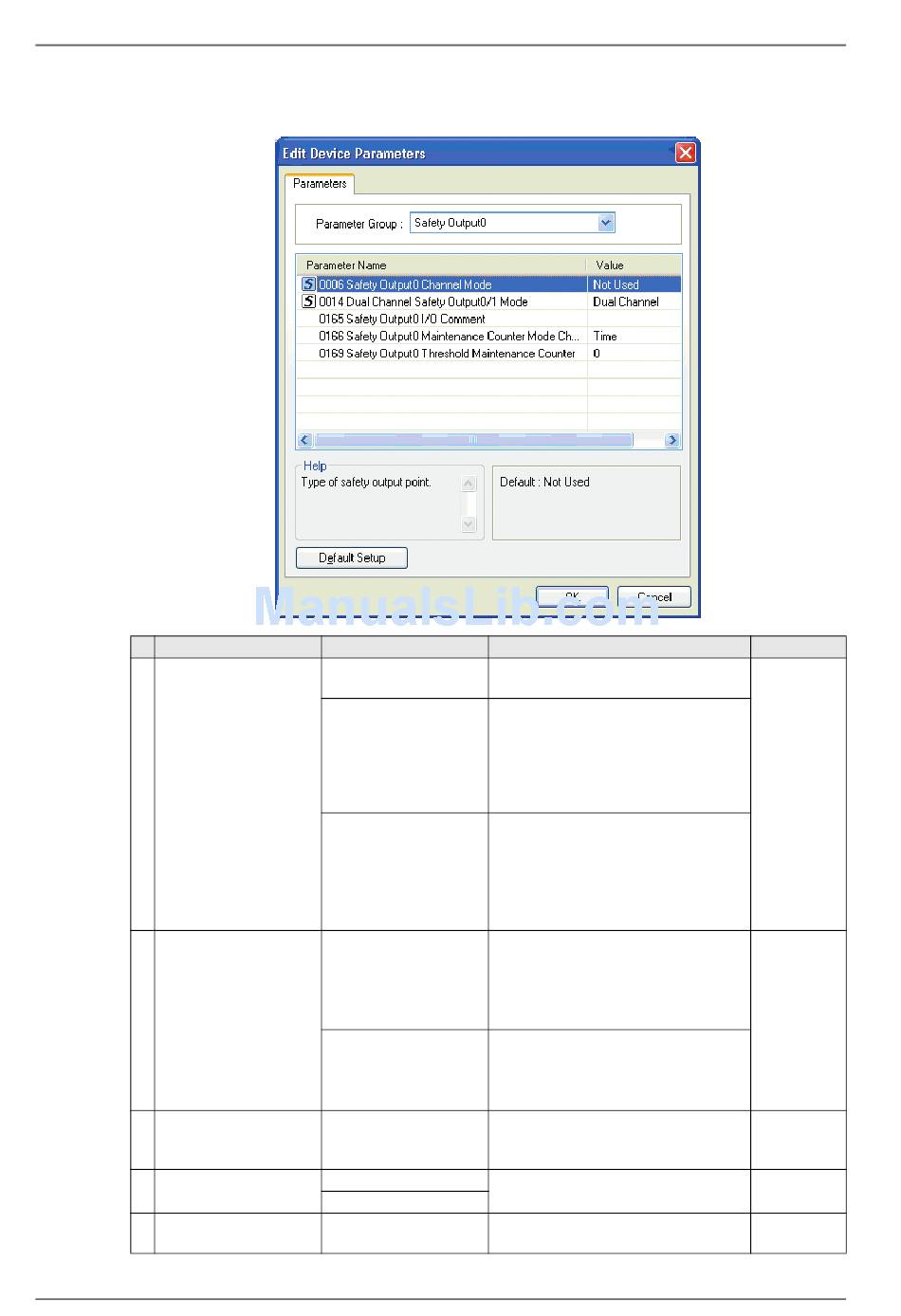

Safety Output Parameter Groups

This section describes parameters in the safety output groups.
The safety output parameters are grouped by terminal number.
Item
S Safety Output Channel
Mode
S Dual Channel Safety
Output Mode
I/O Comment
Maintenance Counter
Mode Choice
Threshold Maintenance
Counter
76
Settings Description
Not used. The safety output is not used. (Exter-
nal output device not connected.)
Safety Specifies not outputting the test pulse
when the output is ON. Contact be-
tween the output signal line and the
power supply (positive) when the out-
put is OFF and ground faults can be
detected.
Safety Pulse Test Outputs the test pulse when the output
is ON.
(Setting supported only
for the DST1-MD16SL- Contact between the output signal line
1.) and the power supply, and short cir-
cuits with other output signal lines can
be detected.
Single Channel Specifies using Single Channel Mode.
When Single Channel is set, the safety
output that would be paired for the dual
channel parameter is also set to Single
Channel Mode.
Dual Channel Specifies using Dual Channel Mode.
When both of the safety outputs to be
paired are normal, the outputs can be
turned ON.
32 characters max. Sets an I/O comment for the safety
output. The I/O comment set here is
used as the I/O tag in the Logic Editor.
Time Sets the operating mode for the main-
tenance counter.
Count
0 to 4,294,967,295 Sets the threshold value for the main-
hours tenance counter.
Section 4: Editing Safety I/O Terminal Parameters
Default
Not used.
Dual
Channel
None
Time
0
