6-3-5
Monitoring the Program
The I/O tag values and signal states of connections with function blocks can be monitored online in the Logic
Editor Window. Make sure that the Network Configurator is connected to the network and that the NE1A-
SCPU01 being monitored is in RUN state before starting online program monitoring.
Starting Online Monitoring
Start online monitoring using either of the following methods:
(1) Select Function - Monitoring from the menu bar.
(2) Click the Monitoring Button on the toolbar.
During monitoring, the I/O tags or connections that are ON will be displayed in a darker color.
Stopping Online Monitoring
Use either of the following methods to stop online monitoring:
(1) Select Function - Monitoring from the menu bar once again.
(2) Click the Stop Monitoring Button on the toolbar.
6-3 Programming

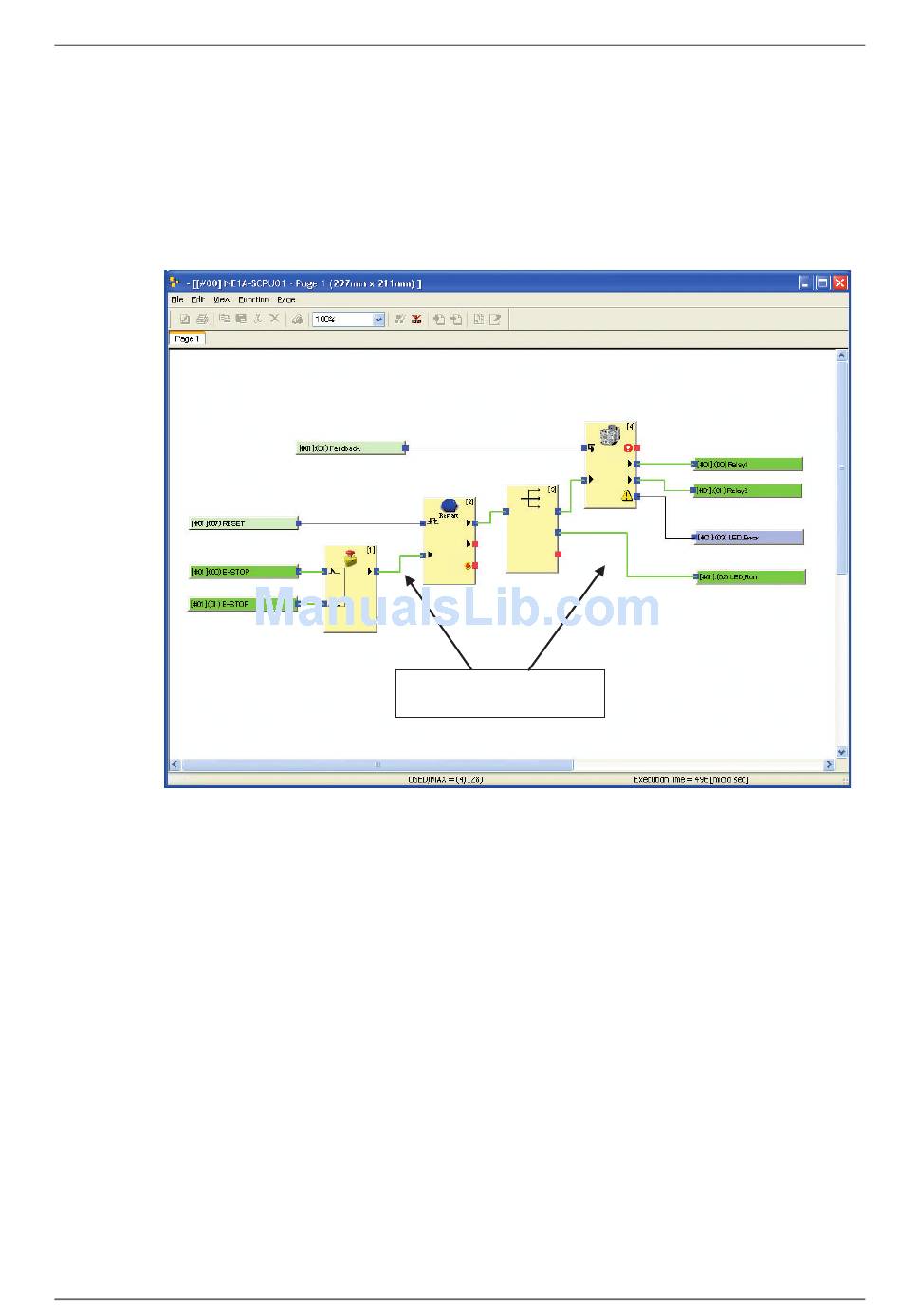

I/O tags and connections that
are ON can be monitored.
