Safety I/O Terminal Overview

1-3-1

About the DST1-series Safety I/O Terminals

The Safety I/O Terminals support the DeviceNet Safety protocol and provide various functions for the Safety
System. The Safety I/O Terminals allow the user to construct a safety control/network system that meets the
requirements for Safety Integrity Level (SIL) 3 according to IEC 61508 (Functional Safety of Electrical/Elec-
tronic/ Programmable Electronic Safety-related Systems) and the requirements for Safety Category 4 ac-
cording to EN 954-1.
The DST1-series safety I/O data is transmitted through safety I/O communications conforming to the De-
viceNet Safety Protocol, and the data processing is performed in the Safety Network Controller (NE1A-
SCPU01).
Also, the status of the safety I/O data can be monitored in a standard PLC in an existing DeviceNet network
using standard I/O communications or explicit message communications.
DST1-series
Safety I/O Terminal
Emergency stop switch
1-3-2

Safety I/O Terminal Features

Safety Inputs
Semiconductor output devices such light curtains can be connected as well as contact output devices
such as emergency stop switches.
Faults in external wiring can be detected.
Input delays (ON delays and OFF delays) can be set.
Pairs of related local inputs can be set to Dual Channel Mode in order to be compliant with the Category
4 standards.
When Dual Channel Mode is set, the input data patterns and the time discrepancy between input sig-
nals can be evaluated.
Test Outputs
4 independent test outputs are available to use.
A disconnected external indicator lamp can be detected. (Can be set for the T3 Terminal only.)
Test outputs can be used as power supply terminals to devices such as sensors.
Test outputs can be used as the standard output terminals for monitor outputs.
Safety Outputs
Semiconductor Outputs
Pairs of related local outputs can be set to Dual Channel Mode in order to be compliant with the
Category 4 standards.
When Dual Channel Mode is set, the output data patterns can be evaluated.
The rated output current is 0.5 A max. per output.

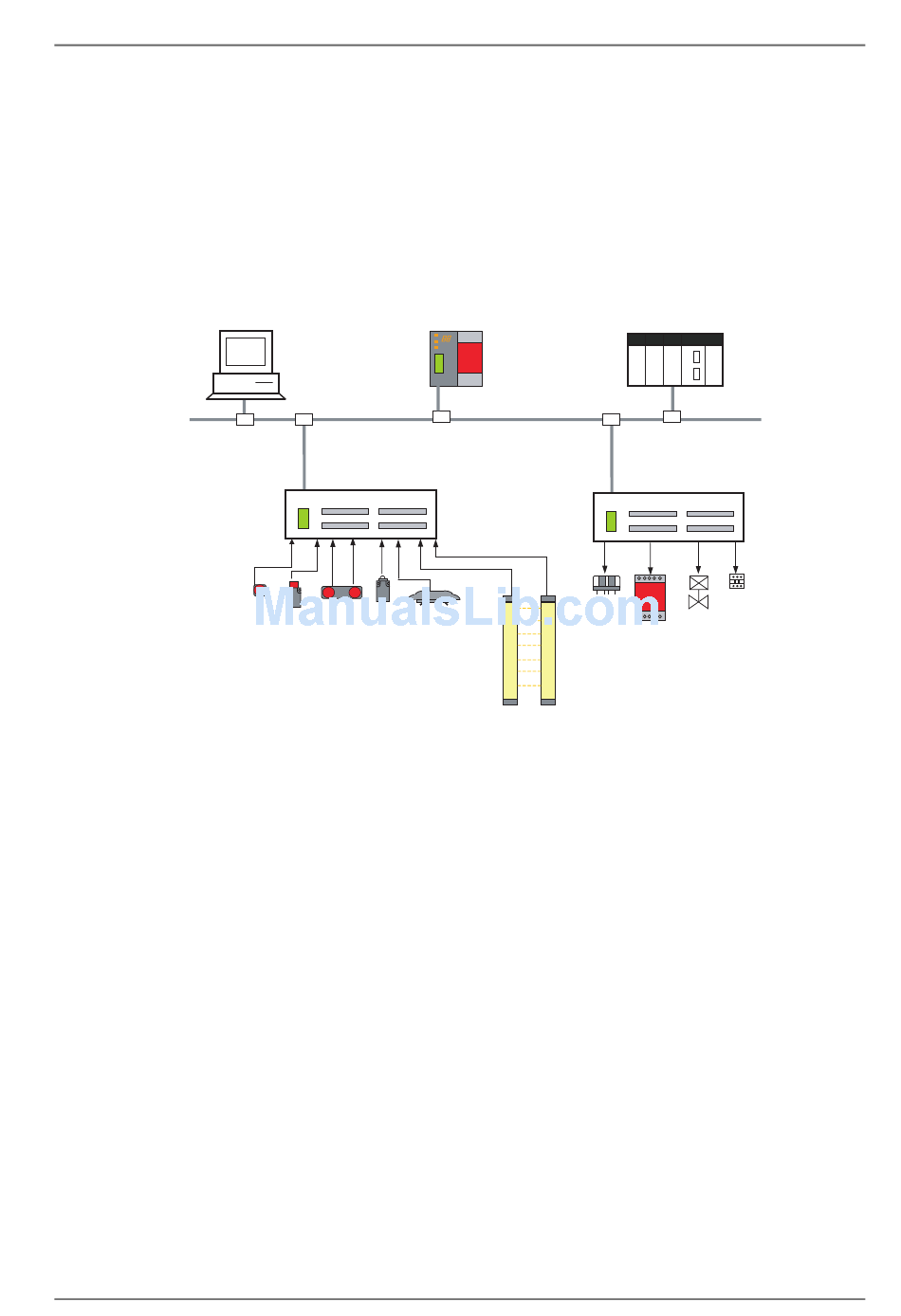

1-3 Safety I/O Terminal Overview

Network Configurator
DeviceNet
Two-hand switch
Enable switch
Safety gate switch
Safety limit switch
Safety Network Controller
DST1-series
Safety I/O Terminal
Safety relay
Safety Relay Unit
Safety Light Curtain
Standard PLC
DeviceNet Master Unit
Contactor
Valve
